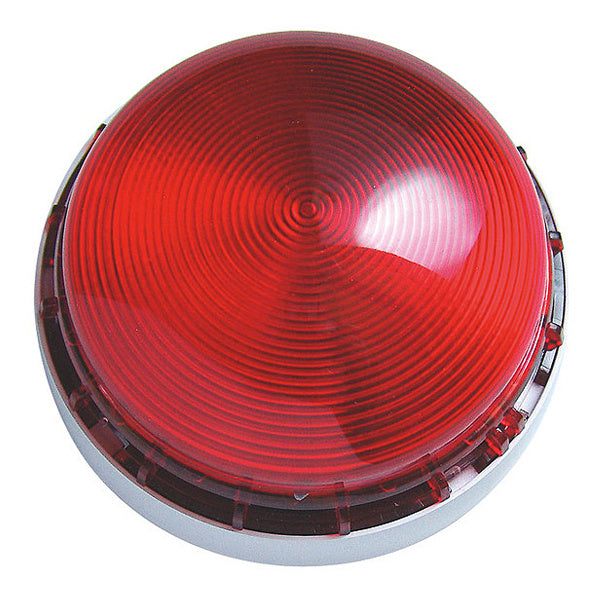

The Fike Twinflex Flashpoint Domed (302-0022) is a combined sounder and LED visual indication beacon for Fike's Twinflex 2-wire fire alarm system. It wires onto the same zone as Twinflex Multipoint detectors and other Twinflex devices, so you don't need a separate sounder circuit.
Key features
- Combined sounder and LED beacon in a domed housing
- 90 dB output with three sound patterns, plus a beacon-only setting
- High/low volume set by DIL switch
- Built-in end-of-line, enabled by DIL switch
- Mixes on the same zone as other Twinflex devices
- Supplied with mounting base
Technical specifications
- Sounder output: 90+ dB(A) high, 65+ dB(A) low
- Sound patterns: dual-tone UK evacuate (800/970 Hz), slow whoop (500–1200 Hz), dual-tone French warble (440/550 Hz), or beacon only
- Voltage: 25.5 to 35 V DC (mains-powered panel); 20 to 26 V DC (battery-powered panel)
- Current: 223 µA quiescent; 23.5 mA sounder high; 15 mA sounder low; 5.5 mA beacon
- Beacon: 1 s period, 15 ms flash
- Diameter: 105 mm; depth 62 mm
- Operating temperature: -10°C to +50°C
- Flammability: UL94-V2; IP21C
- Standard: EN 54-3
- Not compatible with the Twinflex SRP panel
