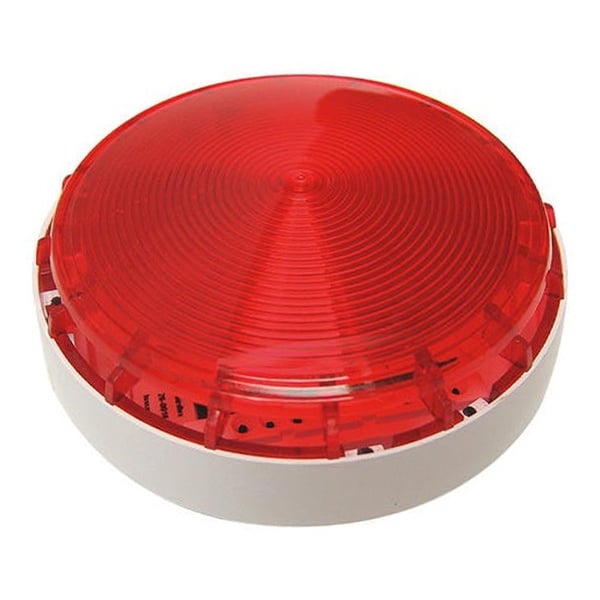

Fike Twinflex Flash Point Sounder/Beacon (Low Profile) (302-0012)

The Fike Twinflex Flashpoint Low Profile (302-0012) is a combined sounder and LED beacon for Fike's Twinflex 2-wire fire alarm system. It wires onto the same zone as Twinflex Multipoint detectors and other Twinflex devices, so no separate sounder circuit is needed.

Key features

• Low profile combined sounder and LED beacon
• 90dB(A) output with three sound patterns, plus a beacon only setting
• High or low volume set by DIL switch
• Built-in end of line, enabled by DIL switch
• Mixes on the same zone as other Twinflex devices
• Supplied with mounting base

Technical specifications

• Part number: 302-0012
• Sounder output: 90+ dB(A) high, 65+ dB(A) low
• Sound patterns: dual tone UK evacuate (800/970Hz), slow whoop (500 to 1200Hz), dual tone French warble (440/550Hz), or beacon only
• Voltage: 25.5 to 35V DC (mains powered panel); 20 to 26V DC (battery powered panel)
• Current: 223µA quiescent; 23.5mA sounder high; 15mA sounder low; 5.5mA beacon
• Beacon: 1 second period, 15ms flash
• Dimensions: 105mm diameter, 45mm deep
• Operating temperature: -10°C to +50°C
• Flammability: UL94-V2; IP21C
• Standard: EN 54-3

Note: not compatible with the Twinflex SRP panel.
