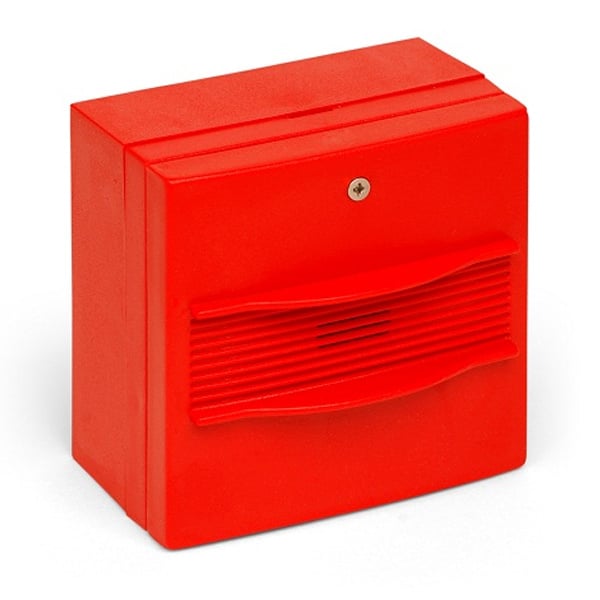

The Fike Twinflex Soundpoint (313-0021) is a red 2-wire, zone-powered wall sounder for Fike Twinflex fire alarm systems.
It gives audible indication when the system goes into alarm and can be mixed on the same zone as Twinflex multipoint detectors and other Twinflex devices.
Key features
- Zone-powered sounder for Twinflex 2-wire systems
- DIL switch selection of sound level (high/low) and pattern: dual tone UK evacuate, slow whoop or dual tone French warble
- Built-in end-of-line function, enabled by DIL switch on the last device
- Surface mounting on its back box, or flush mounting on a standard single-gang box with the optional adaptor plate
- Also available in white (313-0022)
Technical specifications
- Part number: 313-0021 (red)
- Standard: EN 54-3
- Dimensions: 89 x 89 mm; surface depth 62 mm; flush protrusion 34 mm (flush box minimum depth 47 mm)
- Sound output: high 85+ dB(A); low 65+ dB(A)
- Voltage: 25.5 to 35 V DC (mains-powered panel); 20 to 26 V DC (battery-powered panel)
- Current: quiescent 185 µA; alarm high 14.5 mA, low 12.6 mA
- Loading: high 2.5 SLU / 14.5 DLU; low 2.0 SLU / 13.0 DLU (V3 / Pro and Pro² panels)
- Operating temperature: -10°C to +50°C
- IP rating: IP21C
- Flammability: UL94-V2
- Cable: 2-core 1.5 mm² screened fire-resistant, radial circuit
