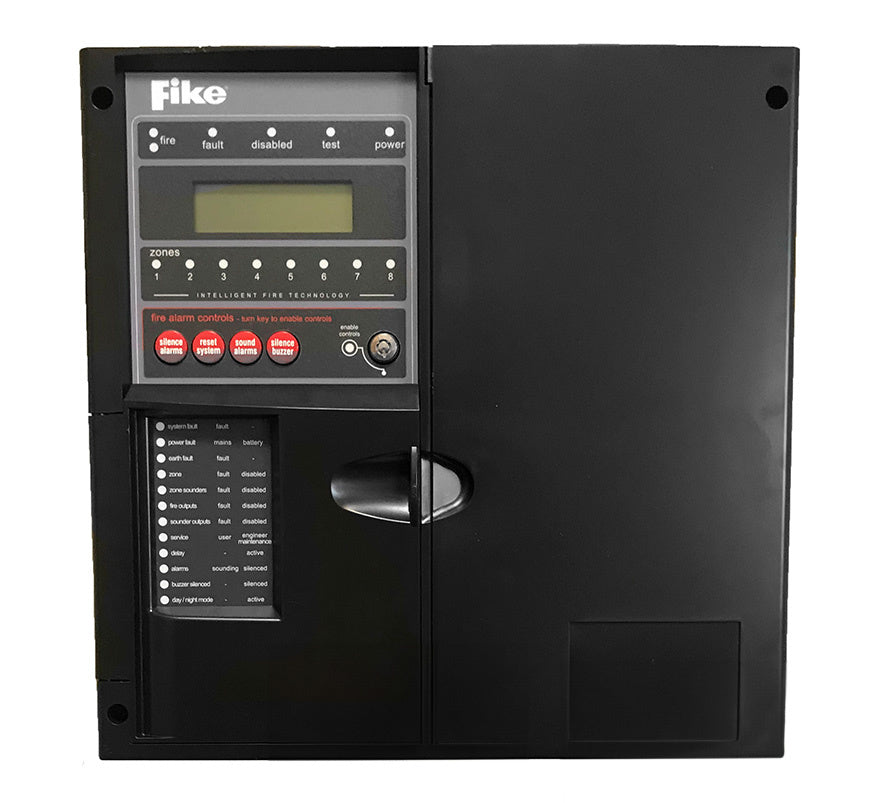

The Fike TwinflexPro² 8 zone fire alarm control panel (505-0008-B) in a black housing is the control panel for the Fike Twinflex intelligent 2-wire fire alarm system. The system uses a conventional cabling format but is classed as analogue non-addressable, and allows detectors and sounders to be connected on the same pair of wires, making it well suited to smaller applications such as shops, offices, schools, nursing homes, B&Bs, museums and restaurants. The 4 and 8 zone panels can also be fitted with the optional conventional zone card to accept conventional devices on zones 5 to 8.
Key features
- Intelligent 2-wire system: detectors, call points and sounders share one 2-core screened cable per zone
- Up to 32 Twinflex devices per zone
- Identifies and displays whether an alarm came from a smoke detector, heat detector or manual call point
- Monitors each zone for detector head removal, device fault, end-of-line fault and open or short circuit
- 4 line x 20 character LCD display
- Checkpoint alarm confirmation to reduce false alarms; operating a call point overrides any delays or confirmation
- Day/night detection mode per zone and 3 enhanced test modes
- 500 event log
- 2 monitored outputs configurable as conventional sounder circuits or 24V monitored relay circuits
- Volt-free common fire and common fault relays
- Two multifunction latching/non-latching inputs and one monitored programmable input (e.g. class change, remote fire)
- Dual-purpose flush or surface housing
- Programmable from the keypad or with TwinflexPro OSP PC software
- LPCB approved
Technical specifications
-
Zones: 8
-
Devices per zone: Up to 32 (up to 160 DLUs per zone)
-
Device protocol: Twinflex V3 and TwinflexPro²
-
Mains supply: 230V AC nominal, 700mA
-
PSU output: 2.1A (4 hour continuous)
-
Operating voltage: 24V DC nominal (21-31V DC)
-
Batteries: 2 x 12V 3.2Ah sealed lead acid (not included), for up to 48 hours standby; 72 hours with the optional battery box and 2 x 12V 7Ah batteries
-
Auxiliary supply: 250mA max
-
Relays: Common fire and common fault, volt-free SPCO, 1A 30V max
-
Cable: 2-core 1.5mm² screened fire-rated, up to 500m per zone
-
Dimensions: 331 x 331 x 99mm
-
Weight (excluding batteries): 2.36kg
-
Housing: V0 rated ABS, IP30, black
-
Cable entry: 13 x 20mm knockouts and 1 x 50 x 50mm pull-out tab
-
Operating temperature: 5°C to 40°C
-
Standards: BS EN 54-2 and BS EN 54-4
