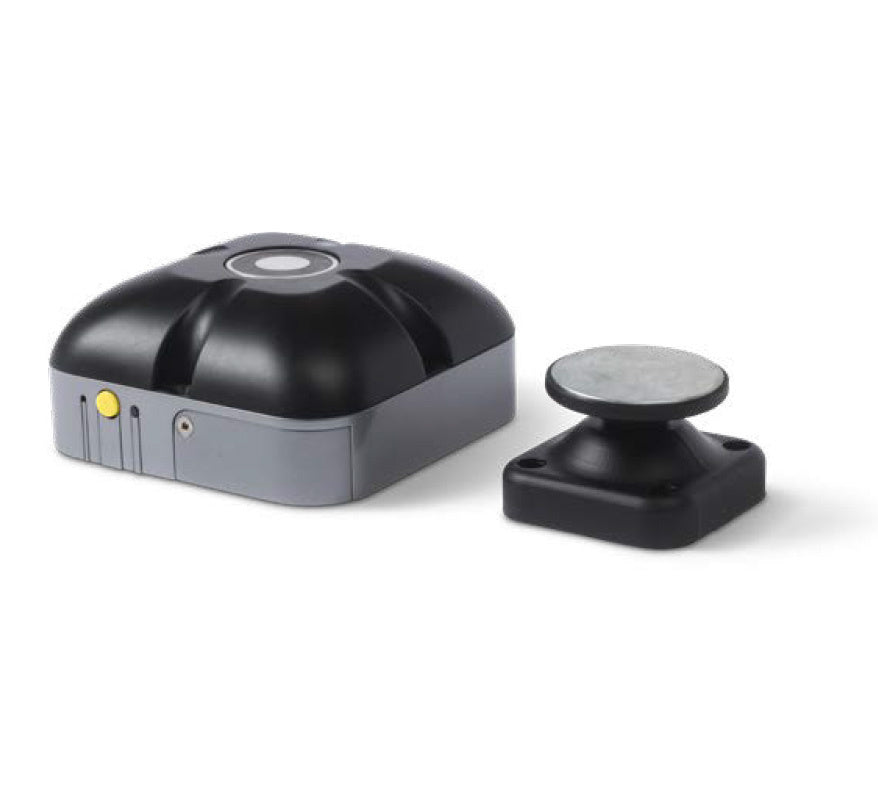

The Fireco DorMag SmartSound (843-4317) is a wireless, battery-powered fire door magnet that legally holds fire doors open and releases them to close when the fire alarm sounds. The unit mounts on the wall with a keeper plate on the door, so there is no hard wiring. It is a compact, discreet option that is particularly suited to uneven floors and carpeted areas.
Key features
- Advanced SmartSound sound recognition for accurate alarm detection (may not suit mechanical bells)
- Magnetic hold and release; smooth, effortless operation
- Wall-mounted unit with door keeper; keeper chain and floor bracket available for flexible fitting
- Battery powered, no hard wiring; easy retrofit
- Audible warning
- Standard (category B) installations under BS 7273-4:2015+A1:2021; CE and UKCA marked
- 2-year warranty
Technical specifications
- Power: 4.5V lithium iron disulfide (Li/FeS2) battery pack
- Maximum door size: power size 5 (100kg, 1250mm wide)
- Fire rating: tested to EN 1634-1 on FD30 doorsets
- Compliant to: EN 1155:1997+A1:2002, EN 1634-1:2008, EMC and Radio Equipment Directives, UN 38.3
- Maximum door-to-wall depth: 95mm (keeper chain or floor bracket needed for greater distances)
- Door-to-wall angle when open: ±25° from parallel
- Unit dimensions: 111 x 111 x 53mm; door keeper: 61 x 61 x 42.5mm
- Weight: 0.52kg
- Colour: black with silver band; casing ABS / ABS+PC
