Product details

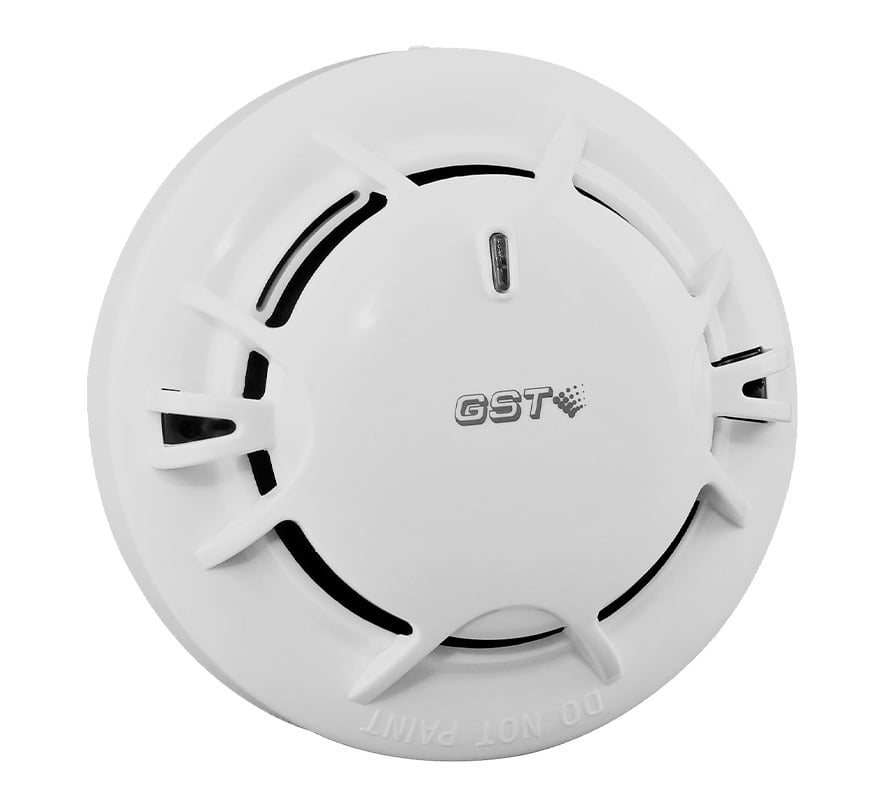

The GST DC-9101E is a conventional multisensor detector combining photoelectric smoke detection with fixed temperature and rate-of-rise heat detection. Using both sensors widens the range of fires it can detect, including black smoke with small particles and alcohol fires.
Key features
- Combined optical smoke and heat sensing in one head
- Drift compensation and dirty chamber checking
- Self-diagnostic with reed switch test
- 2 programmable smoke sensitivity levels via the GST P-9910B programmer
- 360 degree fire LED and remote indicator output
- Smoke part to EN 54-7 (level 1), heat part to EN 54-5, class A2R

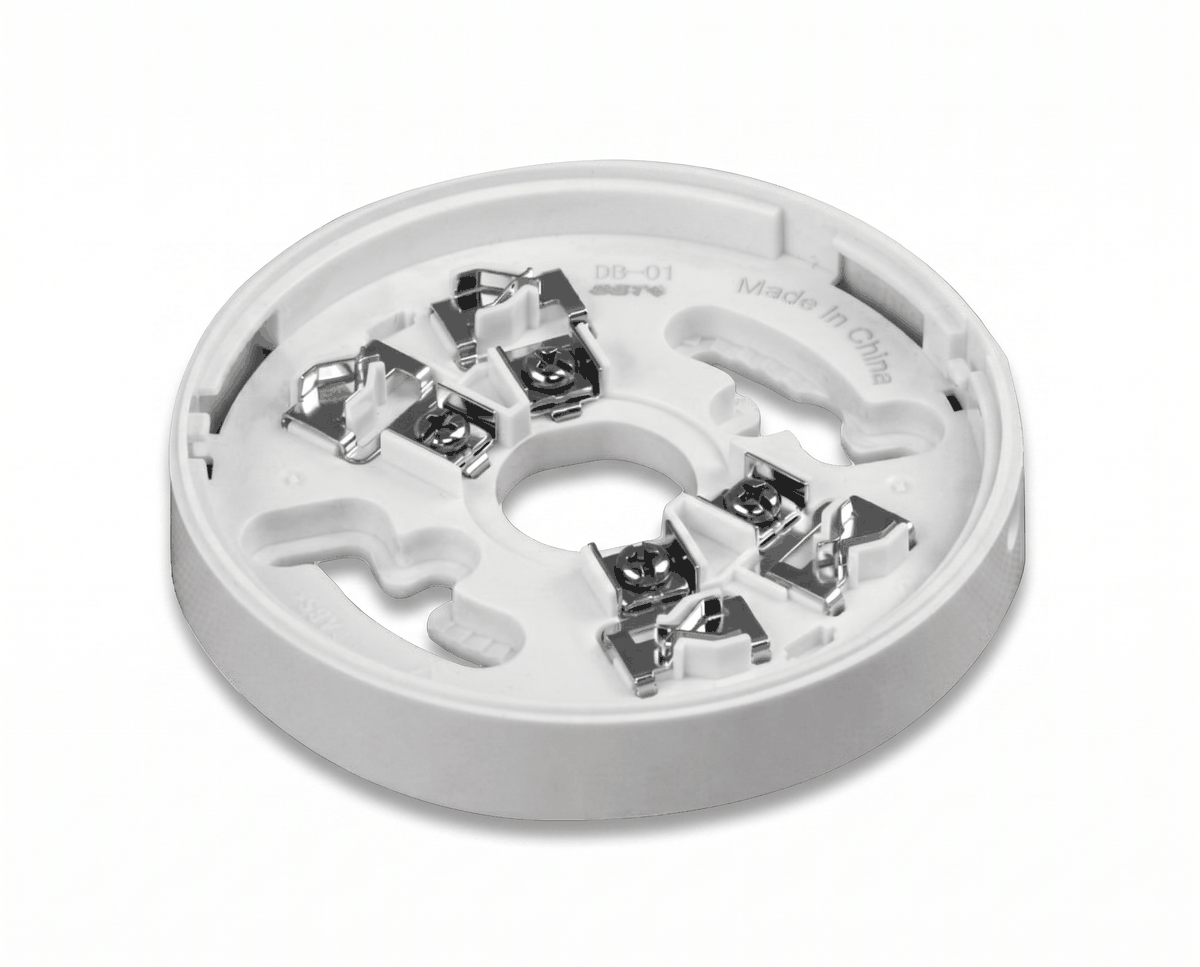

- Fits the DB-01 base, or DB-01D diode base with the DP-9907 active end-of-line unit
Specification
| Product code | DC-9101E |
|---|---|
| Brand | GST |
| Operating voltage | 16 to 28VDC (24VDC typical) |
| Current | 60uA standby, 55mA alarm |
| Heat class | A2R, 62C |
| IP rating | IP2X |
| Operating temperature | -10 to +50C, 95% RH non-condensing |
| Dimensions | 100mm dia. x 54.5mm (with base) |
| Material | ABS |
| Standards | EN 54-5, EN 54-7, LPCB |
| Compatible panels | GST102A to GST116A, I-9319 zone monitor |
