GST Conventional Sounder (C-9404)
£16.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Two selectable alarm tones, set by an internal jumper (Tone 1 is the factory default)
- Minimum sound level of 95 dB at 1 metre on both tones
- Approved to EN 54-3 and LPCB certified
- Polarity-sensitive 24V DC connection; 1.5mm2 or larger fire cable recommended, subject to local codes
- Available with a shallow or deep base (C-94DB deep base listed as an accessory)
- Red ABS enclosure
Frequently bought together
GST
GST Conventional Sounder Beacon (C-9403)
Sale price£24.40
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST DC9000 / DI9000 Series Conventional Remote Indicator (C-9314P)
Sale price£5.15
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Deep Base for Notification Devices I-9403, I-9404 for Surface Cable Entry (C-94DB)
Sale price£6.70
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

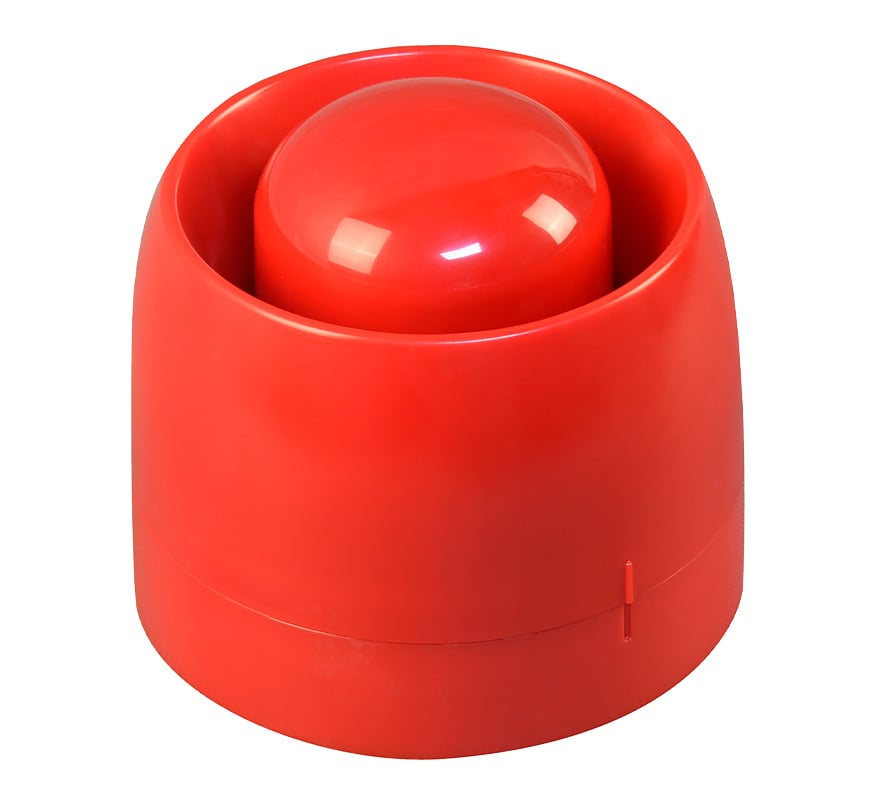

The GST C-9404 is a conventional fire alarm sounder that produces a loud audible alarm to warn occupants to evacuate a building in the event of fire. It is designed for indoor use on GST conventional fire alarm systems.
Key features
- Two selectable alarm tones, set by an internal jumper (Tone 1 is the factory default)
- Minimum sound level of 95 dB at 1 metre on both tones
- Approved to EN 54-3 and LPCB certified
- Polarity-sensitive 24V DC connection; 1.5mm2 or larger fire cable recommended, subject to local codes
- Available with a shallow or deep base (C-94DB deep base listed as an accessory)
- Red ABS enclosure
Specification
| Product code | C-9404 |
|---|---|
| Brand | GST |
| Operating voltage | 24V DC (20-28V) |
| Operating current | 35mA |
| Power consumption | 0.84W |
| Tones | 2800Hz 0.34s off/0.4s on; 2400-2900Hz sweep at 3Hz |
| Ingress protection | IP33C, Type A (indoor) |
| Operating temperature | -10 to +50 deg C |
| Relative humidity | 95%, non-condensing |
| Dimensions (D x H) | 110 x 110.4mm (deep base); 110 x 95.9mm (shallow base) |
| Mounting hole spacing | 55-80mm |
| Weight | Approx. 355g (deep base); approx. 327g (shallow base) |
| Approvals | EN 54-3, LPCB |
| Compatibility | GST102A and GST116A conventional panels; I-9301 and DI-9305E output modules |
