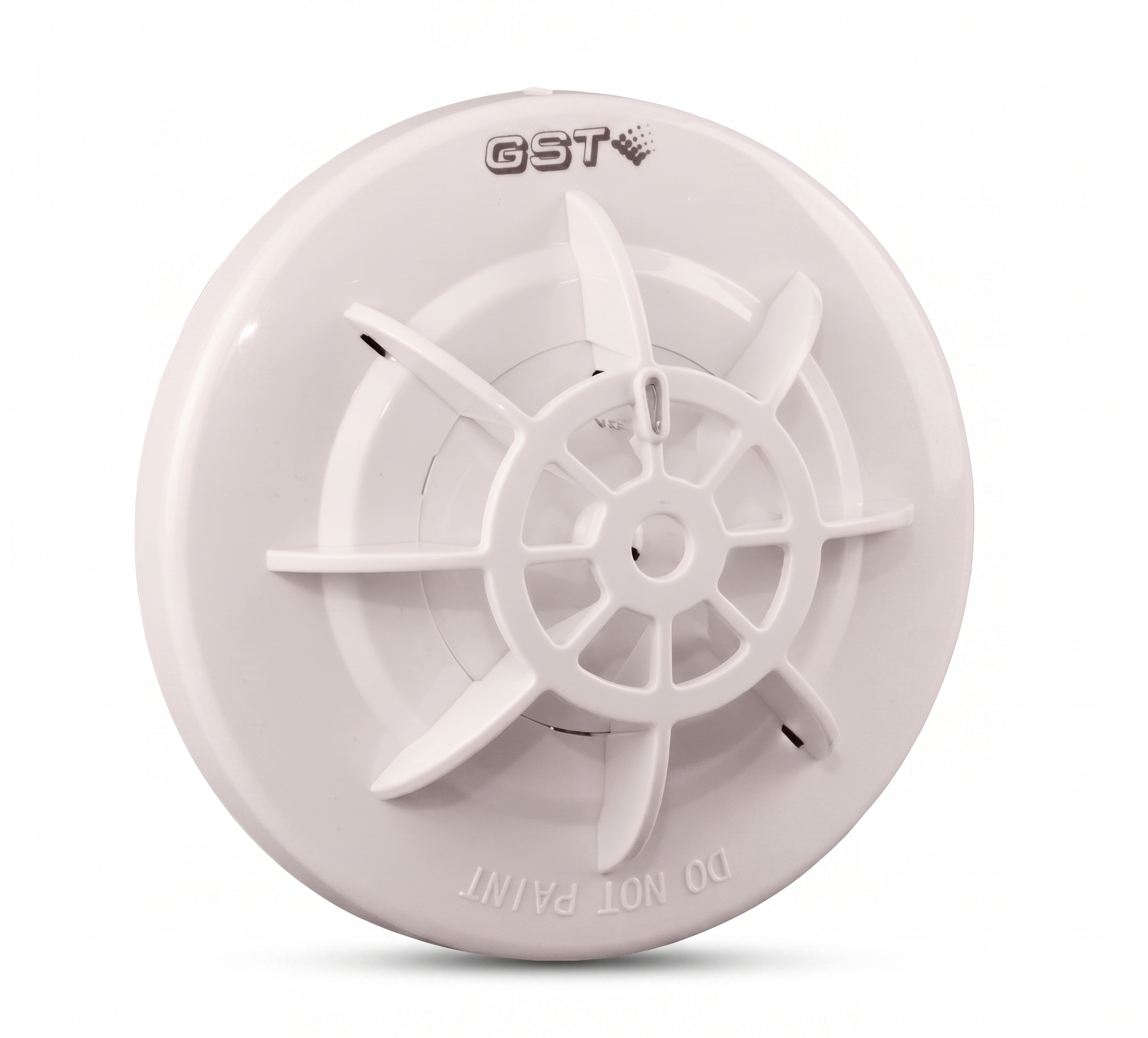

GST DI-9103E Intelligent Fixed/Rate-of-Rise Heat Detector
£18.80
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Rate-of-rise and fixed-temperature heat detection
- Three programmable classes: A1R, A2S and BS
- Electronically addressed and set with the P-9910B programmer
- Self-diagnostics and reed switch test
- Fire LED with 360° viewing; polling LED can be switched off
- Remote indicator output
Frequently bought together
Product details
The GST DI-9103E is an intelligent addressable heat detector with rate-of-rise and fixed-temperature detection. It connects to the loop of GST addressable panels such as the GST100, GST200N, GST-IFP4E and GST-IFP8, and is LPCB approved to EN 54-5. It is supplied without a base.
Key features
- Rate-of-rise and fixed-temperature heat detection
- Three programmable classes: A1R, A2S and BS
- Electronically addressed and set with the P-9910B programmer
- Self-diagnostics and reed switch test
- Fire LED with 360° viewing; polling LED can be switched off
- Remote indicator output
- Supplied without base; fits the GST DB-01 standard base
Technical specifications
- Part number: DI-9103E
- Operating voltage: loop 24V (16–28V)
- Standby current: 0.6mA or less
- Alarm current: 1.5mA or less (3.5mA with remote indicator)
- Address range: 1–242
- Typical fixed temperature: class A1 58°C, A2 62°C, B 77°C
- Operating temperature: -10°C to +50°C (A1, A2), -10°C to +65°C (B)
- Relative humidity: up to 95%, non-condensing
- Ingress protection: IP2X, indoor use only
- Dimensions: 100mm diameter x 53.3mm (with base)
- Weight: approx. 110g
- Standard: EN 54-5; LPCB certified
