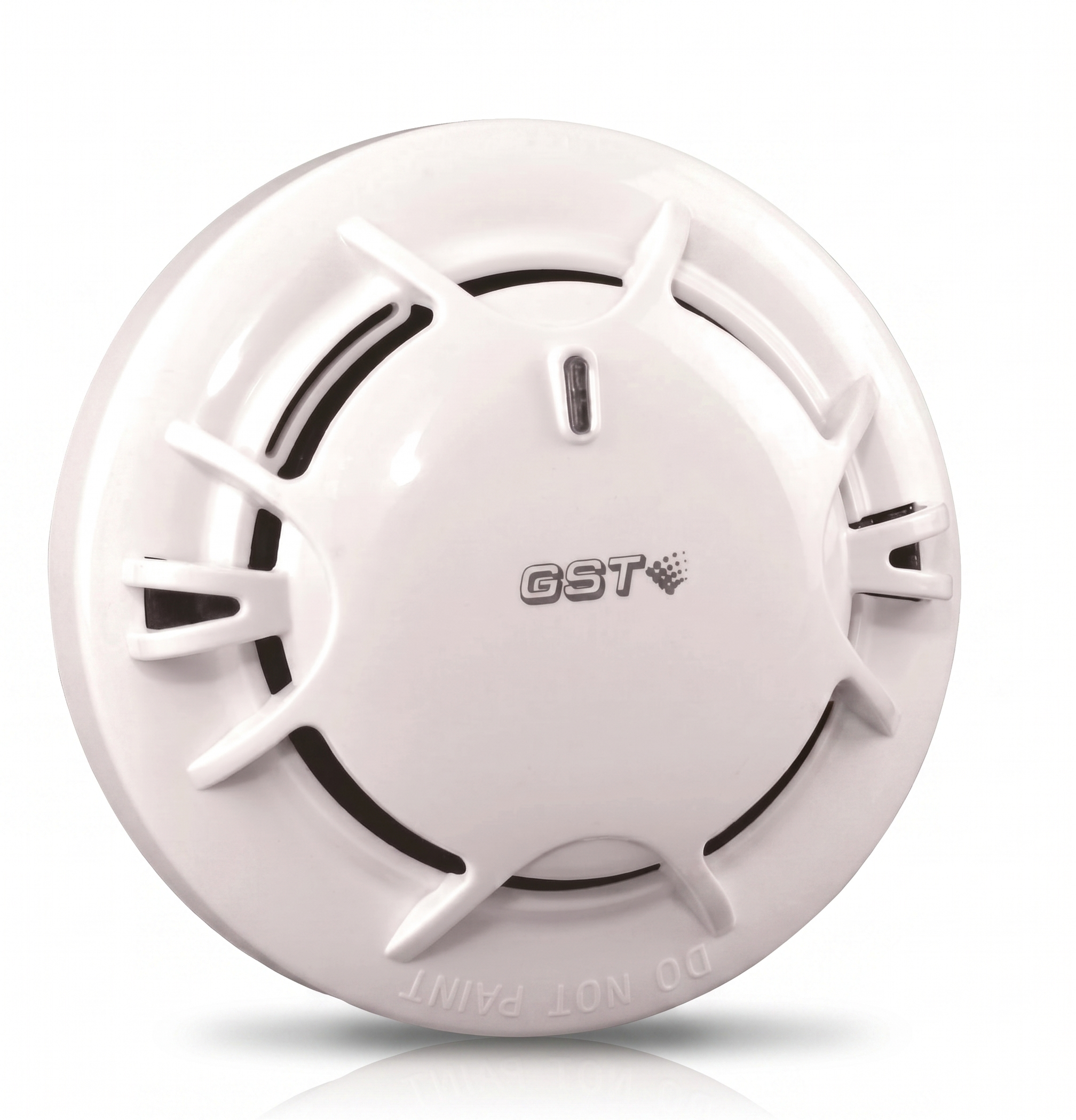

GST DI-9101E Intelligent Optical/Heat Multi-Sensor

The GST DI-9101E is an intelligent addressable multi-sensor detector combining photoelectric smoke detection with fixed-temperature and rate-of-rise heat detection. It works on the loop of GST addressable panels such as the GST100, GST200N, GST-IFP4E and GST-IFP8, and is LPCB approved to EN 54-7 and EN 54-5.

Key features

• Combined optical smoke and heat sensing for a wider range of fires
• Electronically addressed and set with the P-9910B programmer
• Two smoke sensitivity levels (level 1 complies with EN 54-7)
• Drift compensation, self-diagnostics and dirty chamber checking
• Reed switch test
• Fire LED with 360° viewing; polling LED can be switched off
• Remote indicator output
• Mounts on the GST DB-01 standard base (listed as a separate accessory)

Technical specifications

• Part number: DI-9101E
• Operating voltage: loop 24V (16–28V)
• Standby current: 0.8mA or less
• Alarm current: 1.8mA or less (3.8mA with remote indicator)
• Address range: 1–242
• Wiring: non-polarised 2-core loop; polarised 2-core for remote indicator
• Smoke sensitivity: level 1 0.084–0.162dB/m, level 2 0.101–0.220dB/m
• Heat class: A2R, 62°C
• Operating temperature: -10°C to 50°C
• Relative humidity: up to 95%, non-condensing
• Ingress protection: IP2X, indoor use only
• Dimensions: 100mm diameter x 54.5mm (with base)
• Weight: approx. 110g
• Standards: EN 54-5, EN 54-7; LPCB certified
