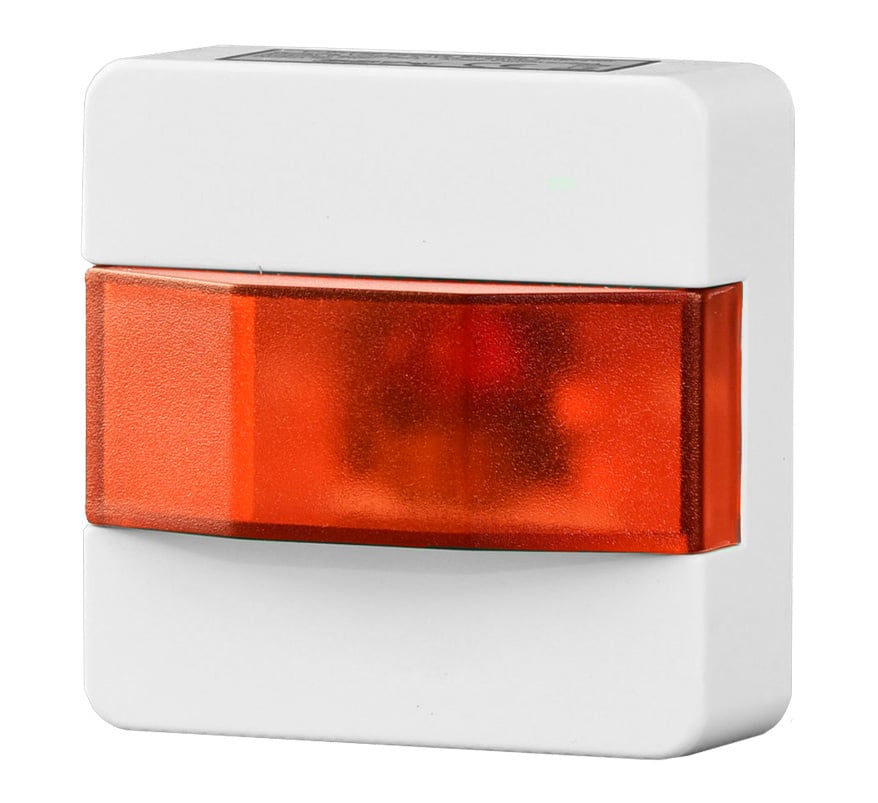

The GST C-9314P is a passive remote indicator that repeats the alarm LED of a GST detector in a visible place. It is used where the detector is out of sight or hard to reach, for example above a false ceiling, under a raised floor or in a hazardous area, and works with both GST conventional (DC-910xE) and addressable (DI-910xE) detectors.
Key features
- Red LED is off in normal monitoring and lights when the detector alarms
- Powered directly from the detector's remote indicator output
- Built-in current-limiting resistor
- Surface mounting, or flush mounting on a back box with the BP-9314P back plate
Technical specifications
- Part number: C-9314P (product no. 10102339)
- Operating voltage: 2.0–3.0V DC
- Standby current: 0mA
- Action current: 30mA or less
- Operating temperature: 0°C to +37.8°C
- Relative humidity: up to 85%, non-condensing
- Enclosure: white ABS (RAL 9016)
- Dimensions: 64.5 x 64.5 x 31.4mm
- Compatible detectors: C-9101, C-9102, C-9103, DC-9101E, DC-9102E, DC-9103E, I-9101, I-9102, I-9103, DI-9101E, DI-9102E, DI-9103E and M-series equivalents
