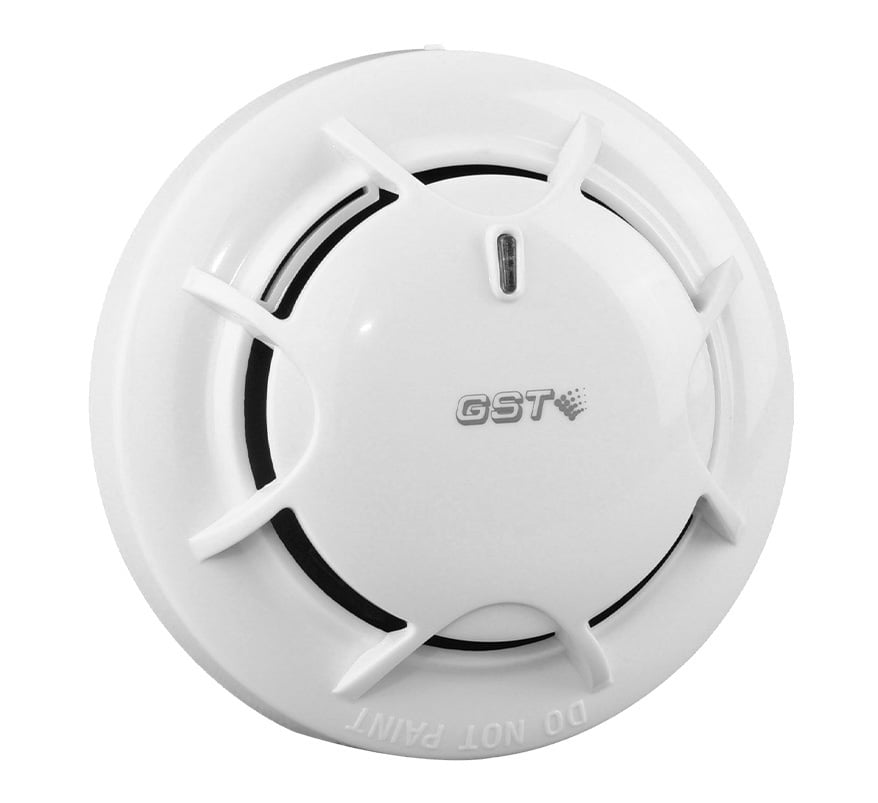

GST Conventional Optical Smoke Detector (DC-9102E)
£11.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Drift compensation for stable performance as the chamber collects dust
- Self-diagnostic with chamber contamination checking
- Local test by reed switch
- 2 programmable sensitivity levels via the GST P-9910B programmer
- 360 degree LED visibility and remote indicator output
- Removable sensing chamber for easier maintenance
Frequently bought together
GST
GST Conventional Optical/Heat Multisensor Detector (DC-9101E)
Sale price£14.00
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Conventional Point Detector Base with Diode (DB-01D)
Sale price£6.10
Out of stock. Lead time 2 to 6 weeks, estimate only
GST
GST Conventional Sounder Beacon (C-9403)
Sale price£24.40
Out of stock. Lead time 2 to 6 weeks, estimate only
Product details
The GST DC-9102E is a conventional photoelectric (optical) smoke detector for general use in offices, hotels, schools, banks, warehouses, libraries and similar buildings. It works with GST A series conventional panels and the GST I-9319 zone monitor.
Key features
- Drift compensation for stable performance as the chamber collects dust
- Self-diagnostic with chamber contamination checking
- Local test by reed switch
- 2 programmable sensitivity levels via the GST P-9910B programmer
- 360 degree LED visibility and remote indicator output
- Removable sensing chamber for easier maintenance
- Fits the DB-01 standard base, or DB-01D diode base for BS 5839 head-removal operation
Specification
| Product code | DC-9102E |
|---|---|
| Brand | GST |
| Operating voltage | 16 to 28VDC (24VDC typical) |
| Current | <60uA quiescent, 55mA alarm |
| IP rating | IP2X |
| Operating temperature | -10 to +50C |
| Dimensions | 100mm dia. x 54.5mm (with base) |
| Material / colour | ABS, white |
| Standards | EN 54-7, LPCB |
