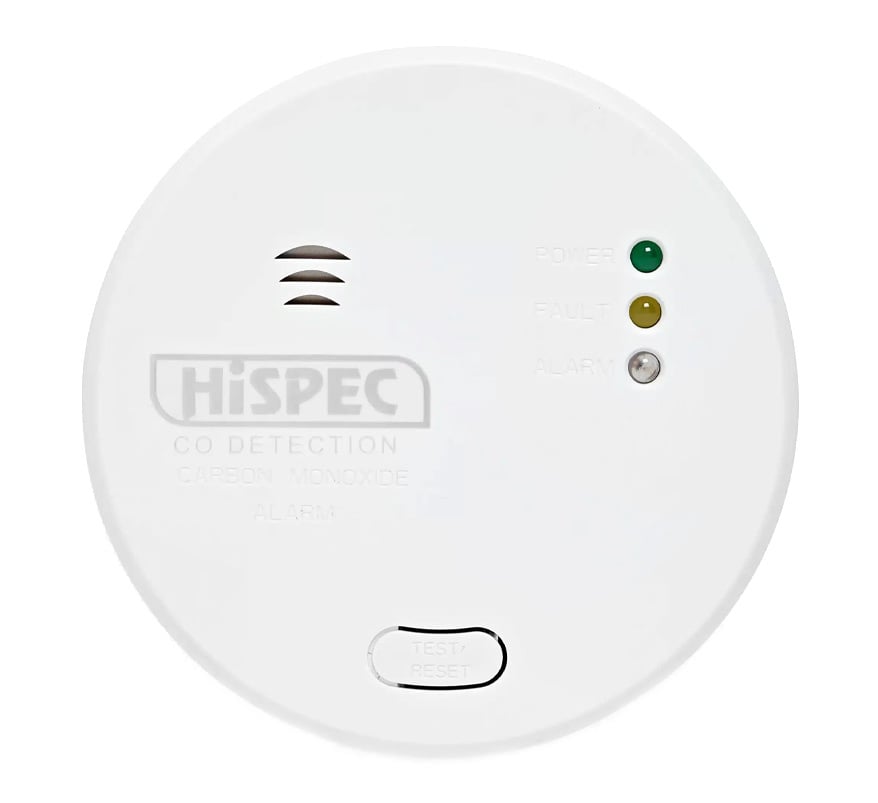

The Hispec HSSA/CO/FF10 is a 230V mains-powered carbon monoxide alarm with an electrochemical sensor and a 10-year rechargeable lithium back-up battery. It can be hard-wire interconnected with up to 20 compatible Hispec fire and CO alarms over a maximum of 150m, so all alarms sound when one is activated. Interconnected with Hispec strobe lights and remote indicators, directly or via a relay base, it can be used as a Type A apparatus. It is approved to BS EN 50291-1:2018.
Key features
- Electrochemical carbon monoxide sensor
- Hard-wire interconnect up to 20 devices over 150m
- 10-year rechargeable lithium battery back-up
- Can be used as a Type A apparatus with Hispec strobes and remote indicators
- Loud 85dB alarm
- Test and hush function
- A radio-interlink version is also available (HSSA/CO/RF10-PRO)
Technical specifications
- Product code: HSSA/CO/FF10
- Detection type: electrochemical CO
- CO alarm response: 50ppm (60–90 minutes), 100ppm (10–40 minutes), 300ppm (under 3 minutes)
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Power consumption: ≤40mA in alarm
- Maximum interconnection: 20 units; 150m maximum wired distance
- Alarm sound level: 85dB at 3m
- Humidity: 10% to 90% (non-condensing)
- Approvals: BS EN 50291-1:2018
- Installation standard: BS EN 50292:2023
