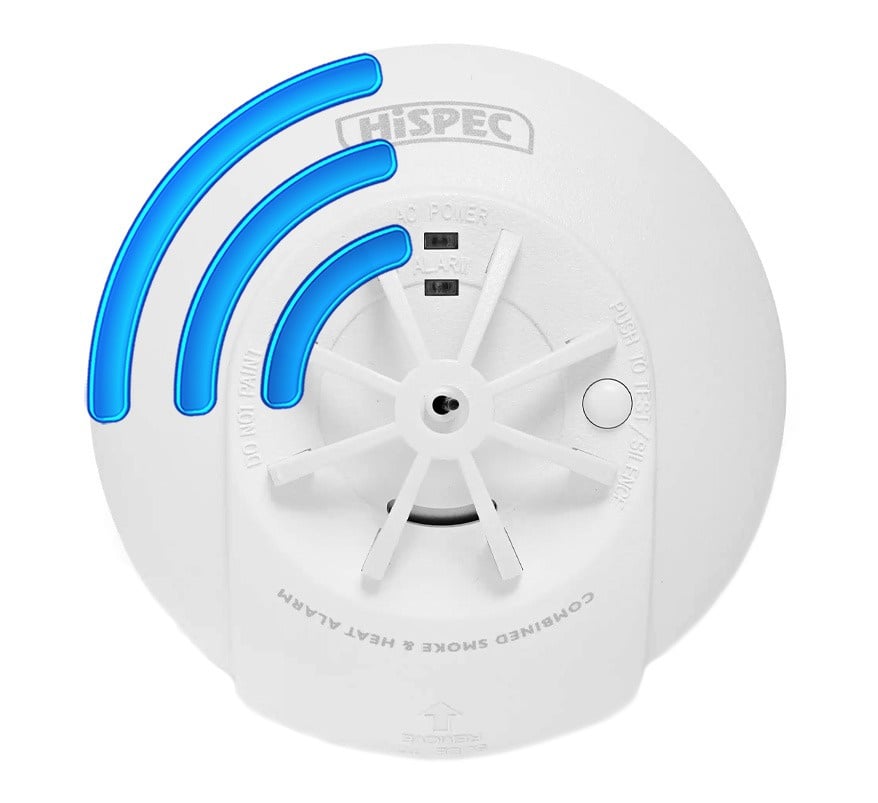

The Hispec RF PRO HSSA/PH/RF10-PRO is a 230V mains-powered multi-sensor alarm that combines an optical smoke chamber with a fixed 60°C heat sensor. It has a 10-year rechargeable lithium back-up battery and built-in 868MHz radio interlink, so it can be wirelessly interconnected with other Hispec RF PRO alarms, as well as hard-wire interconnected. It is supplied with a Fast Fix base and is suitable for open-plan living, kitchen and dining areas when installed on the living/dining side.
Key features
- Optical smoke and fixed heat sensors in one alarm
- Wirelessly interconnects with up to 20 Hispec RF PRO detectors
- Also hard-wire interconnectable (up to 20 units over 150m)
- 10-year rechargeable lithium battery back-up
- Fast Fix base included
- Loud 85dB alarm
- Test function and hush feature; insect-proof and tamper-proof
- Compatible with the Hispec RF PRO control unit (HSSA/CU/RF10-PRO)
Technical specifications
- Product code: HSSA/PH/RF10-PRO
- Detection type: optical smoke and fixed heat thermistor (Class A1), 60°C activation
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Power consumption: ≤40mA in alarm
- RF range: up to 80m in open areas, 30m indoors
- Maximum interconnection: 20 units wired or wireless; 150m maximum wired distance
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
- Weight: 158g
- Scheme rating: D1 (BS 5839-6:2019)
- Approvals: BS EN 14604:2005, BS 5446-2:2003
- Class II apparatus
- Guarantee: 5 years
