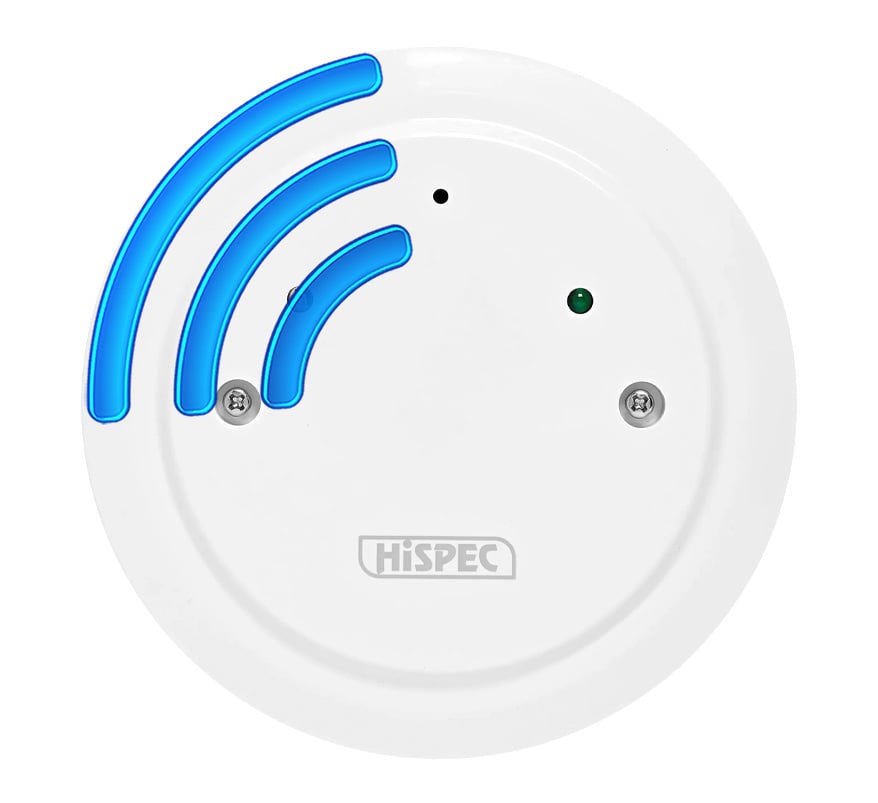

The Hispec HSSA/RB/RF10-PRO is a 230V mains-powered relay base that switches a relay when it receives a wireless or wired alarm signal from a compatible Hispec RF10-PRO smoke, heat or CO alarm. The electrically isolated relay contacts can be used for signalling and activating auxiliary devices such as flashing beacons, warden call systems, fire panel inputs or boiler shut-off. It has rechargeable sealed back-up cells and can be mounted on its own or underneath a Hispec Fast Fix alarm base.
Key features
- Switches a volt-free relay (NO/NC/COM) on a wireless or wired alarm signal
- Works with Hispec RF10-PRO smoke, heat and CO alarms
- Continuous (default) or pulse relay operation, selected by a pin cap; pulse mode suits warden call systems
- 868MHz wireless interconnection with up to 20 RF devices
- Hardwired interconnection with up to 40 devices
- Sealed rechargeable lithium back-up cells
- LED status indication for mains power, low battery and RF pairing mode
Technical specifications
- Product code: HSSA/RB/RF10-PRO
- Supply voltage: 230V AC
- Back-up battery: 3V rechargeable lithium (sealed)
- Power consumption: 0.8W standby
- Relay rating: 250V AC 5A / 30V DC 5A, continuous or pulse mode
- RF interconnection: 868MHz, maximum 20 devices
- RF range: 30m indoors, 80m open space
- Hardwired interconnection: maximum 40 devices over 150m
- Operating/storage temperature: -10°C to 40°C
- Operating/storage humidity: 15% to 95% RH
- LED indicators: solid green = mains power present; flashing red = low battery; solid red = RF pairing mode
- Guarantee: 5 years
