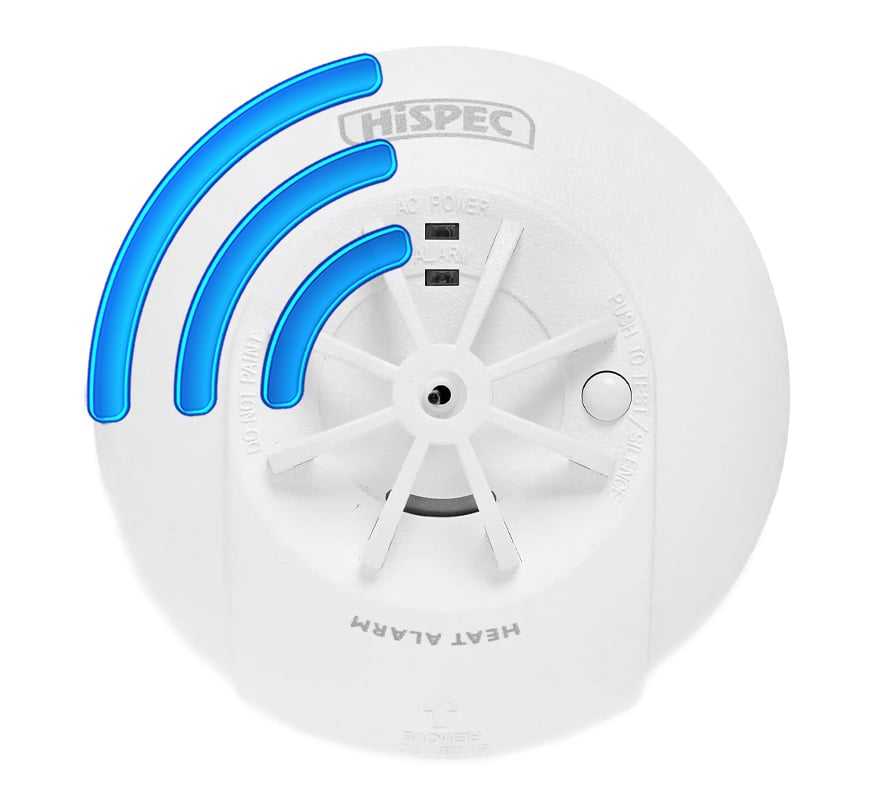

The Hispec RF PRO HSSA/HE/RF10-PRO is a 230V mains-powered heat alarm with a 10-year rechargeable lithium back-up battery and built-in 868MHz radio interlink. It alarms at a fixed 60°C, making it suitable for kitchens, garages, boiler rooms, attics and other areas where fumes, steam or dust would cause nuisance alarms from a smoke alarm. It can be wirelessly interconnected with other Hispec RF PRO alarms, or hard-wire interconnected, and is supplied with a Fast Fix base.
Key features
- Wirelessly interconnects up to 20 Hispec RF PRO detectors
- Also hard-wire interconnectable (up to 20 units over 150m)
- Fixed 60°C heat detection (Class A1 thermistor)
- 10-year rechargeable lithium battery back-up
- Fast Fix base included
- Loud 85dB alarm
- Test and hush function; insect-proof and tamper-proof
- Compatible with the Hispec RF PRO control unit (HSSA/CU/RF10-PRO)
Technical specifications
- Product code: HSSA/HE/RF10-PRO
- Detection type: fixed heat thermistor, Class A1, 60°C activation
- Power source: 220–240V AC, 50–60Hz
- Battery back-up: 3V rechargeable lithium battery, 10-year life
- Power consumption: ≤40mA in alarm
- Maximum interconnection: 20 units wired or wireless; 150m maximum wired distance
- RF range: up to 80m in open areas, 30m indoors
- Alarm sound level: 85dB at 3m
- Operating temperature: 0°C to 40°C
- Humidity: 10% to 90% (non-condensing)
- Scheme rating: D1 (BS 5839-6:2019)
- Approvals: BS 5446-2:2003
- Class II apparatus
- Guarantee: 5 years
