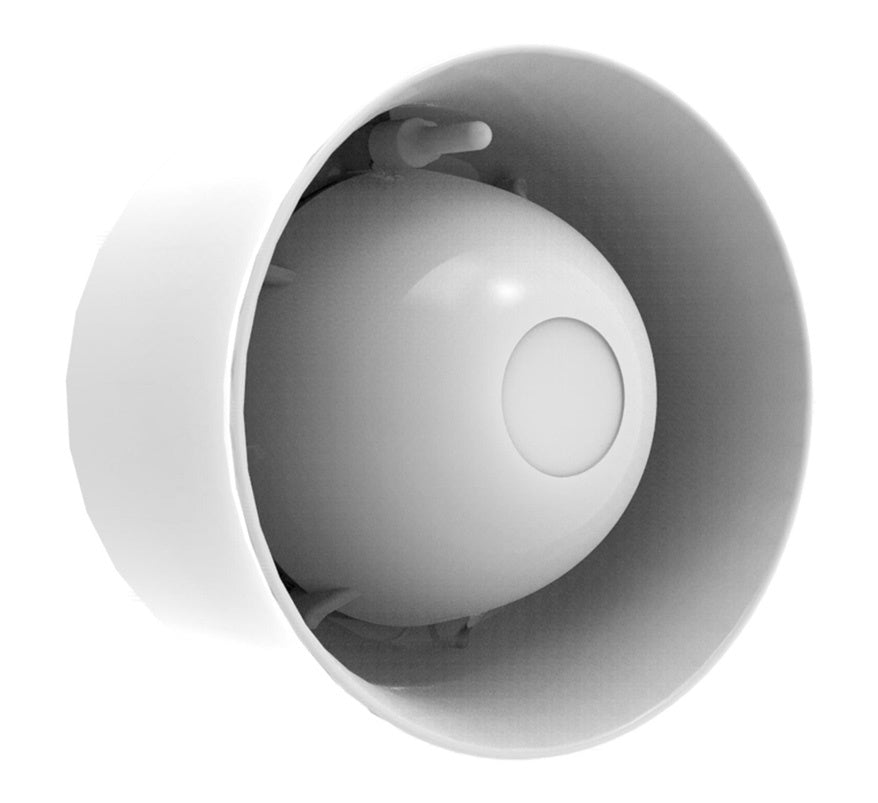

Hochiki CHQ-WS2(WHT) Addressable Wall Sounder - White Case

The Hochiki CHQ-WS2(WHT) is an addressable, loop-powered wall sounder in a white case for the Hochiki ESP analogue addressable system. It offers 51 tones and 8 volume levels with a maximum output of 102 dB(A) (±2 dB(A)) at low current consumption, and fits the Hochiki wall sounder standard base or isolator base (sold separately). It is rated IP21 for internal use and can be made weatherproof (IP65) with the Hochiki weatherproof kit. An auto-shutdown mode can silence the sounder after a set time (panel dependent).

Key features

• Loop powered, single loop address set with the hand-held programmer
• Variable sound output 90-102 dB(A) (±2 dB(A)) at 1 m
• 51 user-selectable tones (all EN 54-3 compatible)
• Fits Hochiki standard or isolator wall sounder base
• Weatherproof kit available
• Auto-shutdown mode (panel compatibility required)
• Approved by LPCB and VdS
• SIL2-approved variants available

Technical specifications

• Ordering code: CHQ-WS2(WHT) (white)
• Operating voltage: 17-41 V DC
• Quiescent current (typ.): 150 µA with sounder base, 200 µA with isolator base
• Sounding current (typ.): 2 mA (90 dB(A) at 1 m) to 8 mA (102 dB(A) at 1 m)
• Sound output at 1 m: 90-102 dB(A) (±2 dB(A)) at 24 V DC or above
• Number of tones: 51
• Tone frequency range: 300-2850 Hz
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +70 °C
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Ingress protection: IP21 (IP65 with weatherproof kit)
• Base fixing centres: 48-74 mm
• Colour / case material: white / PC-ABS
• Weight: 152 g
• Dimensions: Ø112 x 67 mm (D)
