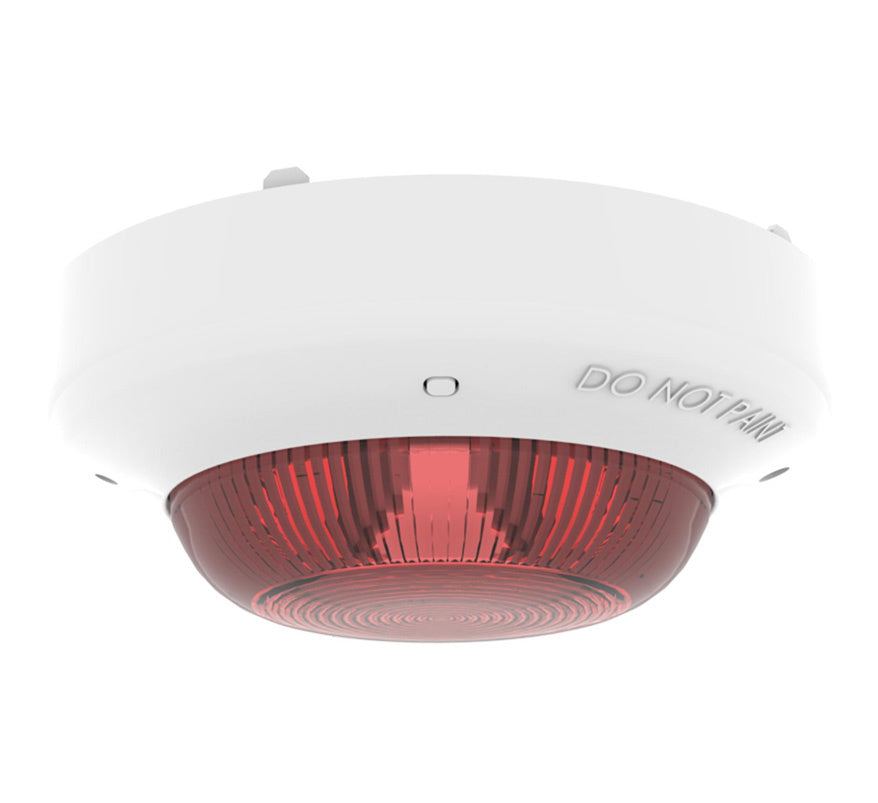

The Hochiki CLB-E(WHT) is a conventional beacon in a white case with a red lens, for use on 24 V sounder circuits. A Fresnel lens and high-intensity LEDs produce a highly visible flash, and the casing matches the Hochiki CDX conventional detector range in shape and colour. It fits the standard CDX base (YBN-R/6). It is not EN 54-23 compliant, so it should be used as a supplementary visual indicator rather than as an EN 54-23 visual alarm device.
Key features
- High-intensity LED technology with Fresnel lens
- Colour-matched to the ivory and white CDX detector and base ranges
- Fits the standard CDX base (YBN-R/6)
- For 24 V conventional sounder circuits
Technical specifications
- Ordering code: CLB-E(WHT)
- Operating voltage: 17-41 V DC
- Operating current: 4.3 mA typ. (5.0 mA max.)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Case colour / material: white / ABS
- Lens colour: transparent red
- Weight: 88 g
- Dimensions: Ø100 x 38 mm (46 mm with base)
- Base fixing centres: 48-74 mm
