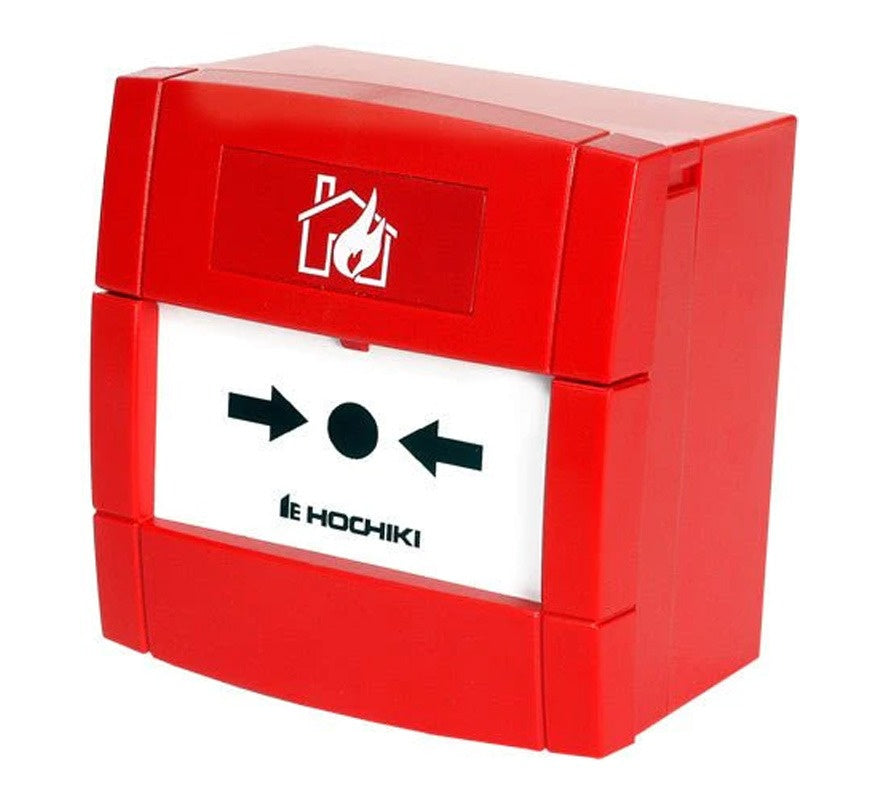

The Hochiki MCP1A is a red, marine-approved conventional manual call point based on the industry-standard KAC world series housing, with easy-to-install push-fit wiring terminals. It accepts either a frangible glass element or a non-frangible plastic element, and is supplied complete with the SR-BACKBOX for surface mounting. It suits conventional fire alarm systems on ships and other marine installations.
Key features
- Approved to EN 54-11:2001
- Accepts a frangible glass or non-frangible plastic element
- Push-fit terminals accept up to a 2.5 mm² solid conductor
- Supplied with SR-BACKBOX for surface mounting
- Approved by LPCB
- Approved for marine use by BRE
- Approved to MED, DNV and IEC 60092-504 requirements
- DNV Module B (type examination) and Module E (product quality assurance)
Technical specifications
- Ordering code: MCP1A
- Nominal operating resistance: 470 Ω
- Maximum contact resistance: 200 Ω
- Ingress protection: IP24
- Operating/storage temperature: -10 °C to +55 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Colour / case material: red / ABS
- Weight: 161 g
- Dimensions: 89 x 93 x 59.5 mm (W x H x D)
- Accessories: frangible element KAC/G/HE, non-frangible element KAC/EWS/HE
