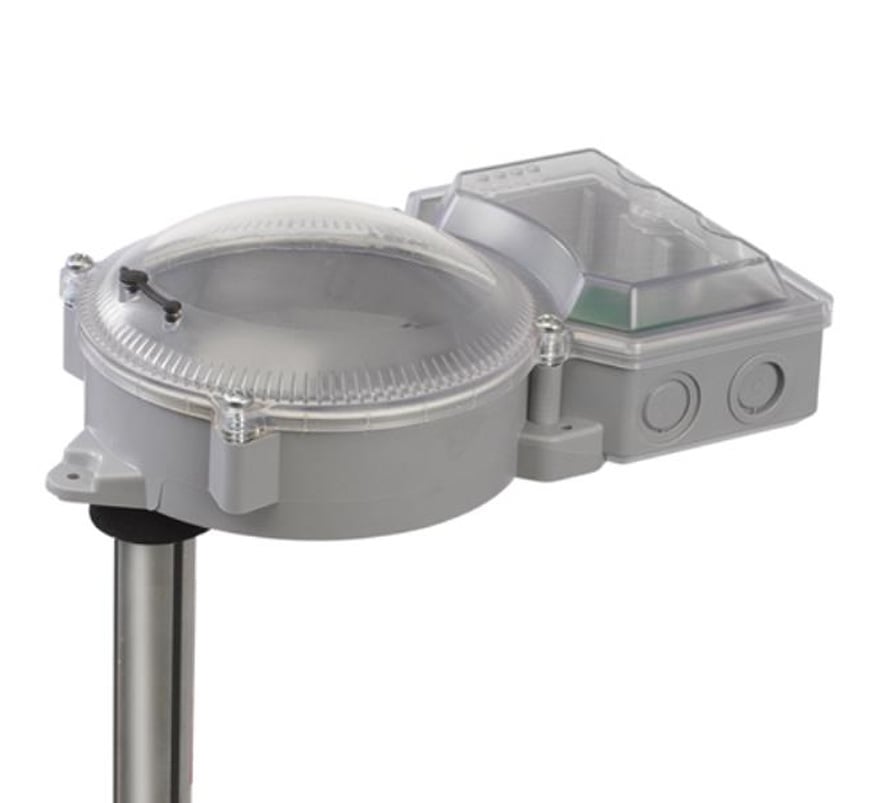

Hochiki Duct Detector Mounting Box including SDP-3 PIPE (0.6M) (SDP-3)

The Hochiki SDP-3 is a duct probe housing that lets a standard Hochiki photoelectric smoke detector, either a conventional detector or an analogue addressable sensor, be mounted on the outside of an air duct to monitor the air inside it. Air from the duct is drawn through the sampling pipe into the housing, where the detector samples it. It fits square or round section ducting (round ducts need the optional brackets). The detector is sold separately.

Key features

• One-tube air sampling system
• Test hole on the cover
• Airflow indication
• Simple installation and maintenance with easy cable connection
• Uses standard certified Hochiki optical detectors (sold separately)
• Fits square or round section ducts (with optional brackets)
• Optional cover (SDP-3 COVER) available where condensation may be a problem

Technical specifications

• Product code: SDP-3
• Sampling pipe: supplied with one 0.6 m pipe; SDP-3 PIPE (1.5M) available separately
• Accessories: SDP-3 BRACKET, SDP-3 COVER
• Operating temperature: -20 °C to +50 °C
• Storage temperature: -20 °C to +70 °C
• Maximum humidity: 99% RH non-condensing (at 40 °C)
• Colour / material: grey / ABS
• Ingress protection: IP54
• Weight: 640 g
• Dimensions: 280 x 150 x 100 mm (L x D x H)
• Compatible Hochiki devices: analogue ACA, ACC, ALG, ALN (all variants); conventional SLR, SOC (all variants)

What's in the box

• SDP-3 duct probe housing
• Sampling pipe, 0.6 m
