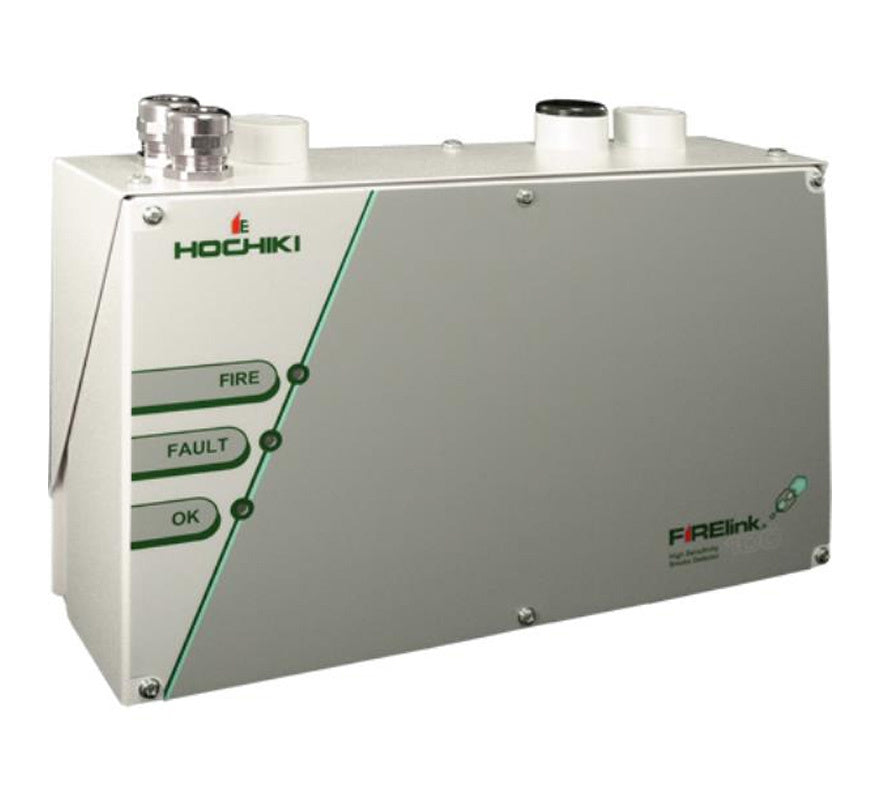

The Hochiki FIRElink-100 is a two-pipe aspirating (air sampling) smoke detector that gives very high sensitivity smoke detection in a small package. Hochiki positions it as the mid-range FIRElink unit for areas up to 1000 m², such as offices, schools and medium-sized facilities.
It configures itself to the protected environment without complex set-up, and fits into a docking station that takes all sampling pipes and cables, so the detector can be fitted at final commissioning. Volt-free Fire 1 and Fault relays allow monitoring by a fire panel or BMS, and an optional FL-APIC card connects it to a Hochiki ESP addressable loop. All FIRElink detectors are LPCB approved to EN54-20:2006 Classes A, B and C.
Key features
- Ultra small, low cost aspirating smoke detector for discreet installation
- Laser-based forward light scatter for reliable early warning
- Two sampling pipes, up to 100 m aggregate (still air)
- Laser dust discrimination to reduce false alarms
- RS485 communications built in for networking and remote communications
- Docking station accepts pipes and cables before the detector is fitted
Technical specifications
- Ordering code: FIRELINK-100
- Current consumption: 400 mA at 24 VDC
- Sampling pipe inlets: 2
- Maximum pipe length: 50 m (2 x 25 m or 1 x 35 m) moving air (>1 m/s), or 100 m (2 x 50 m or 1 x 65 m) still air
- Alarm levels: 2 (Fire and Fault); 2 more with optional relay card or APIC
- Exhaust outlets: 1 (on optional piped exhaust docking station)
- Operating temperature: 0 °C to +38 °C (UL268) / -10 °C to +60 °C (CEA4022)
- Operating humidity: 0 to 90%, non-condensing
- Measurement range: 0.03% to 25% obs/m full scale deflection; sensitivity resolution 0.0015% to 25%
- Detection principle: laser light scattering mass detection and particle evaluation
- Particle sensitivity range: 0.003 µ to 10 µ
- Dust discrimination: 3D3 Laser Dust Discrimination (LDD)
- Sampling pipe diameter: ¾" nominal bore (27 mm O/D)
- Relay contact rating: 500 mA at 30 V
- Supply voltage: 21.6 to 26.4 VDC
- IP rating: IP50
- Weight: 3.8 kg (with docking station)
- Dimensions: H 220 x W 300 x D 85 mm
