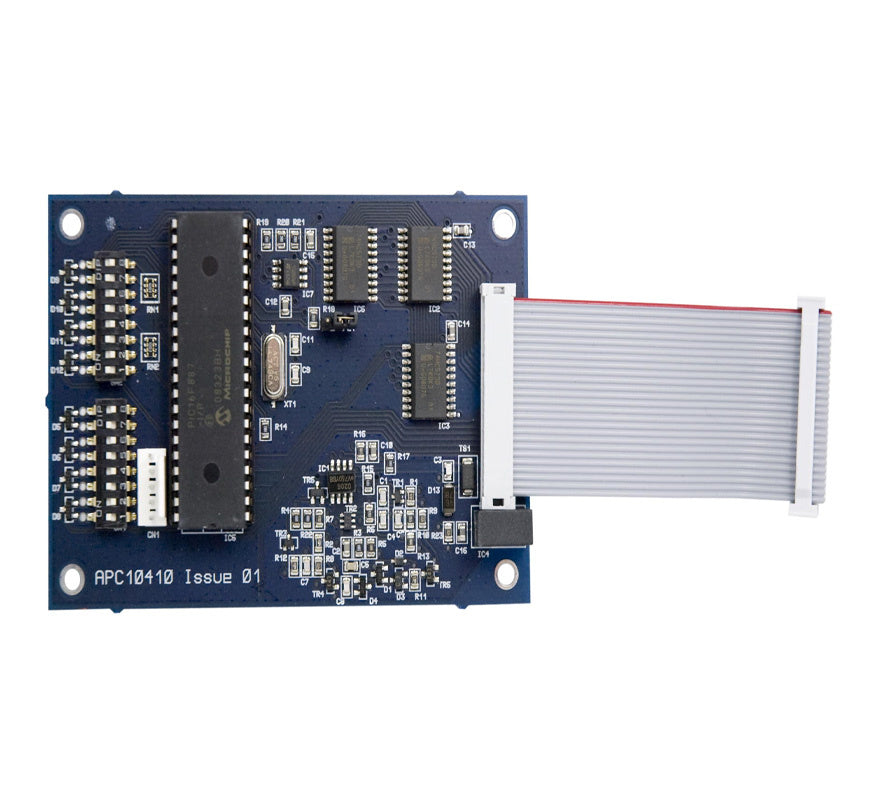

The Hochiki FL-APIC is an addressable protocol interface card that decodes FIRElink aspirating detector information and relays it directly to a Hochiki ESP-compatible fire control panel. This greatly reduces the wiring needed to connect a FIRElink detector to a Hochiki addressable loop.
It works with all FIRElink detectors and command modules, and supports both single and multi mode operation.
Key features
- Connects FIRElink detectors directly to a Hochiki ESP addressable loop
- Full address range (1 to 127)
- Compatible with all FIRElink detectors and command modules
- Supports single and multi mode operation
Technical specifications
- Ordering code: FL-APIC
- Loop voltage: 17 to 31 VDC
- Loop pulse voltage: 7 to 9 VDC
- Quiescent current (loop): 90 µA max
- Storage temperature: -30 °C to +60 °C (<80% RH at 60 °C)
- Relative humidity: 95% RH at 40 °C
- Dimensions (PCB assembly): L 100 x W 70 x D 25 mm
- Weight: 65 g
