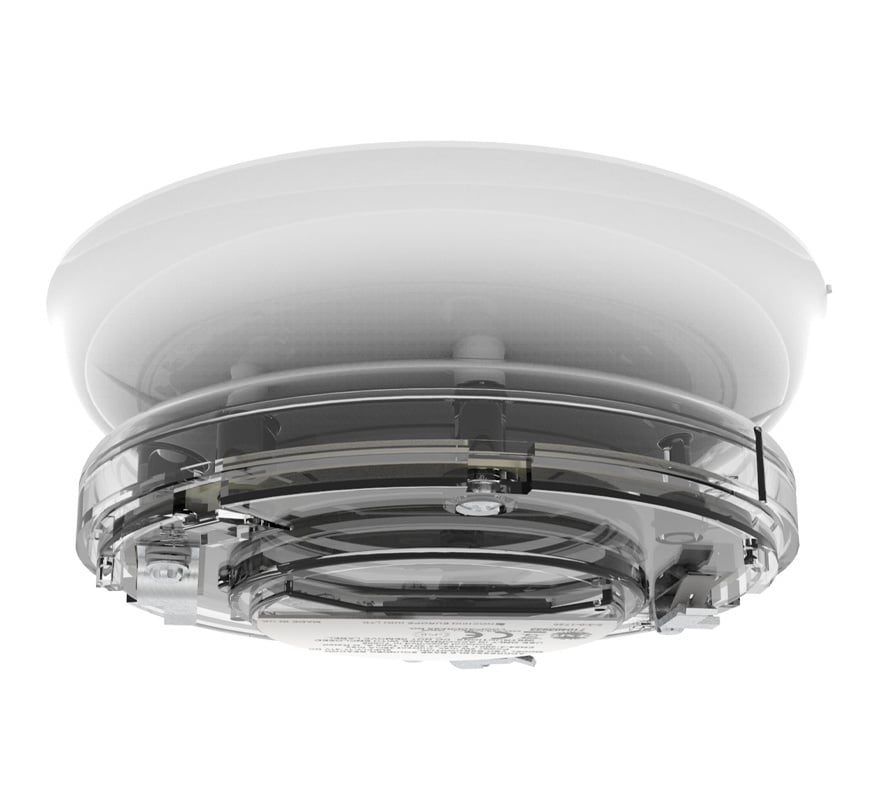

Hochiki YBO-BSB2(WHT)/RL Addressable Base Sounder VAD Beacon - White Case, Red LEDs

The Hochiki YBO-BSB2(WHT)/RL is an addressable, loop-powered base sounder with an integral beacon (VAD), in a white case with red LEDs, for the Hochiki ESP analogue addressable system. It gives a choice of 51 tones and a range of volumes up to 98 dB(A) (±2 dB(A)), and its beacon is 'O' rated to EN 54-23. It fits the standard base (YBN-R/3) or isolator base (YBN-R/3(SCI)) and can carry any ESP sensor, beacon or remote indicator; with an SI/CAP2 cap fitted it becomes a wall sounder beacon. It is rated IP21 for internal use.

Key features

• Single loop address, set with the TCH-B200 hand-held programmer
• Variable sound output 50-98 dB(A) (±2 dB(A)) at 1 m
• 51 user-selectable tones (all EN 54-3 compatible)
• Sounder and beacon can operate independently (panel dependent)
• 0.5 or 1 Hz flash frequency (panel dependent)
• Auto-shutdown feature to limit noise pollution (panel dependent)
• 'O' rated beacon to EN 54-23
• Supports ESP sensors, addressable beacons and remote indicators
• SIL2-approved variant available

Technical specifications

• Ordering code: YBO-BSB2(WHT)/RL (white case, red LEDs)
• Operating voltage: 17-41 V DC
• Low power mode (typ.): 110 µA
• Quiescent current (typ.): 250 µA
• Sounding current (typ.): 0.8 mA (50 dB(A) at 1 m) to 16 mA (98 dB(A) at 1 m)
• Additional current when beacon active: 7 mA
• Sound output at 1 m: 50-98 dB(A) (±2 dB(A)) at 24 V DC or above (EN 54-3 compliant)
• Number of tones: 51
• Tone frequency range: 300-2850 Hz
• EN 54-23 rating: 'O' (open) class; flash rate 0.5-0.55 Hz; light volume 8.43 m³
• Beacon power consumption: 110 mW
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +70 °C
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Colour / case / lens material: white / PC-ABS / translucent PC
• Ingress protection: IP21
• Weight: 160 g
• Dimensions: Ø113 x 43 mm (H)
• Base fixing centres: 48-74 mm
• Note: use addresses 1 to 127 only
