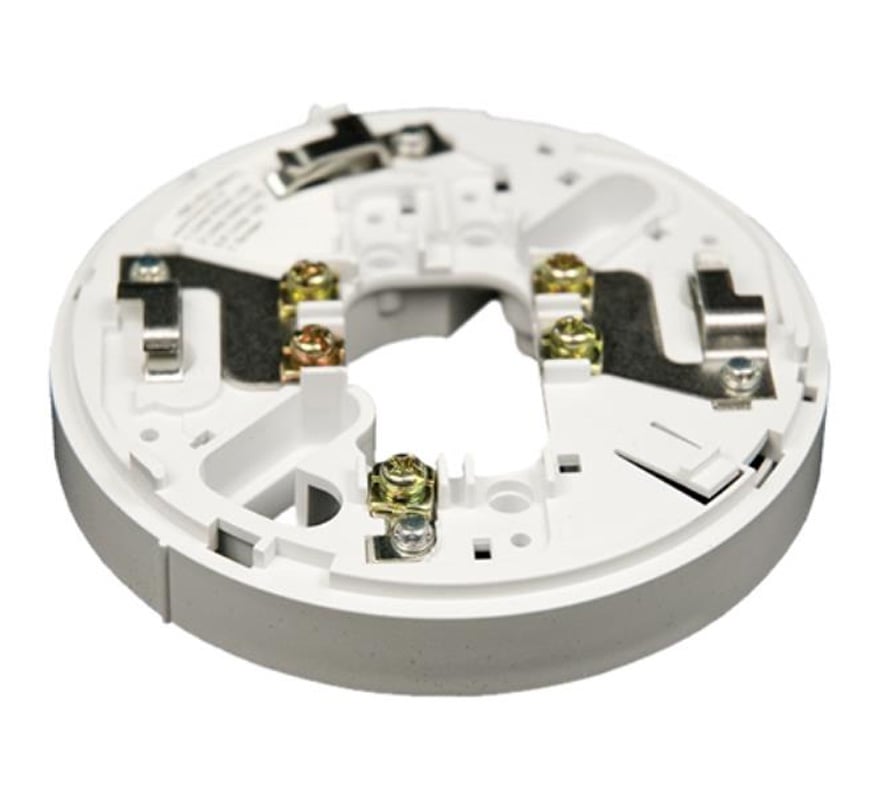

The Hochiki YBO-R/3(WHT) is a white sounder mounting base, fully compatible with the Hochiki ESP range and designed specifically for the Hochiki wall sounder range: the CHQ-WS2 wall sounder and the CHQ-WSB2 wall sounder beacon. It is supplied with square cable clamps for secure and reliable cable termination.
Key features
- Electronics free, with stainless steel contacts
- Takes 2.5 mm² cables
- Slim profile, only 13 mm
- Rugged wiring contacts
- Quick connection via square cable clamps
- Also available in red (YBO-R/3(RED))
Technical specifications
- Ordering code: YBO-R/3(WHT) (white)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Colour / material: white / ABS
- Weight: 60 g
- Dimensions: Ø100 x 13 mm (H)
- Fixing centres: 48-74 mm
- Maximum wire size: 2.5 mm²
- Compatible devices: CHQ-WS2 and CHQ-WSB2 wall sounders and sounder beacons
