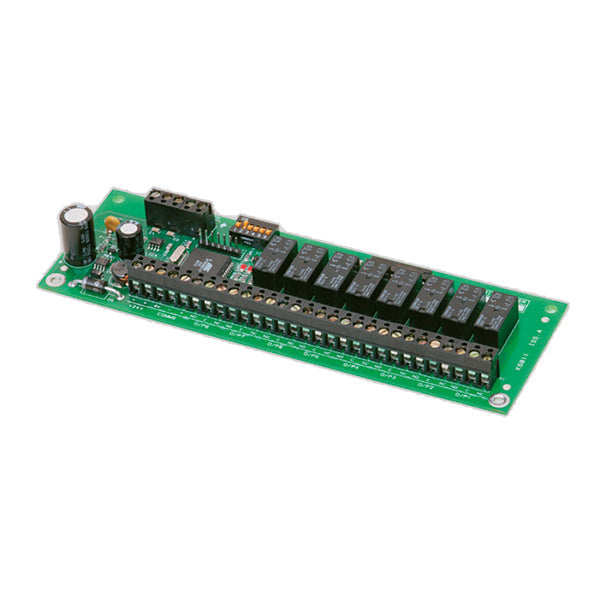

The Kentec K547 is an 8-way relay extender board for Kentec Syncro AS and Taktis fire alarm control panels. It adds eight individually programmable volt-free changeover relay outputs.
Up to 32 boards can be connected to the panel's RS485 bus, giving up to 256 extra relay outputs. They can be mixed with 16-channel I/O, 6-way sounder and 4-way conventional zone boards. All outputs can be driven by the panel's cause-and-effect logic.
Key features
- 8 volt-free changeover relay contacts
- Relay-operated indications
- Connects to the panel over the RS485 serial bus
- Same footprint as other Syncro I/O boards
- Compatible with Syncro AS and Taktis panels
Technical specifications
- Product code: K547
- Supply voltage: 21 to 30 V DC
- Quiescent current: 10 mA; operating current (all outputs on) 250 mA
- Output contact rating: 30 V DC 1 A
- Communications: RS485 two-wire, up to 1.2 km from the panel
- PCB size: 190 x 61 mm; fixing centres 51.5 x 180 mm
- Cable capacity: 2.5 mm² per terminal
- Operating temperature: -5°C to +50°C; humidity up to 95% non-condensing
- Weight: 1 kg
