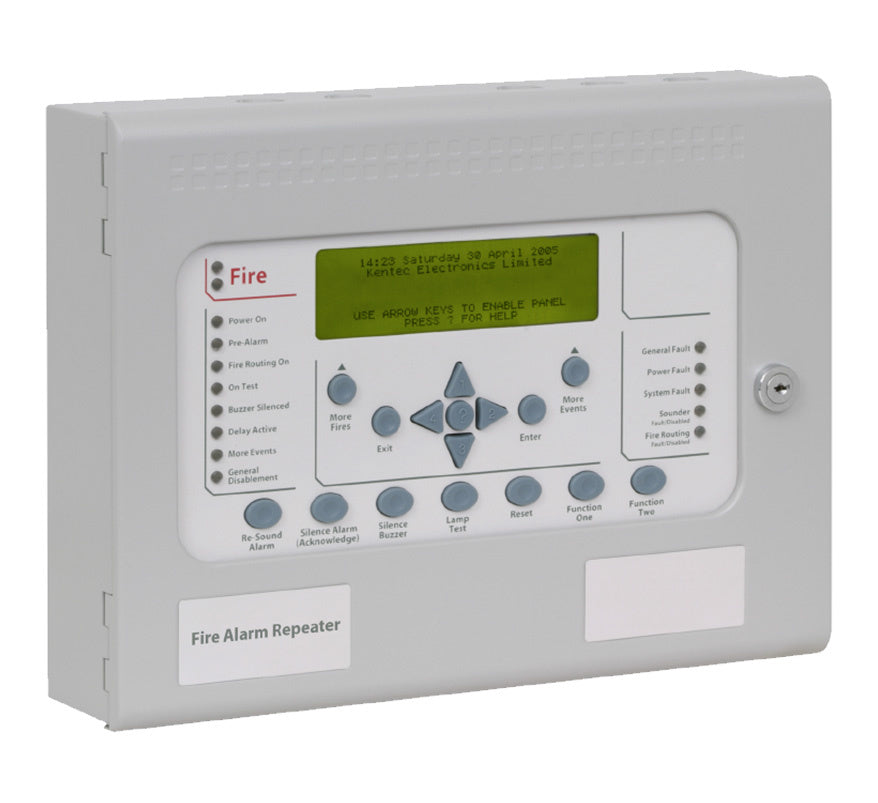

Kentec Syncro View Marine Approved Local LCD Repeater Panel with Keyswitch 24v (MK67001M1)

The Kentec Syncro View Marine MK67001M1 is a 24 V DC local LCD repeater (annunciator) panel with an enable control keyswitch, for marine and offshore installations. It extends the controls and indications of the Kentec Syncro ASM fire alarm control panel to other locations.

Up to 15 annunciators can be connected to each Syncro ASM panel on a simple two-wire serial data link. When powered from 2 extra cores of the Syncro ASM panel, up to 4 View Marine repeaters can be connected. With a local ancillary 24 V DC supply, the full 15 can be used. The compact enclosure is styled like the Syncro ASM panel. It suits places where space is limited, such as the bridge or helm, engine rooms, crew quarters and control areas.

Key features

• Large graphic LCD (240 x 64 pixels)
• High-brightness LED indications and internal sounder
• Replicates all Syncro ASM panel controls
• Simple two-wire serial connection
• Up to 15 annunciators per Syncro ASM panel
• Enable control keyswitch fitted
• Small Syncro-style enclosure with removable electronics

Technical specifications

• Product code: MK67001M1 (24 V DC model with enable keyswitch)
• Supply: 21 to 30 V DC (24 V DC model)
• Display: 8 lines of 40 characters graphic LCD
• Serial data: 2-core RS485, up to 1200 m total cable length
• Terminal capacity: 2.5 mm²
• Construction: 1.2 mm mild sheet steel, epoxy powder coated, IP30
• Colour: BS 00 A 05 grey lid and box; RAL 7047 light grey controls plate
• Dimensions: 330 x 255 x 90 mm
• Cable entry: 5 x 20 mm knockouts in top and 5 in rear
