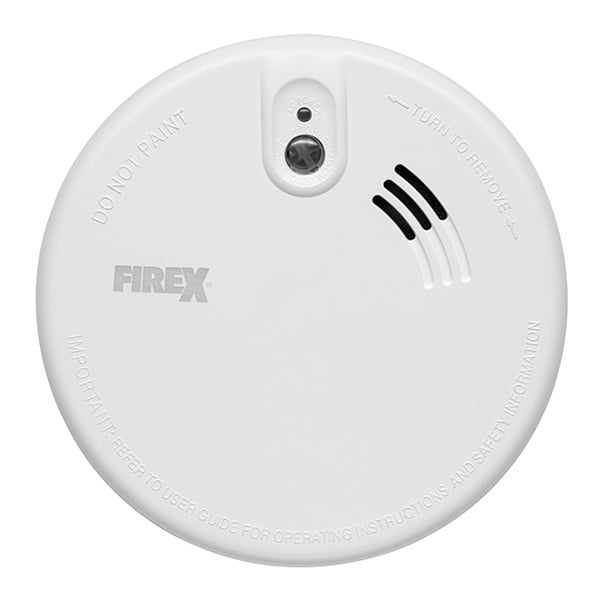

Kidde KF20LL Mains Powered Optical Smoke Alarm with Lithium Back-Up Battery

The Kidde Firex KF20LL is a 230V mains-powered optical smoke alarm supplied with a long-life 9V lithium back-up battery. It can be hard-wire interlinked with up to 23 other Kidde Firex mains alarms (optical, ionisation or heat), so that when one unit detects danger every connected alarm sounds. Optical alarms are intended for escape routes and circulation areas where slow, smouldering fires are a risk; Kidde recommends a Firex heat alarm for kitchens. It should be installed by a qualified electrician.

Key features

• Interlinks with up to 23 Firex hard-wired alarms; all alarms sound when danger is detected
• Alarm memory identifies the source unit within an interconnected network
• Dust compensation and bug screen reduce nuisance alarms
• Combined Test/Hush button for routine testing and temporary silencing of nuisance alarms
• Automatic reset after activation
• Tamper-resistant locking device prevents removal without a tool
• User-replaceable long-life 9V lithium back-up battery supplied as standard
• Automatic self-test: the unit chirps if a fault is detected

Technical specifications

• Model: KF20LL
• Power supply: 230V AC, 50Hz mains with 9V lithium battery back-up
• Sensor: optical, circular lateral chamber with insect-resistant entry and bug screen mesh
• Sound output: 85dB(A) minimum at 3m; alarm frequency 3.2kHz typical
• Alarm pattern: temporal T3 (three pulses, pause, three pulses)
• Power consumption: <15mA
• Connection: push-in/snap-fit connector with 150mm flying leads (supplied)
• Indicators: continuous green LED (mains on); red LED for status, alarm and hush (hush auto-resets after 15 minutes)
• Fixing: mounting bracket with 57mm to 90mm screw spacing for standard back boxes and a 50mm central cable access hole
• Alarm dimensions: 127 x 127 x 39mm; bracket 133 x 133 x 6mm
• Alarm weight: 242g
• Operating temperature: 0°C to +40°C
• Humidity: up to 93% RH, non-condensing
• Storage and transport: -20°C to +60°C, 5–95% RH non-condensing
• Approvals: BSI certified to BS EN 14604:2005
• Warranty: 6 years
