SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)
SKU: IR3-109/1CZBrand: SENSE-WARE
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ)
£2,021.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Three infrared sensors, spectral range 2.7 - 5.0 microns
- Detects a 0.09 m2 n-heptane pan fire at up to 35 m, typical response under 10 seconds
- 90 x 90 degree field of view
- Alarm and fault SPDT relays (latching or non-latching by DIL switch) plus 4-20 mA output
- Automatic self-test once per hour, plus manual self-test
- Corrosion-proof GRP housing, IP65, with pressure compensating element
Frequently bought together
SENSE-WARE
SENSE-WARE Non-Ex Flame Detector Test Lamp (TC-169/1)
Sale price£1,200.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
SENSE-WARE
SENSE-WARE Universal UV/IR Flame Detector Test Lamp (TC-229/4P)
Sale price£1,160.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Siemens
Siemens FDM365-RP Cerberus FIT FC360 Manual Call Point (Red) (No backbox) (S54311-F111-A1)
Sale price£31.15
In stock, 26 unitsSmartCell
SmartCell EMS-41-0202-0001-99 Wireless Dual Input / Output Device
Sale price£164.62
Only 2 units left
SmartCell
SmartCell Remote Services Annual Contract
Sale price£75.85
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

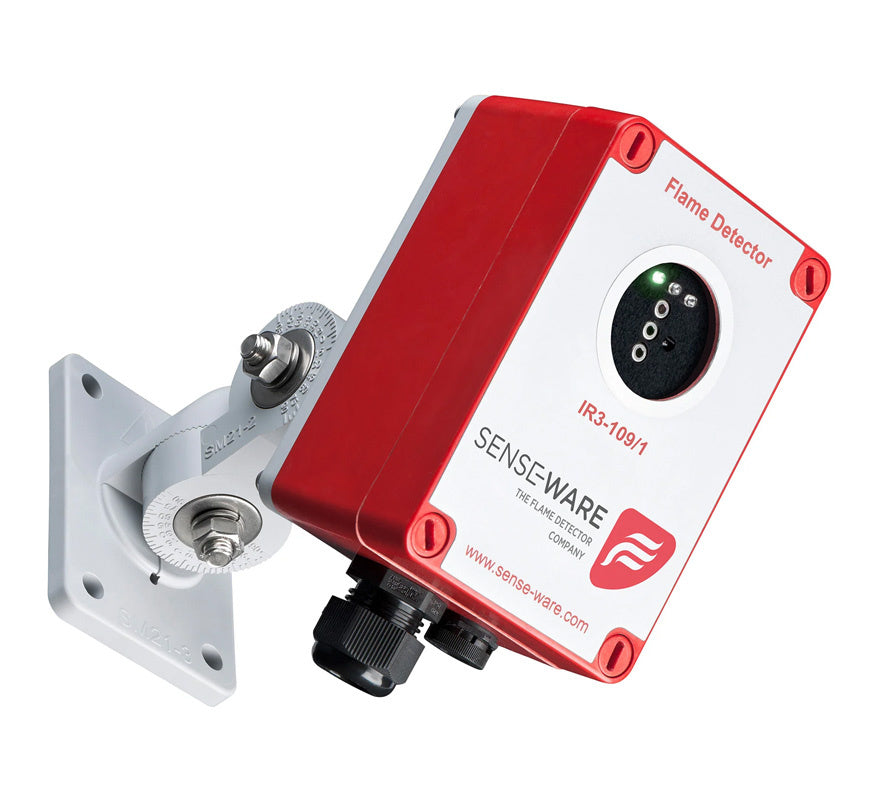

The IR3-109/1 is a triple infrared (IR3) flame detector from SENSE-WARE, here in a red housing. It detects hydrocarbon fires in Zone 2 hazardous areas and safe areas, using microprocessor analysis of three IR sensors and flame flicker frequency to reject false alarms.
Key features
- Three infrared sensors, spectral range 2.7 - 5.0 microns
- Detects a 0.09 m2 n-heptane pan fire at up to 35 m, typical response under 10 seconds
- 90 x 90 degree field of view
- Alarm and fault SPDT relays (latching or non-latching by DIL switch) plus 4-20 mA output
- Automatic self-test once per hour, plus manual self-test
- Corrosion-proof GRP housing, IP65, with pressure compensating element
- Green, red and yellow LEDs for normal, alarm and fault
Specification
| Product code | IR3-109/1CZ |
|---|---|
| Brand | SENSE-WARE |
| Supply voltage | 10 - 28 V DC |
| Current | 25 mA normal, 35 mA alarm (at 24 V DC) |
| Relay rating | 30 V DC / 2 A / 60 W |
| Operating temperature | -25 to +70 C (hazardous area), -40 to +70 C (safe area) |
| Ingress protection | IP65 |
| Cable entry | 1 x M20 |
| Dimensions | 125 x 80 x 57 mm |
| Weight | 465 g |
| Approvals | EN54-10 Class 1, ATEX/IECEx II 3G Ex nA IIC T4 Gc, FM3260, FM3611 |
| Housing colour | Red |
Datasheet
SENSE-WARE IR3 (Infrared) Flame Detector, Red Housing (IR3-109/1CZ) Need the datasheet? Our team will email it to you. Request datasheet
