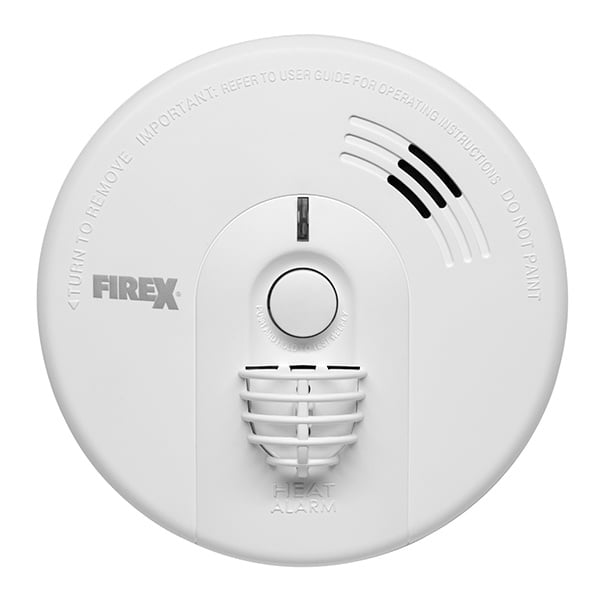

Kidde KF30 Mains Powered Heat Alarm with 9v Back-Up Battery

The Kidde Firex KF30 is a 230V mains-powered heat alarm with a replaceable 9V alkaline back-up battery supplied as standard. It uses a thermistor sensor and is suited to kitchens, garages and other areas where a smoke alarm would give nuisance alarms. It can be hard-wire interlinked with up to 23 other Kidde Firex mains alarms (optical, ionisation or heat), so that when one unit detects danger every connected alarm sounds.

Key features

• Interlinks with up to 23 Firex hard-wired alarms; all alarms sound when danger is detected
• Alarm memory identifies the source unit within an interconnected network
• Combined Test/Hush button for routine testing and temporary silencing of nuisance alarms
• Automatic reset after activation
• Tamper-resistant locking device prevents removal without a tool
• 9V alkaline back-up battery supplied as standard (user-replaceable)
• Automatic self-test: the unit chirps if a fault is detected

Technical specifications

• Model: KF30
• Power supply: 230V AC, 50Hz mains with 9V alkaline (522/6LR61) battery back-up
• Sensor: thermistor heat sensor
• Sound output: 85dB(A) minimum at 3m; alarm frequency 3.2kHz typical
• Alarm pattern: temporal T3 (three pulses, pause, three pulses)
• Power consumption: <15mA
• Connection: push-in/snap-fit connector with 150mm flying leads (supplied)
• Mounting: ceiling or wall
• Dimensions: 127 x 127 x 51mm
• Weight: 213g (including battery)
• Humidity: up to 93% RH, non-condensing
• Storage and transport: -20°C to +60°C, 5–95% RH non-condensing
• Approvals: BSI certified to BS 5446-2:2003
• Alarm grade: D2
• Service life: 10 years
• Warranty: 6 years
