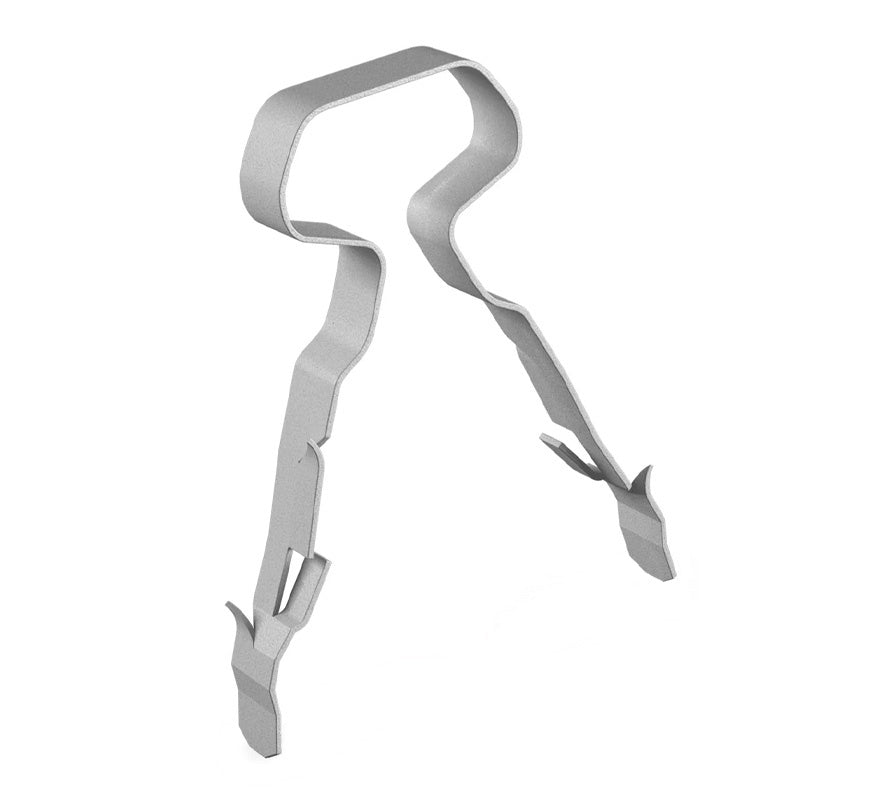

The LINIAN T&E Clip™ (1LTEG002.5) is a single-component, fire-rated fixing for 2.5mm² twin and earth (flat T&E/CPC) cable, in grey. It meets the 18th Edition (BS 7671) requirement for cables to be supported against premature collapse in the event of fire. To install, simply drill a hole, slide the clip over the cable and push it in: no plugs, screws, washers, cleats or nail-in clips are needed. Supplied in a pack of 100.
Key features
- 18th Edition compliant fire-rated fixing
- Fire-resistant to over 1200°C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Single-component design with no plugs, screws or washers
- Corrosion resistant and UV stable
- Suitable for twin and CPC cabling, PVC trunking, anchor fixings for wire and use within trunking
- CE and UKCA certified
- Made in Britain
Technical specifications
- Part number: 1LTEG002.5
- Cable size: 2.5mm² twin and earth
- Colour: grey
- Recommended spacing: 300 mm
- Hole diameter: 6 mm
- Hole depth: 30 mm
- Maximum tensile load: 24 kg
- Pack quantity: 100
