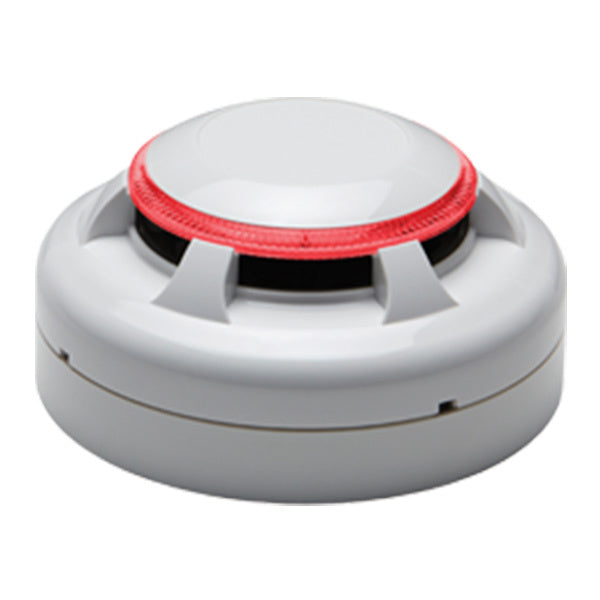

The Nittan EV-DPH-A2R (part no. F14-82106) is an analogue addressable dual optical smoke and heat multisensor for Nittan Evolution fire alarm systems. Its heat element is class A2R to EN 54-5.
It combines Nittan's dual optical smoke sensing (two LEDs) with a heat sensor, which Nittan says reduces false alarms. It uses the Evolution FSK protocol, is EEPROM addressed with a programmer and has remote indicator (RIL) and base control outputs.
Key features
- Dual optical technology plus heat sensor to reduce false alarms
- Heat class A2R
- Evolution FSK protocol
- EEPROM addressed with a programmer
- RIL and base control outputs
Technical specifications
- Sensing method: light scatter (2 x LED) and thermistor (2 x)
- Operating voltage: 20 to 38 V DC (35 V DC system voltage)
- Quiescent current: 200 µA
- Alarm current: 5 mA
- Remote LED indicator current: 2 mA
- Ingress protection: IP42
- Material: ABS
- Dimensions: Ø104 x 33 mm (head); Ø104 x 48 mm with UB-6-EV base
- Mass: 118 g (head); 183 g with UB-6-EV base
- Compatible bases: UB-4-EV, STB-4SE-EV and UB-6-EV
- Standards: EN 54-5 and EN 54-7
- Manufacturer part number: F14-82106
