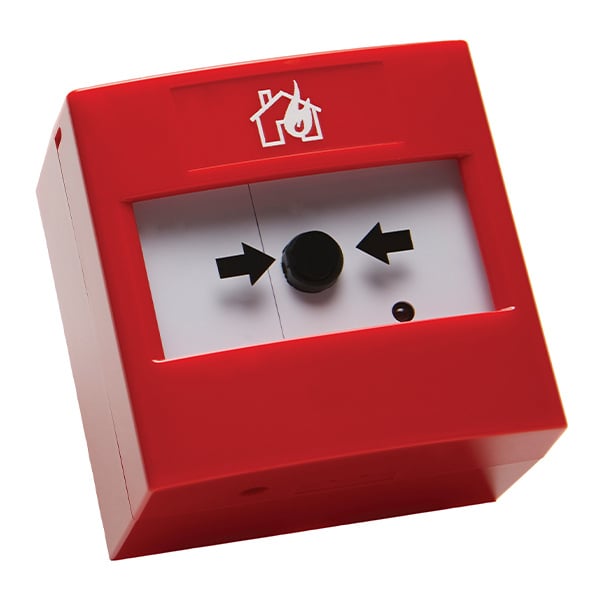

The Nittan EV-MCP2-SCI-IP24 (part no. F16-82200) is an Evolution analogue addressable indoor manual call point with a built-in short-circuit isolator on the negative line. It is housed in an STI "ReSet" IP24 surface-mounting enclosure.
The isolator protects a zone of the loop and resets itself once the fault clears. The call point is DIL-switch addressed and comes with a back box and RF wall plate. Nittan notes that positive- and negative-line isolator styles cannot be mixed on one system, and that this SCI model is not compatible with the Advanced MxPro4 (Mx4000) panel, where the non-SCI model should be used.
Key features
- Fully integrated negative-line short-circuit isolator, self-resetting when the fault clears
- Easily reset with the dedicated key
- Supplied with surface and flush adaptors
- DIL switch addressed
- Red LED alarm indication
Technical specifications
- Operating voltage: 20 to 38 V DC
- Quiescent current: 200 µA
- Alarm current: 2.2 mA
- Ingress protection: IP24
- Standards: EN 54-11:2001 + A1:2005; EN 54-17:2005 / AC:2007
- Part number: F16-82200
