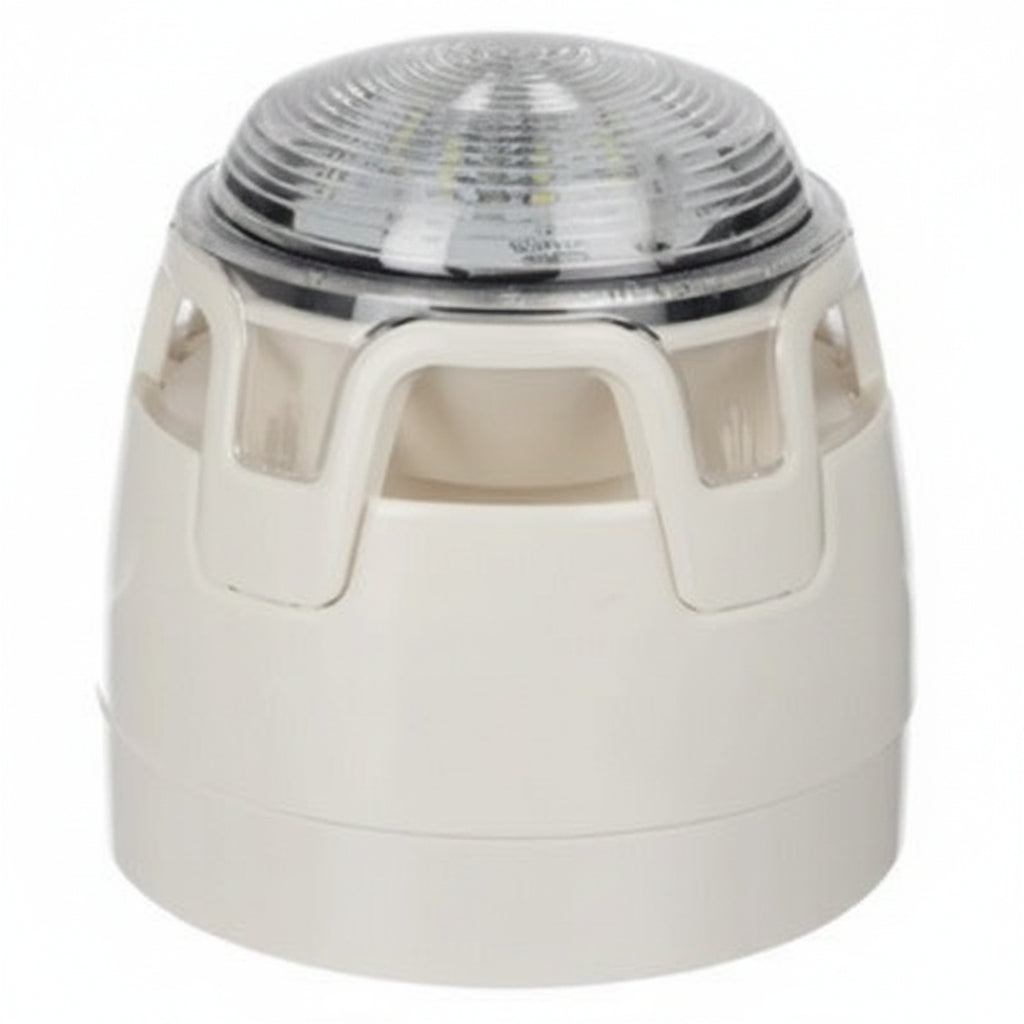

Notifier CWSS-WW-S5 Sounder VAD - White Base - White Flash

The Notifier CWSS-WW-S5 is a conventional sounder strobe with a white body and cool white flash. It is supplied with a low-profile base. It is approved to EN54-3 (sounder) and EN54-23 (visual alarm), with W-2.4-8.9 and C-3-10 / C-6-10 classes.

It is for conventional fire alarm sounder circuits where you need an audible and a visual alarm from one device where a white finish is preferred.

Key features

• Combined sounder and visual alarm device (VAD) in one unit
• Folded horn design for high sound output at low current
• Omni-directional light output, for wall or ceiling mounting
• Synchronised flash
• Soft-start feature as standard
• Suitable for 12 V and 24 V systems
• White body, clear lens, cool white flash
• Approved to EN54-3 and EN54-23 (W-2.4-8.9, C-3-10 / C-6-10)

Technical specifications

• Operating voltage: 12 to 29 V DC
• Current: 49 mA at 29 V DC (class W, tone 7)
• Maximum sound output: 107 dB(A) at 1 m (tone 23)
• Tones: 32, including a bell tone
• Flash frequency: 0.5 Hz
• Dimensions (Ø x H): 100 mm x 98 mm (low-profile base)
• Weight: 248 g (low-profile base)

What's in the box

• CWSS-WW-S5 sounder strobe
• Low-profile base
