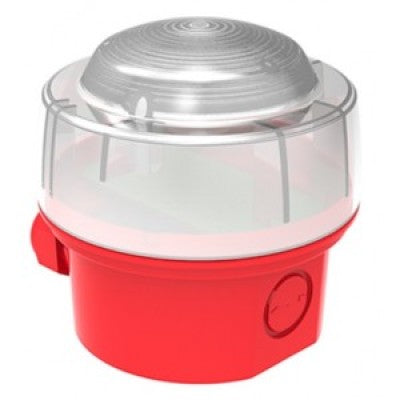

The CWST-RR-W5 is a conventional (non-addressable) EN 54-23 visual alarm device (VAD) from the Notifier ENScape range, with a red body, clear lens and red flash. It is supplied with an IP65 deep base, mounts on walls or ceilings and is suitable for 12 V and 24 V fire alarm systems.
Key features
- High output LEDs with advanced optics and lens design for omni-directional light coverage
- Suitable for wall and ceiling mounting
- Synchronised flash
- Soft-start feature as standard
- Suitable for 12 V and 24 V systems
- Approved to EN 54-23, categories C and W
- IP65 deep base included
Technical specifications
- Body: red; lens: clear; flash: red
- Ingress protection: IP65 (deep base)
- EN 54-23 classification: W-2.4-6.7 and C-3-9.4 / C-6-8.6
- Operating voltage: 9 to 29 V DC
- Current: 26 mA at 29 V DC
- Flash frequency: 0.5 Hz
- Dimensions (Ø x H): 100 x 97 mm (deep base)
- Weight: 171 g (deep base)
