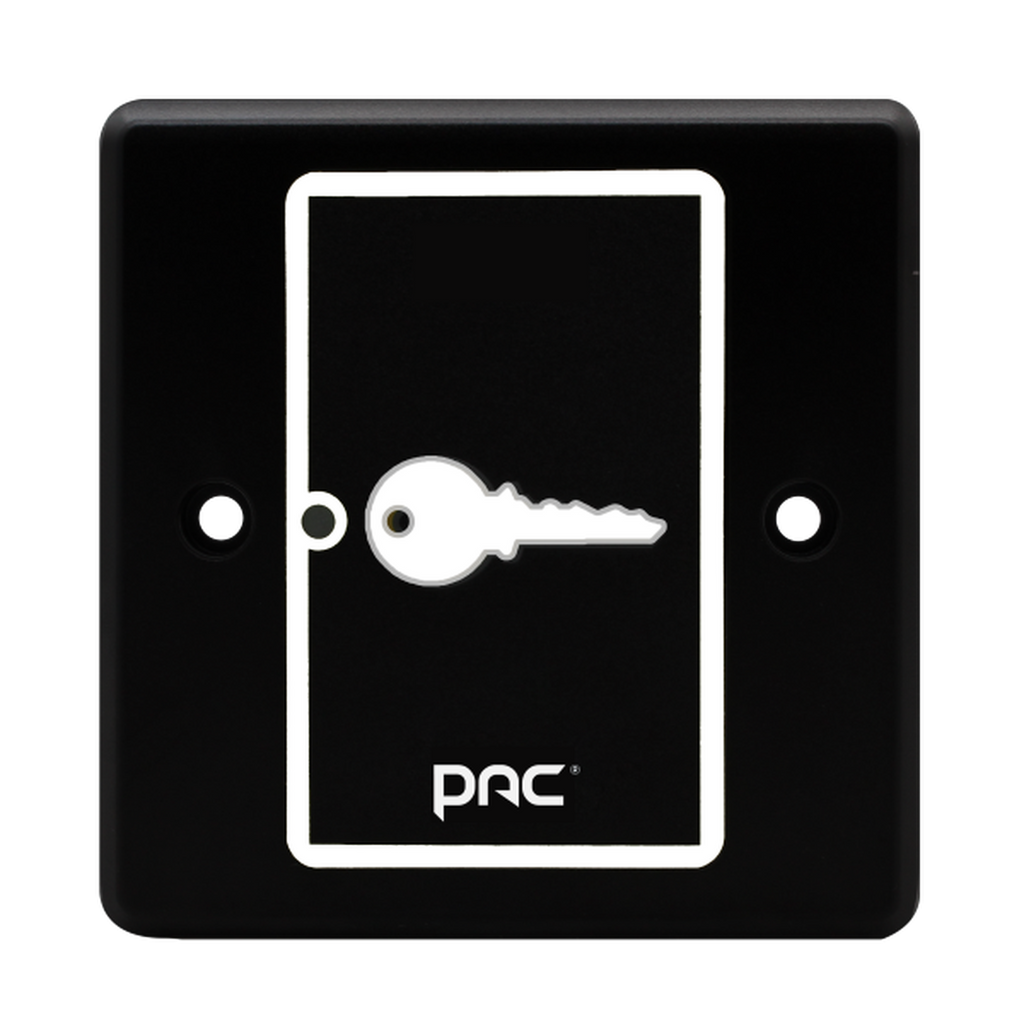

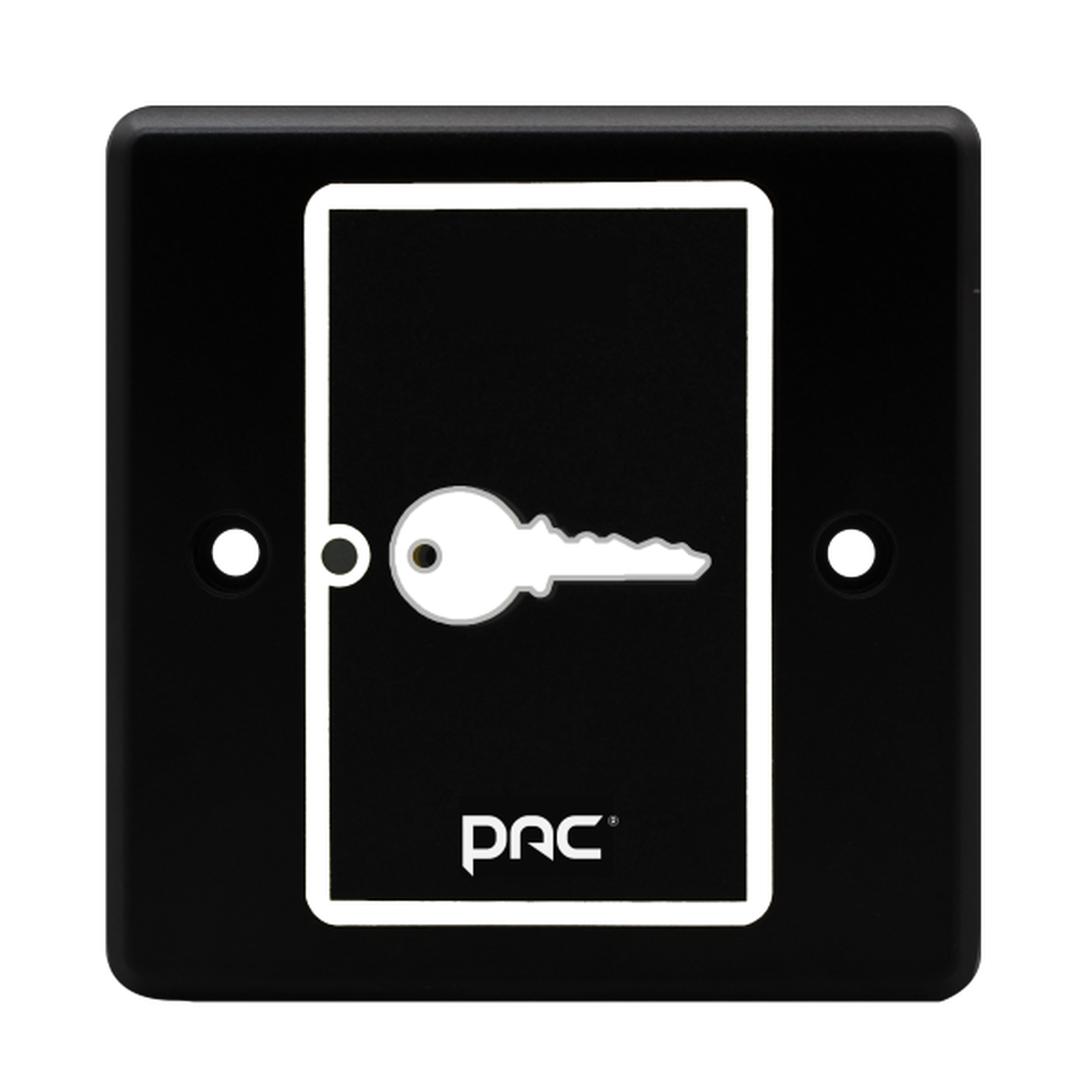

Comelit PAC OneProx GS3 HF Back Box Reader

The Comelit PAC 909020124 is a high-frequency (13.56 MHz) back box reader from the PAC GS3 range, for indoor access control. It fits most electrical back boxes, surface or flush, and reads PAC OPS (One Prox Smart) and OPS Lite credentials. Pairing a PAC HF reader with PAC OPS ID devices gives PAC's most secure configuration, as OPS devices are not cloneable like many LF credentials.

Key features

• Fits most standard electrical back boxes, surface or flush
• For indoor use only
• Supports PAC OPS and PAC OPS Lite ID devices
• Reader output selectable (PAC64 or PAC32) by a switch on the rear
• Reader line tamper with PAC 512 controllers
• Long 100 mm read range

Technical specifications

• Part number: 909020124
• Supported credentials: PAC OPS, PAC OPS Lite
• Supported output protocols: PAC64, PAC32, Wiegand
• RFID frequency: high frequency (13.56 MHz)
• Distance to controller: 70 m (reader powered from controller), 500 m (locally powered reader)
• Recommended cabling: PAC output 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
• Maximum read range: 100 mm
• Indicators: red/green LEDs
• Tamper: certified to EN 50131-1 and EN 50131-3
• Power input: 12-24 V DC, <120 mA at 12 V DC
• Dimensions: 86 x 86 x 8 mm (W x H x D)
• Weight: 0.036 kg
• Material: UL rated polycarbonate
• Environment: indoor only
• Operating temperature: -40 °C to +66 °C
• Operating humidity: 10% to 85% RH
• Warranty: lifetime against electronic failure
• Standards: UKCA, CE, RoHS and WEEE
