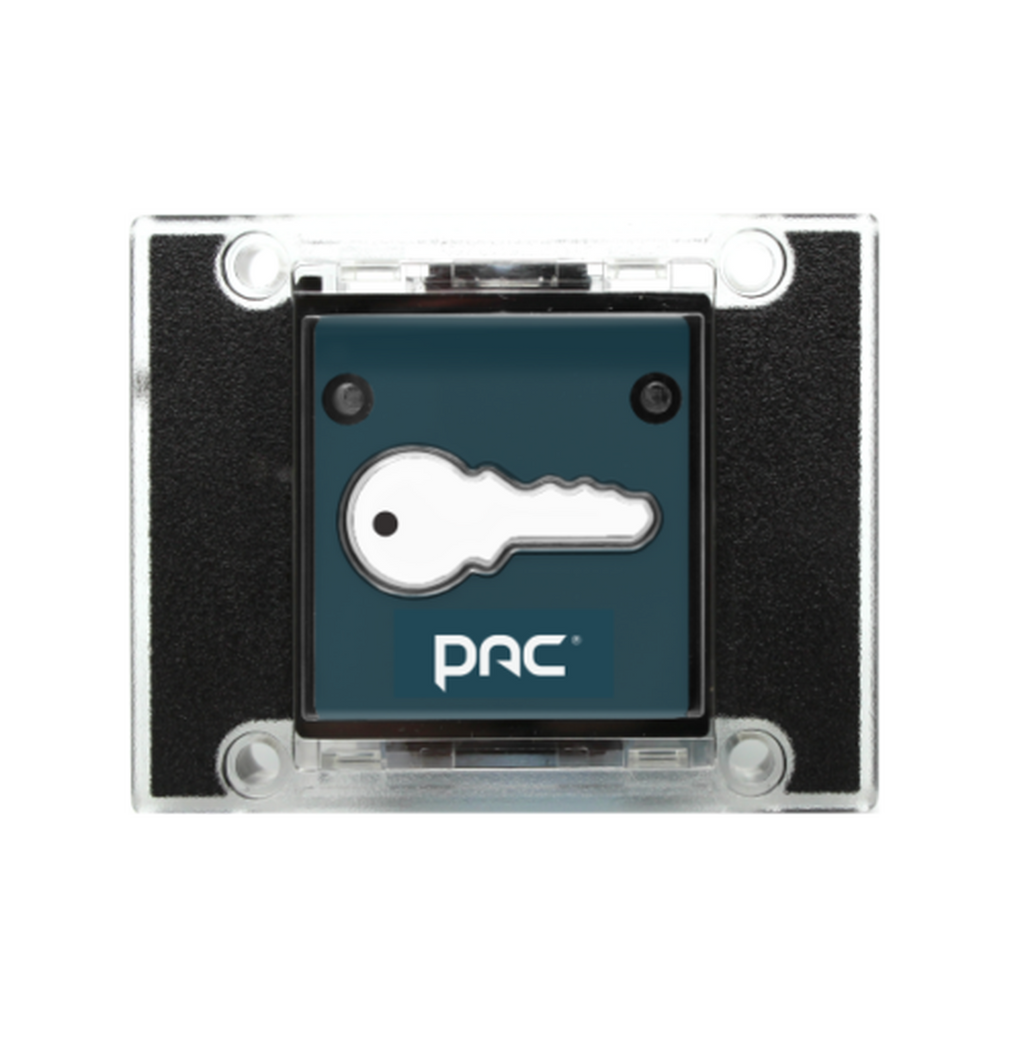

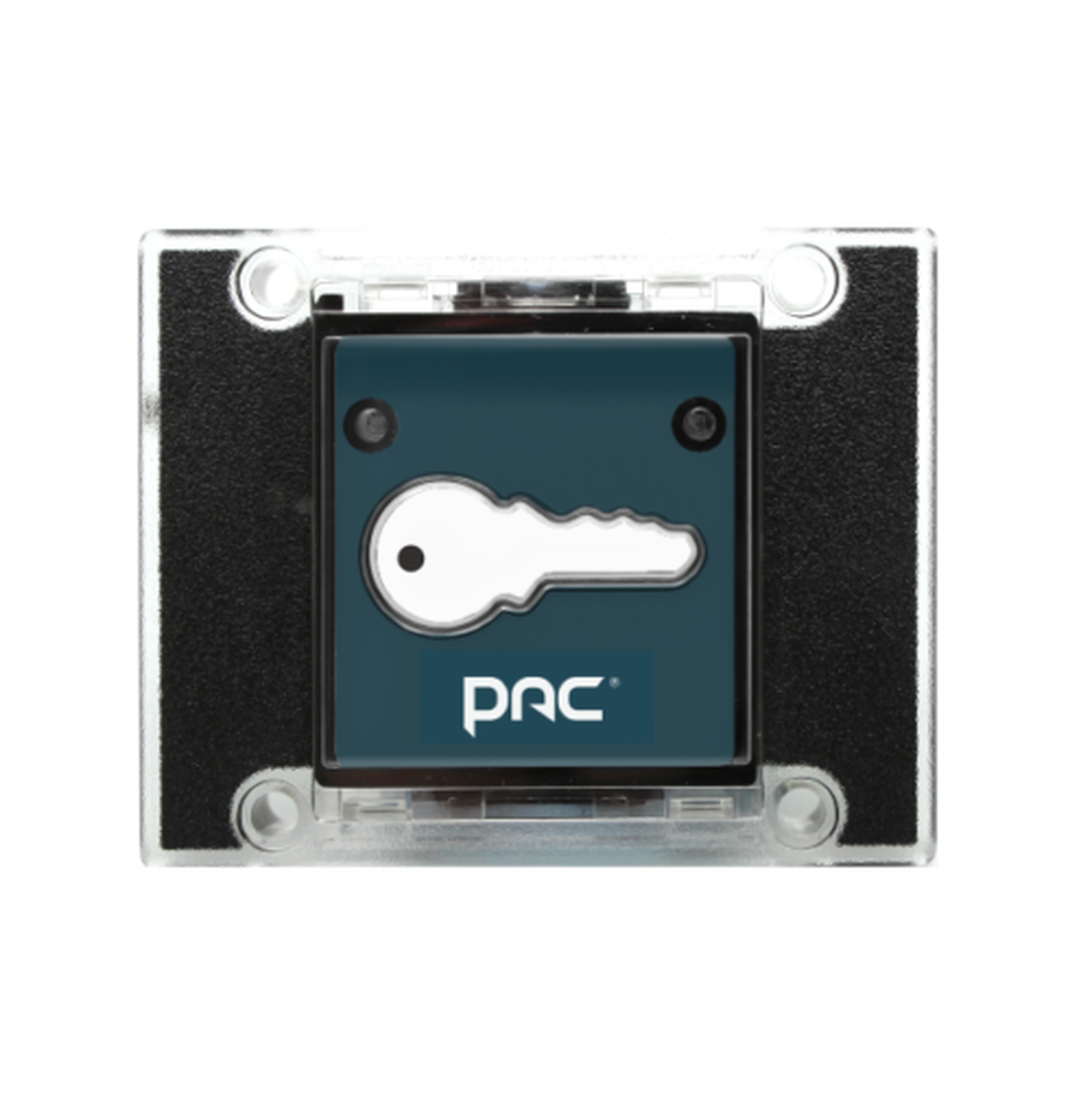

The Comelit PAC 909022119 is a high-frequency (13.56 MHz) panel mount reader from the PAC GS3 range. It is designed to fit standard openings in OEM door entry panels, making it an easy retrofit reader for integrating PAC access control with intercoms and other systems. It is rated IP65 and reads PAC OPS and OPS Lite credentials.
Key features
- Fits standard panel openings in door entry and intercom panels
- Raised key symbol with audible and visual feedback for Equality Act compliance
- IP65, indoor/outdoor; Security Grade 3
- Supports PAC OPS Lite, PAC OPS and many Wiegand variants
- Reader line tamper with PAC 512 controllers
Technical specifications
- Part number: 909022119
- Supported credentials: PAC OPS Lite, PAC OPS
- Supported output protocols: PAC64, PAC32, Wiegand
- RFID frequency: high frequency (13.56 MHz)
- Distance to controller: 70 m (reader powered from controller), 500 m (locally powered reader)
- Recommended cabling: PAC output 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
- Maximum read range: 20 mm
- Indicators: audible sounder and red/green LEDs
- Tamper: certified to EN 50131-1 and EN 50131-3
- Power input: 12-24 V DC, <90 mA at 12 V DC
- Dimensions: 75 x 80 x 16 mm (W x H x D)
- Weight: 0.106 kg
- Material: UL rated polycarbonate
- Environment: IP65, indoor/outdoor
- Intruder grading: Security Grade 3
- Operating temperature: -40 °C to +66 °C
- Operating humidity: 10% to 85% RH
- Warranty: lifetime against electronic failure
- Standards: UKCA, CE, FCC, IC, RoHS and WEEE
