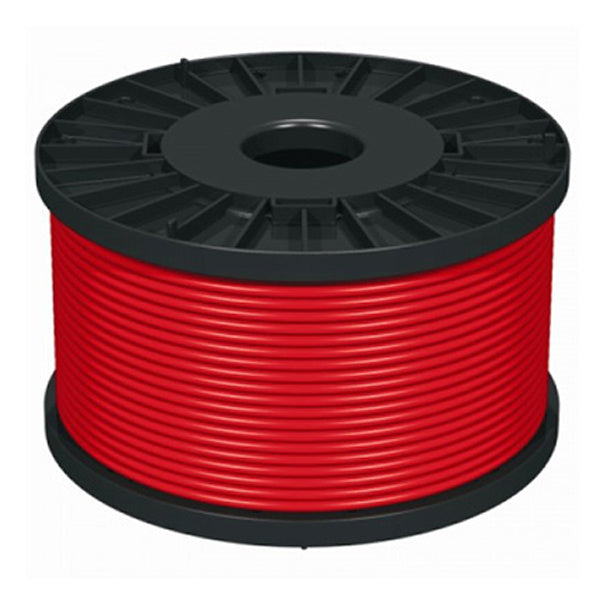

Prysmian FP PLUS is an “Enhanced” fire resistant cable designed to BS 7629-1 for fire alarm, emergency lighting, life safety and fire-fighting circuits in buildings. This 2 core 1.5mm² version with an un-insulated tinned copper circuit protective conductor (CPC) has a red Low Smoke, Zero Halogen sheath and is supplied on a 100m length. It is intended for hospitals and large, complex buildings where BS 5839-1 or BS 5266-1 call for “Enhanced” fire resistance. FP PLUS is assessed and certified by LPCB and BASEC.
Key features
- “Enhanced” fire resistance: tested to BS EN 50200 and BS 8434-2 for 120 minutes
- Fully screened: pliable aluminium tube construction that can be dressed to the cable route without spring-back
- Full size tinned copper CPC in direct contact with the screen
- Tough, hard-skin enhanced INSUDITE® insulation, EI5 to BS EN 50363-5; resists nicks and cuts, no ferrules needed
- Low Smoke, Zero Halogen (LSOH) sheath bonded to the screen for quick, one-piece sheath removal
- Suitable for BS 5839-1 and BS 5266-1 “Enhanced”, and BS 8519 “Control” Category 2
- Manufactured under ISO 9001 quality management systems
Technical specifications
- Construction: 2 cores + CPC, 1.5mm² nominal cross-sectional area
- Standard: BS 7629-1
- Rated voltage: 300/500 V
- Approximate overall diameter: 9.2mm
- Sheath colour: Red
- Length: 100m
- Fire tests: BS EN 50200 (120 minutes, 830°C flame with impact); BS 8434-2 (120 minutes, 930°C flame, impact and water spray)
- Matching Prysmian accessories: nylon FP gland 403PR52, P-clip 386PR09, FP-Firefix single FPNF03R
