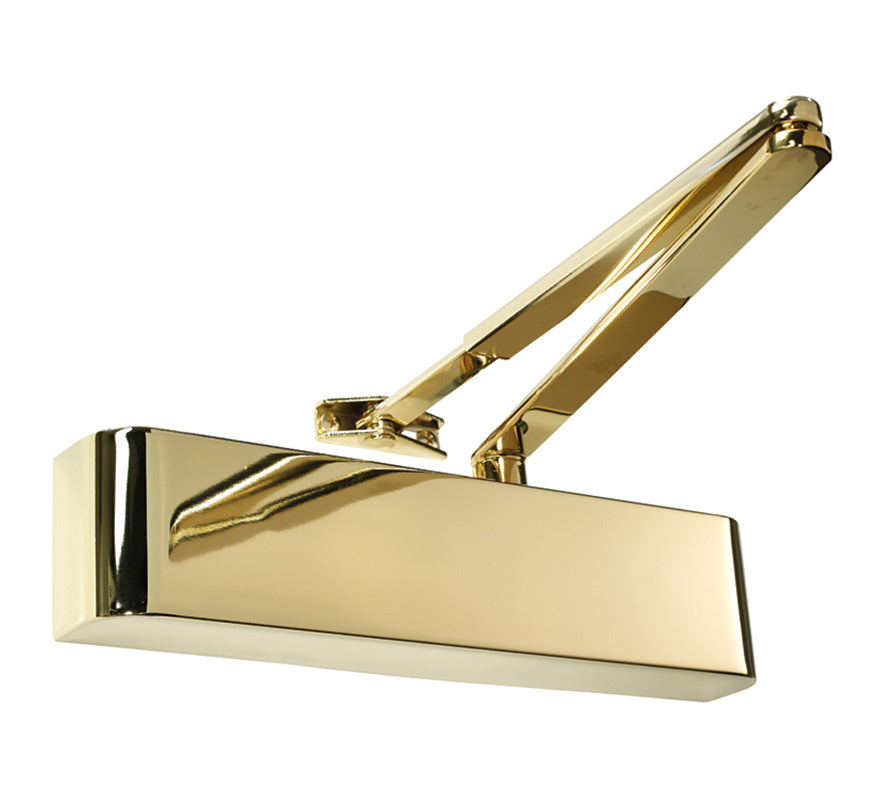

The Rutland TS.5204 is an economical, power-adjustable scissor arm overhead door closer with back check as standard, supplied here as the combined unit (TS.5204BC.SRFB.PVDPVD) in a polished brass finish. Low opening force helps meet BS 8300 and Approved Document M requirements, and it is fire tested for FD30 to FD120 timber doors.
Key features
- Adjustable power size EN2 to EN4, set by spring
- Back check as standard
- Low opening force, assists BS 8300 (suitable for Doc M contracts)
- Universal fitting: standard, parallel arm or transom
- Certifire approved (CF6018), CE and UKCA marked
- Easy-to-use template fitting instructions
Technical specifications
- Product code: TS.5204BC.SRFB.PVDPVD
- Finish: Polished Brass
- Power size: EN2 to EN4, adjustable by spring
- Maximum door width: 1100 mm (pull side 360 to 1100 mm; push side 485 to 985 mm)
- BS 8300 door width: 920 mm (fig. 1), 887 mm (fig. 66)
- Maximum door weight: <80 kg
- Opening angle: 180° pull side; 105° parallel arm push side
- Fire rating: FD30 to FD120 timber doors
- Certification: Certifire CF6018, CE 1812, BS EN 1154, BS EN 1634-1, BS EN 1634-3
- Dimensions (including cover): W 258 x H 68 x D 45 mm
- Hold-open: optional (not for fire doors)
What's in the box
- Door closer with back check
- Flat bar armset
- Cover
- Parallel arm (PA) bracket
