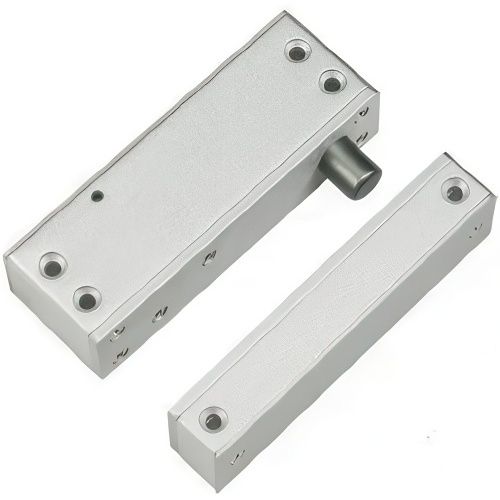

Name: STP STP-EB165 Surface Mount Fail Safe Monitored Solenoid Bolt
Brand: STP
SKU: STP-EB165
Price: 50.20 GBP
Availability: InStock

STP STP-EB165 Surface Mount Fail Safe Monitored Solenoid Bolt

Roll over image to zoom in Click on image to zoom

The EB165 is a surface mount solenoid bolt that is suitable for double action doors. Its compact design is ideal where space is restricted.

Main Features

Fail safe (= power to lock)
Satin anodised aluminium finish
Compact design gives neat appearance
Lock monitored
LED indicator
Adjustable lock delay: 0 seconds & 3 seconds
Supplied with fixings

Specifications

Application/Usage	Double action doors; Where space is restricted
Features	Adjustable lock delay: 0 seconds & 3 seconds; Compact design gives neat appearance; Fail safe (= power to lock); LED Indicator; Lock monitored; Satin anodised aluminium finish; Supplied with fixings
Finishing	Satin Anodised Aluminium
Holding Force	500.00kg
Input Voltage	12V DC
Limited Warranty	1-Year
Material	Aluminium
Mount Type	Surface Mount
Product Type	Solenoid Bolt
Security Configuration	Fail Safe
Dimensions	Bolt body: 113.5 mm L x 39.2 mm H x 27 mm D; Keep body: 113.5 mm L x 20 mm H x 27 mm D
Localization	English
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Product Manual
