- M200 range: M201EA Single Output Module (this product), M210EA Single Input Module, M220EA Dual Input Module, M221EA Dual Input – Single Output Module
- Common mechanical platform for modules’ enclosure
- Low standby current
- FACP reads module power voltage
- High Power Loop 48V ready
- Built-in short circuit isolators
Frequently bought together
Product details

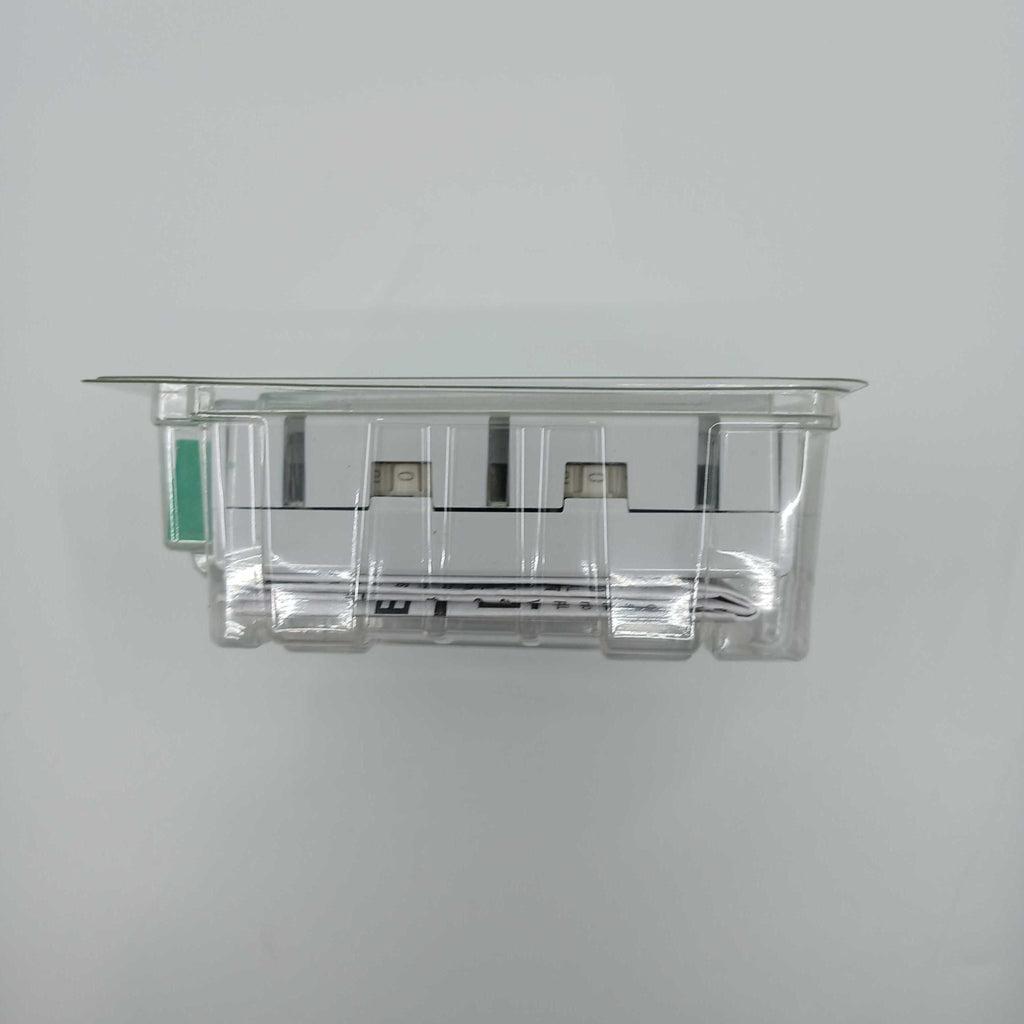

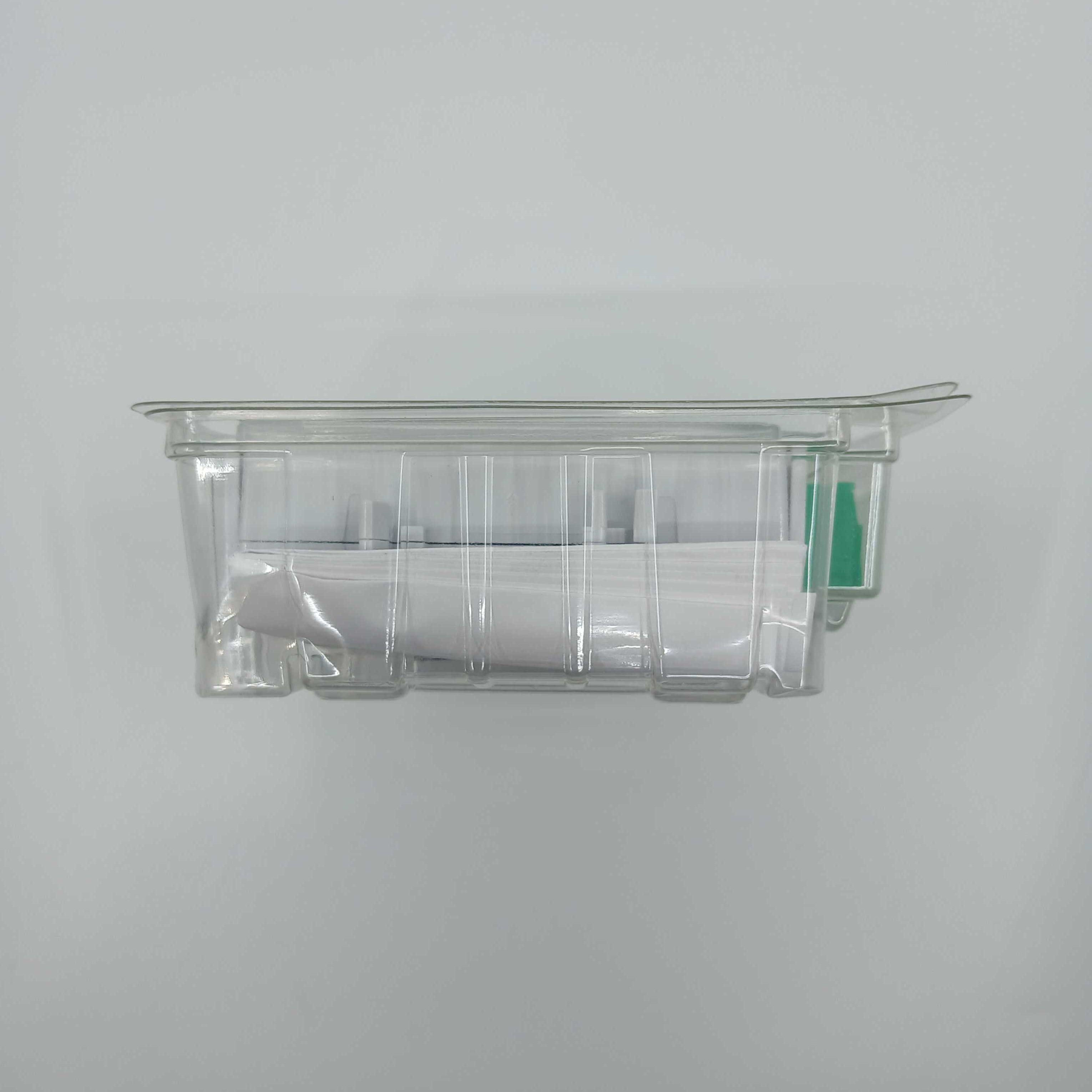

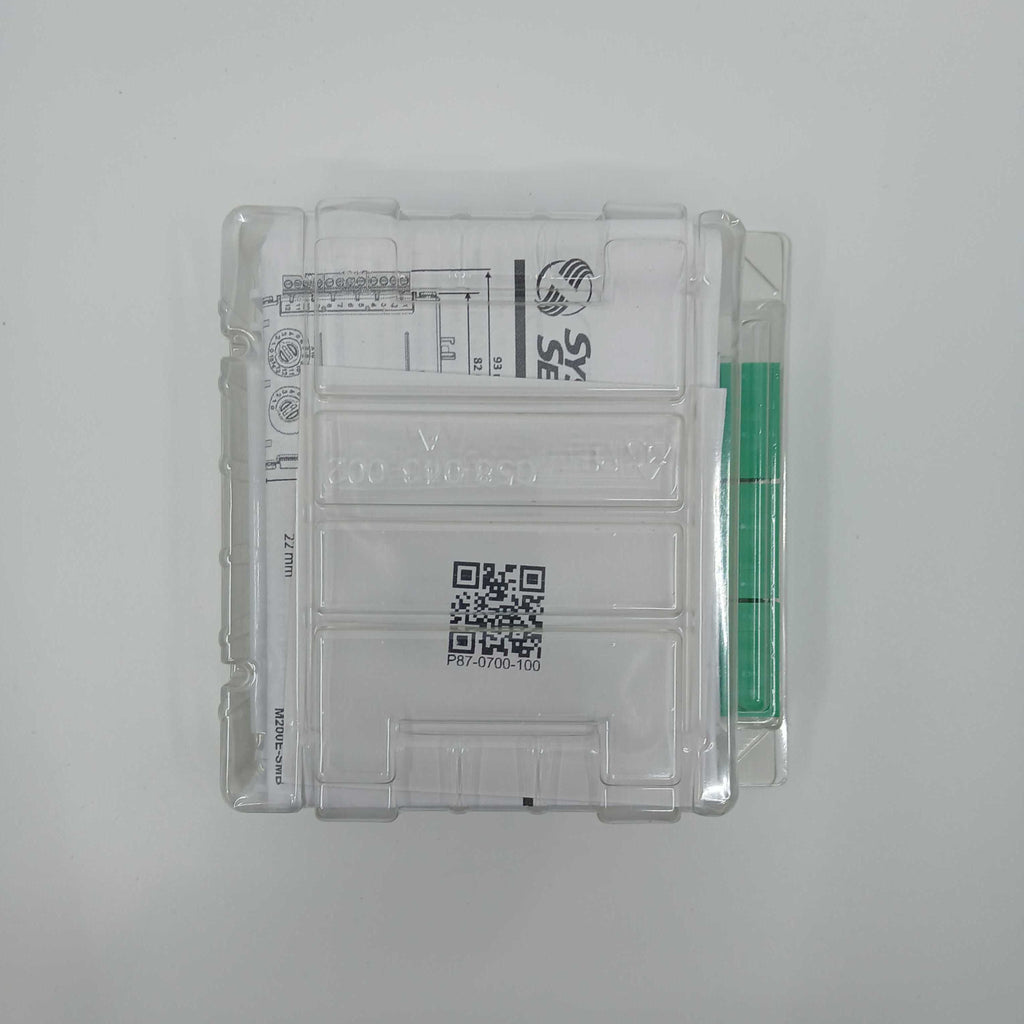

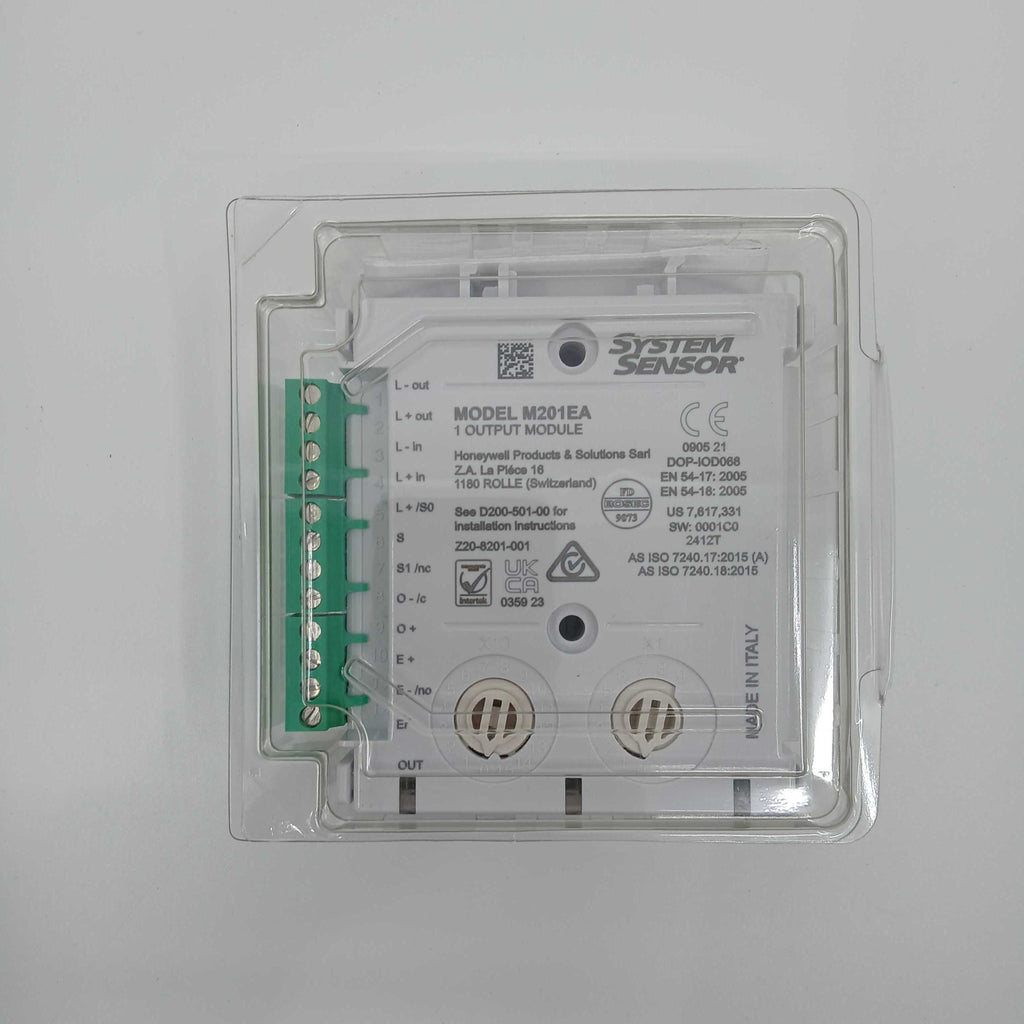

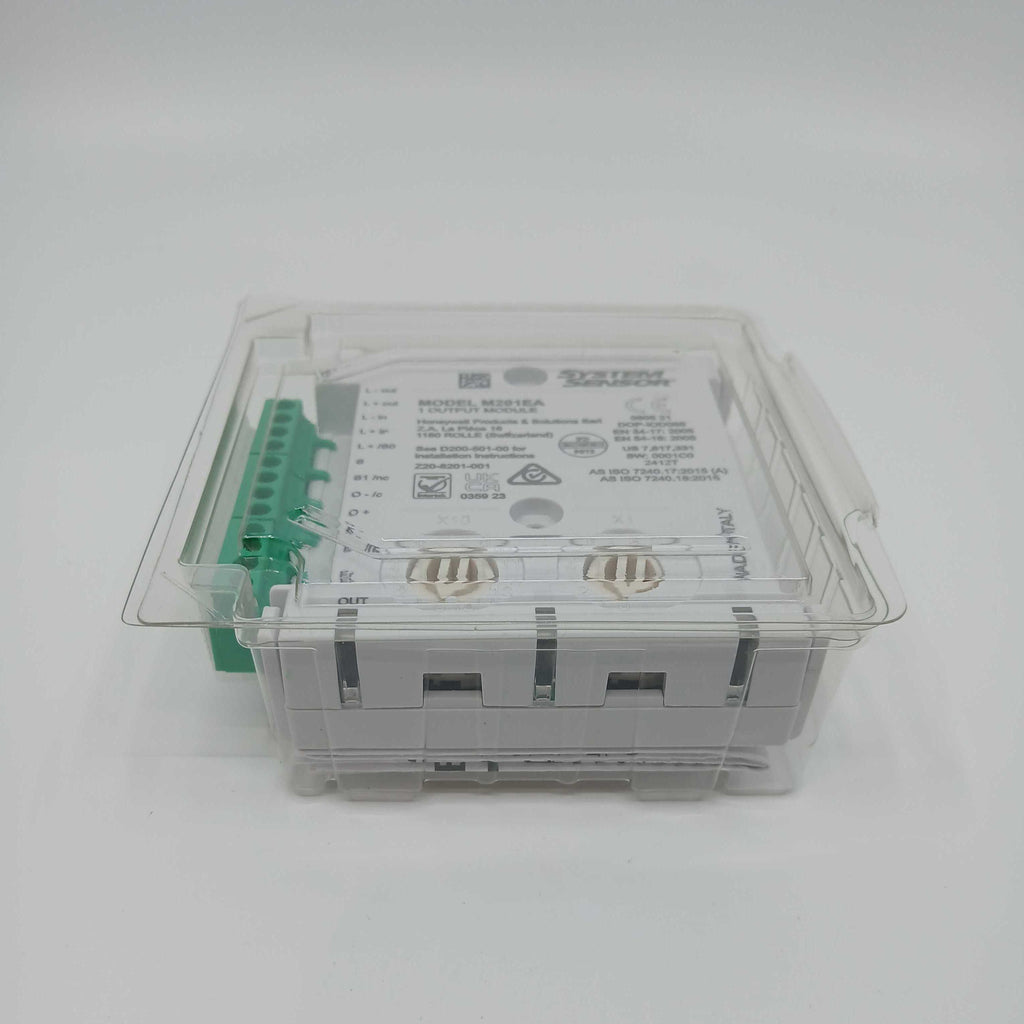

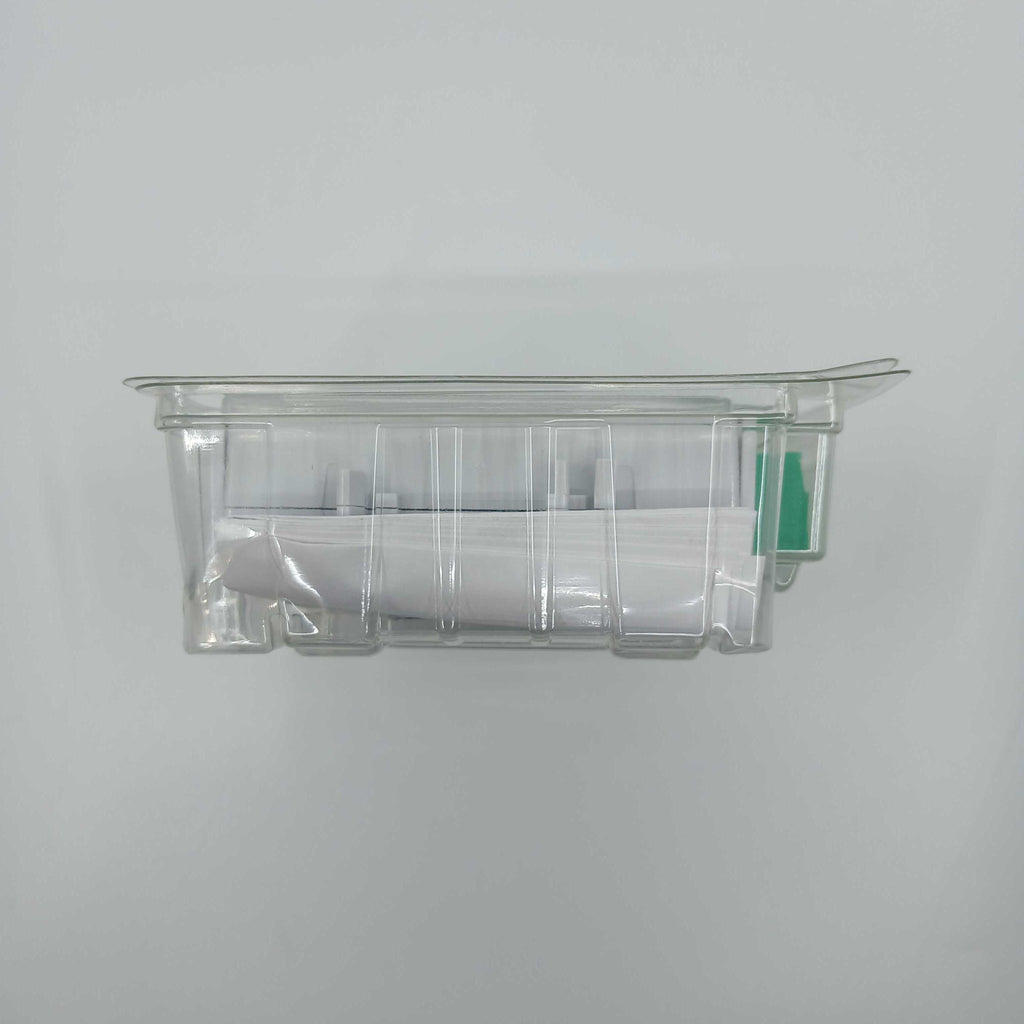

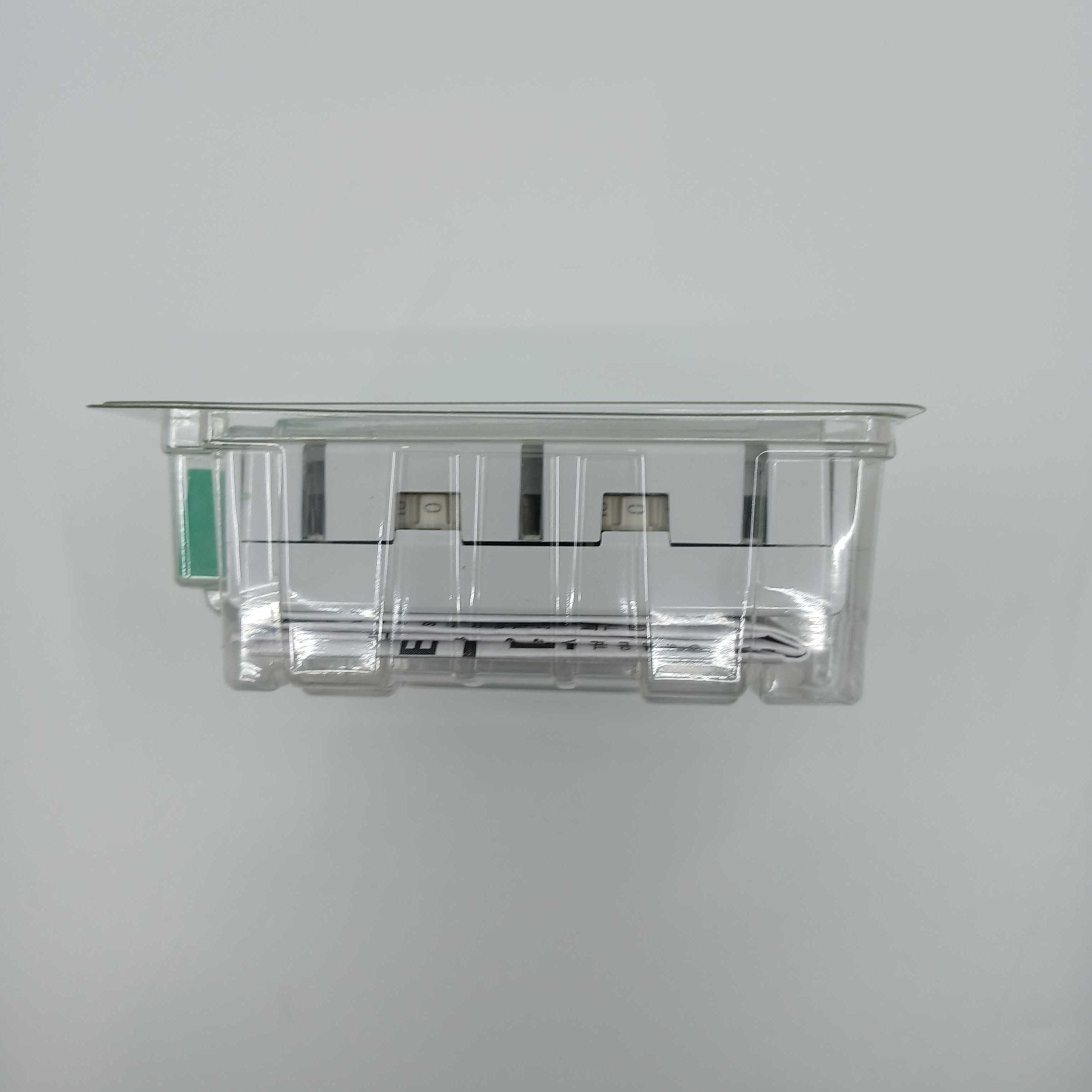

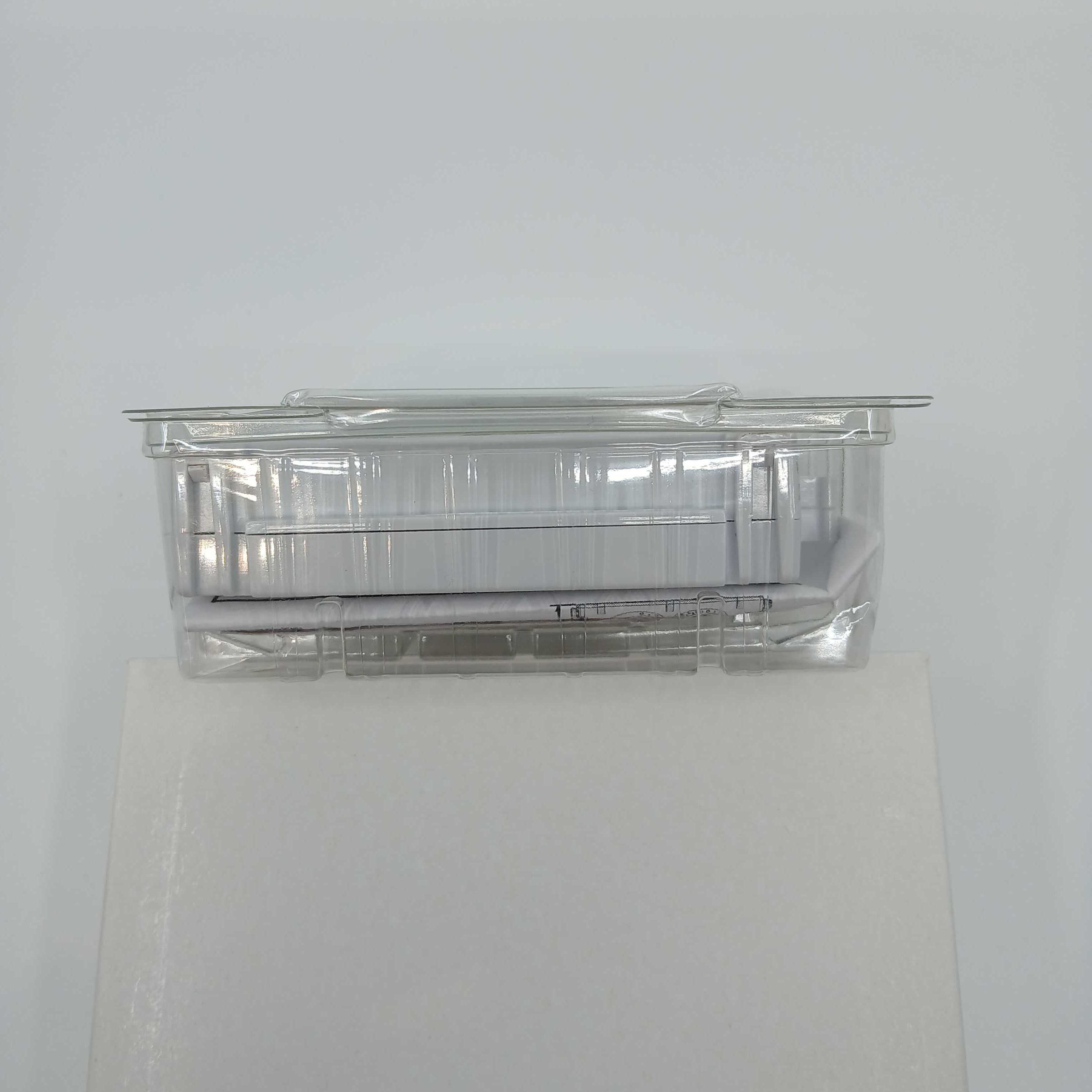

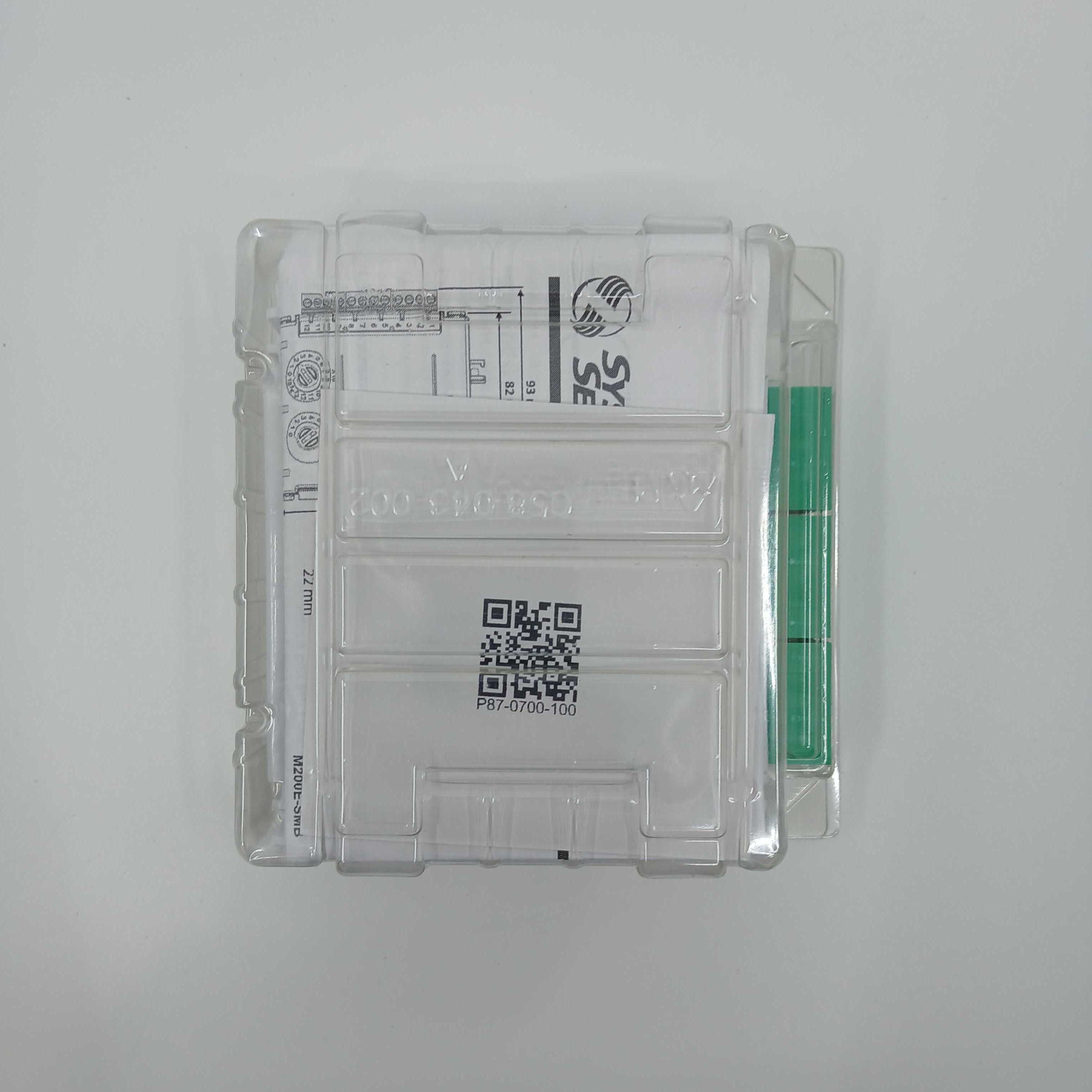

The System Sensor M201EA is an addressable single output module from the M200 range, used to switch sounders, door holders, plant shutdown and other fire alarm cause-and-effect outputs.
Note: requires M200E-SMB for surface mounting or M200E-DIN for mounting to DIN rails.
The new M200 look and feel combine maximum reliability with top-end functionality. Their unique mechanical design allows each module to be mounted in either a common wall box, on a DIN rail or its dedicated enclosure.
- M200 range: M201EA Single Output Module (this product), M210EA Single Input Module, M220EA Dual Input Module, M221EA Dual Input – Single Output Module
- Common mechanical platform for modules’ enclosure
- Low standby current
- FACP reads module power voltage
- High Power Loop 48V ready
- Built-in short circuit isolators
- Addressability through rotary switches
- Tri-colour Light Pipe
- Improved Light Pipe visibility on two sides

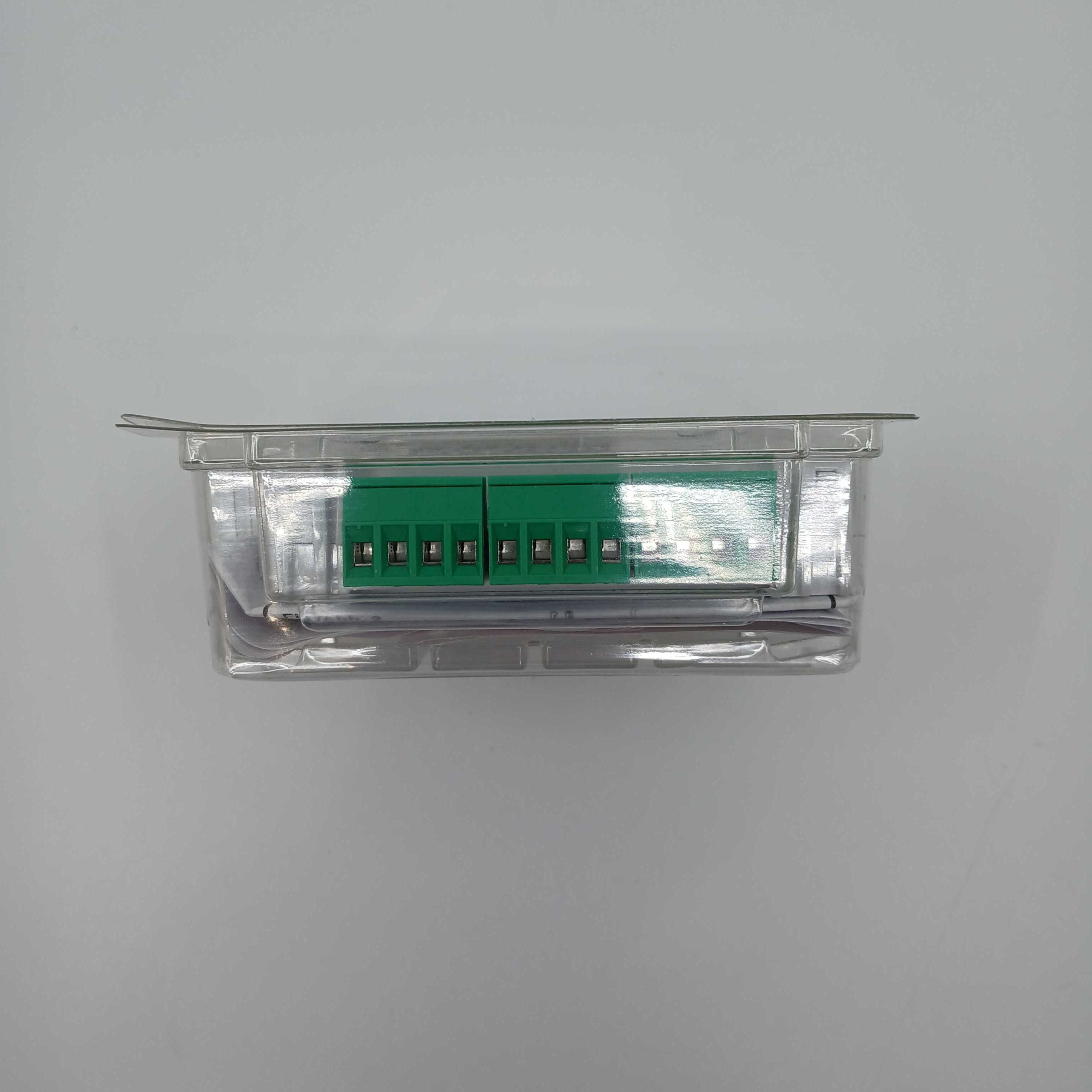

- Plug-in field wiring terminals
- Integrated DIN rail brackets
- Lasered engraved label data
- IP rate 30
- Intertek Approved
Specification
| Product code | M201EA |
|---|---|
| Brand | System Sensor |
| Range | M200 |
| Type | Addressable single output module |
| Isolator | Built-in short circuit isolator |
| Addressing | Rotary switches |
| Indicator | Tri-colour light pipe |
| Ingress rating | IP30 |
| Mounting | Wall box; M200E-SMB surface box or M200E-DIN rail (not included) |
| Approval | Intertek |
Frequently asked questions
Does the M201EA need a back box?
It can be mounted in a common wall box, on a DIN rail or in its dedicated enclosure. It requires the M200E-SMB for surface mounting or the M200E-DIN for mounting to DIN rails.
How is the module addressed?
Addressing is set through rotary switches.
Does the M201EA have an isolator?
Yes, the M200 modules have built-in short circuit isolators.
