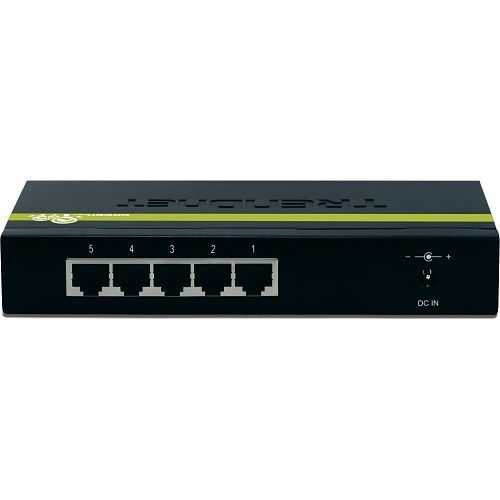

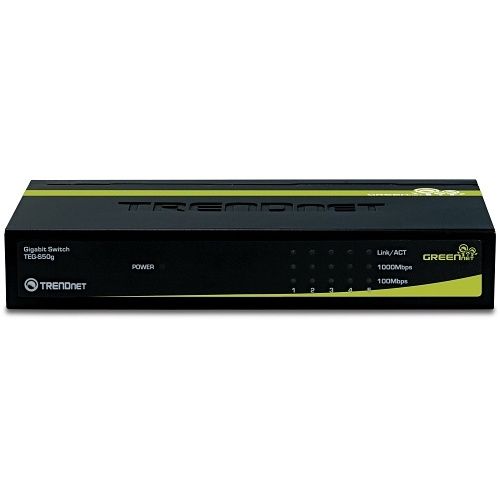

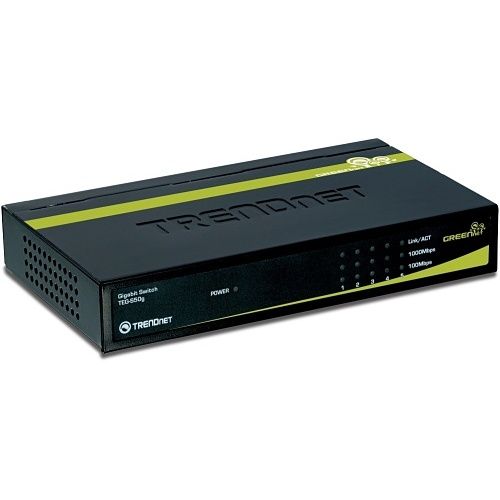

TRENDnet TEG-S50G 5-Port Gigabit GREENnet Switch, (Replaces TEG-S50G)
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- ETHERNET PORT CONFIGURATION: 5 Gigabit RJ-45 ports provide high-speed network connections to devices and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
- DESKTOP DESIGN: With a compact and lightweight metal housing design, this Ethernet switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.
- ENERGY SAVINGS: The 5-Port Gigabit GREENnet Switch, model TEG-S50g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
- MOUNTING OPTIONS: Wall Mountable
- PLUG-AND-PLAY: Easy setup, simply power up the switch and plug in connected devices
- LOW-NOISE OPERATION: Fanless design lowers energy consumption and eliminates operating noise
Frequently bought together
Product details
-
ETHERNET PORT CONFIGURATION: 5 Gigabit RJ-45 ports provide high-speed network connections to devices and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
-
DESKTOP DESIGN: With a compact and lightweight metal housing design, this Ethernet switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.
-
ENERGY SAVINGS: The 5-Port Gigabit GREENnet Switch, model TEG-S50g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.
-
MOUNTING OPTIONS: Wall Mountable
-
PLUG-AND-PLAY: Easy setup, simply power up the switch and plug in connected devices
-
LOW-NOISE OPERATION: Fanless design lowers energy consumption and eliminates operating noise
-
TRENDnet LIFETIME PROTECTION
Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 10Gbps with full-duplex mode. Integrate this sturdy metal switch for reliable high speed network connectivity.
Energy Savings
Embedded GREENnet technology provides cost savings and reduces power consumption by up to 70%, by limiting port power consumption during periods of low link utilization.
Gigabit Speeds
5 gigabit ports provide high-speed network connections to devices and a 10Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Compact Design
With a compact and lightweight metal housing design, this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation.
PACKAGE CONTENTS
- TEG-S50g
- Quick Installation Guide
- Power adapter (5V DC, 1A)
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Depth | 203.20mm |
|---|---|
| Energy Star | Yes |
| Environmental Certification | CE |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Features | 10Gbps switching capacity; 5 x Gigabit ports; Plug and Play installation; Sturdy metal switch; Up to 70% energy savings with GREENnet technology |
| Frequency | 50Hz |
| Height | 50.80mm |
| Input Voltage | 240V AC |
| Length | 116.80mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | Wall Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Network Switch Type | Unmanaged |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Package Contents |
|
| PoE (RJ-45) Port | No |
| Power Consumption | 2.7500W |
| Power Source | AC Power |
| Product Line | GREENnet |
| Product Series | TEG |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 5 |
| Width | 152.40mm |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Modular | No |
| Networking Standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3u; IEEE 802.3x |
| Power over Ethernet (PoE) | No |
| RoHS Compliant | Compliant |
| Shared SFP Slot | No |
| Uplink Port | No |
| WEEE Compliant | Compliant |
Downloads
Datasheet
TRENDnet TEG-S50G 5-Port Gigabit GREENnet Switch, (Replaces TEG-S50G) Need the datasheet? Our team will email it to you. Request datasheet
