| Application/Usage |
Network PoE devices such as wireless access points, IP cameras, VoIP phone systems, IPTV decoders, access controls and more |
| Compatibility |
Cat5e Cabling; Cat6 Cabling; Cat6a Cabling; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3an; IEEE 802.3at; IEEE 802.3bz; IEEE 802.3u |
| Data Transfer Rate |
10Gbps |
| Features |
10GBASE-T compliant; Auto-sensing technology; Converts a non-PoE port to a PoE+ port; IEEE 802.3af and 802.3at compliant; Magnetic wall-mount design; NDAA / TAA compliant; Network a PoE device up to 100m (328 ft.) over Cat6A or better cabling; Supplies PoE (15.4W) or PoE+ (30W) |
| Height |
28.6mm |
| Input Voltage |
54V DC |
| Limited Warranty |
3-Year |
| Maximum Data Transfer Rate |
10Gbps |
| Maximum Operating Distance |
100m |
| Maximum Output Power |
30W |
| NDAA Compliant |
Yes |
| Network (RJ-45) |
Yes |
| Number of Network (RJ-45) Ports |
2 |
| Output Power |
30W |
| Package Contents |
Power adapter (54V DC, 1.67A); TPE-315GI |
| PoE (RJ-45) Port |
Yes |
| Power Consumption |
0W |
| Product Series |
V1 |

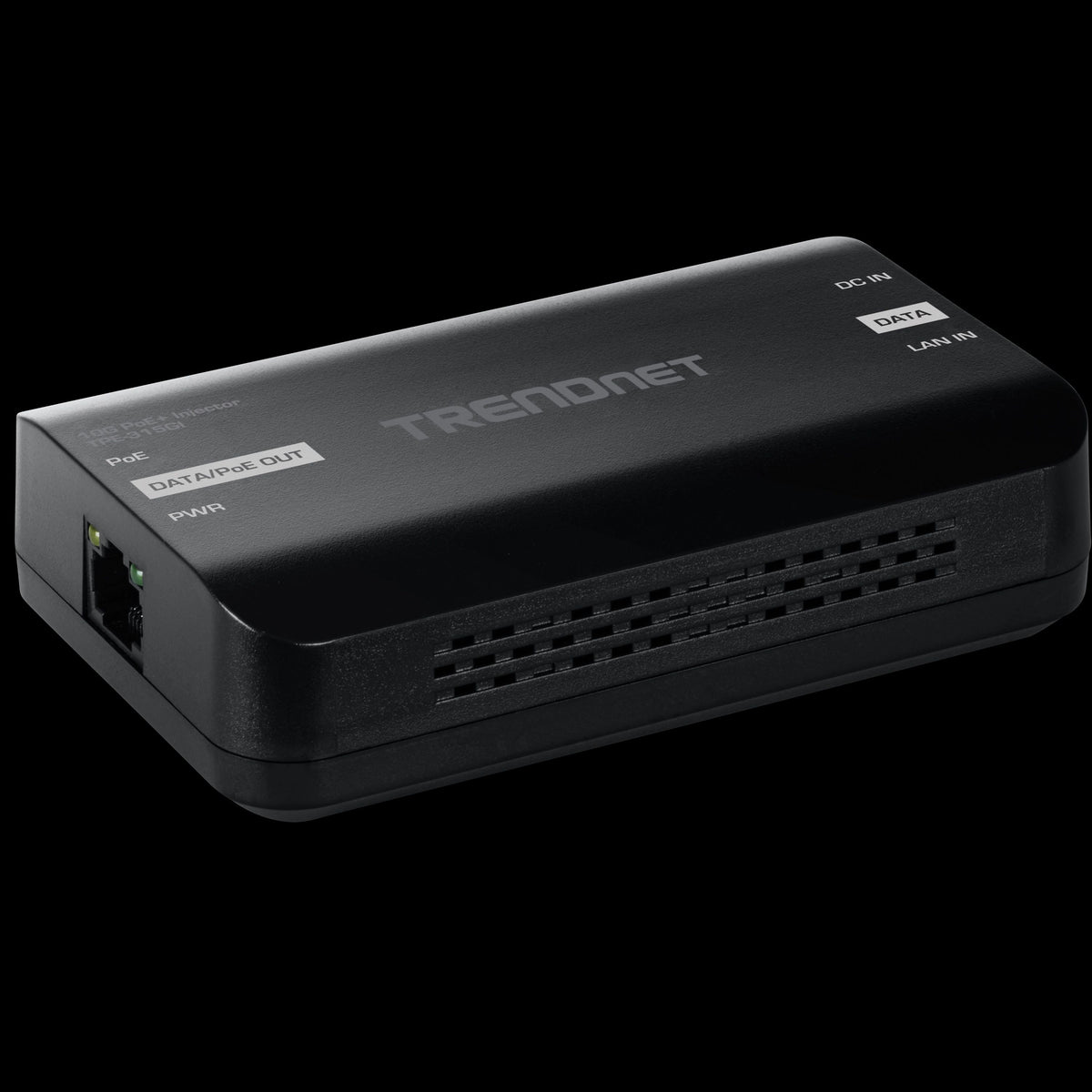

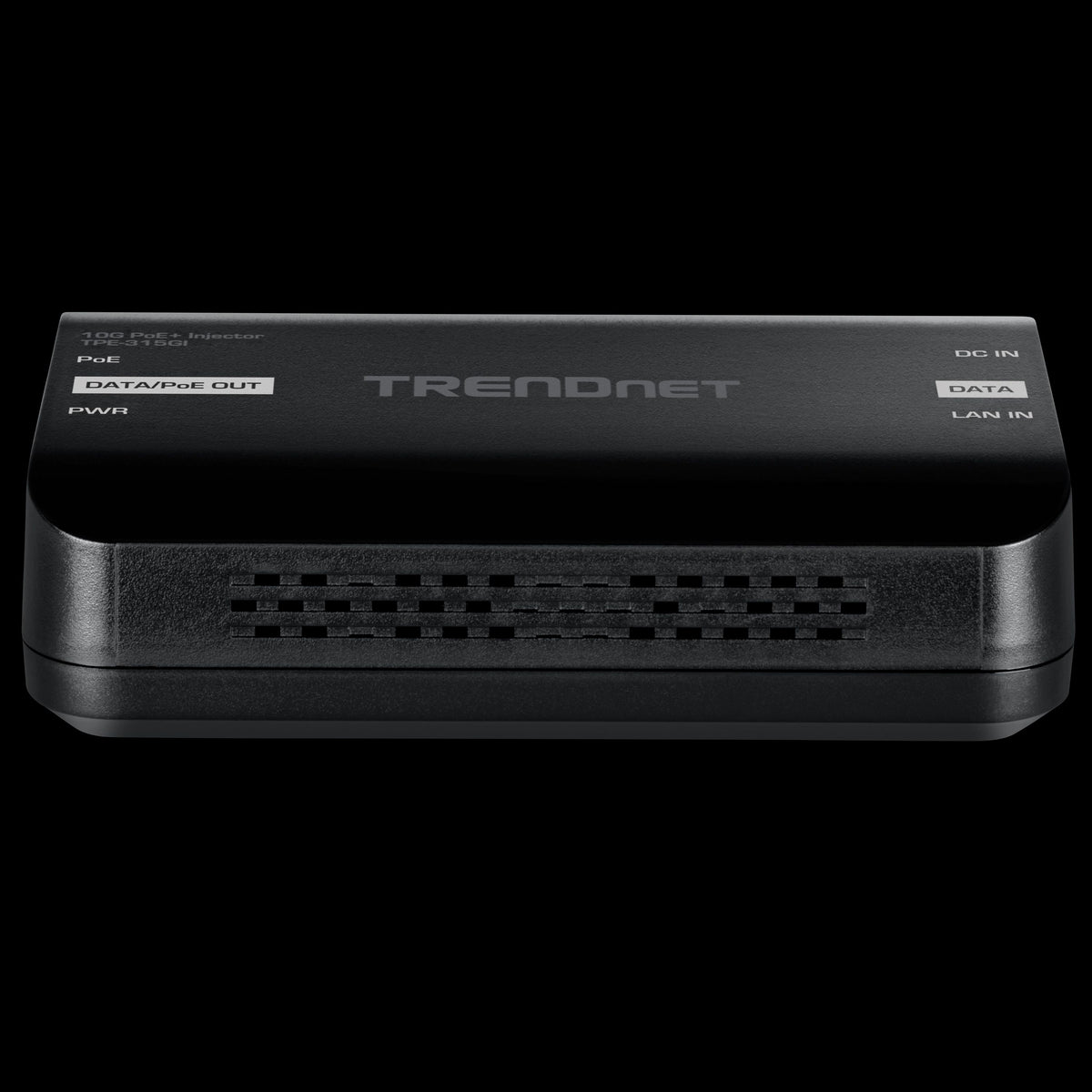

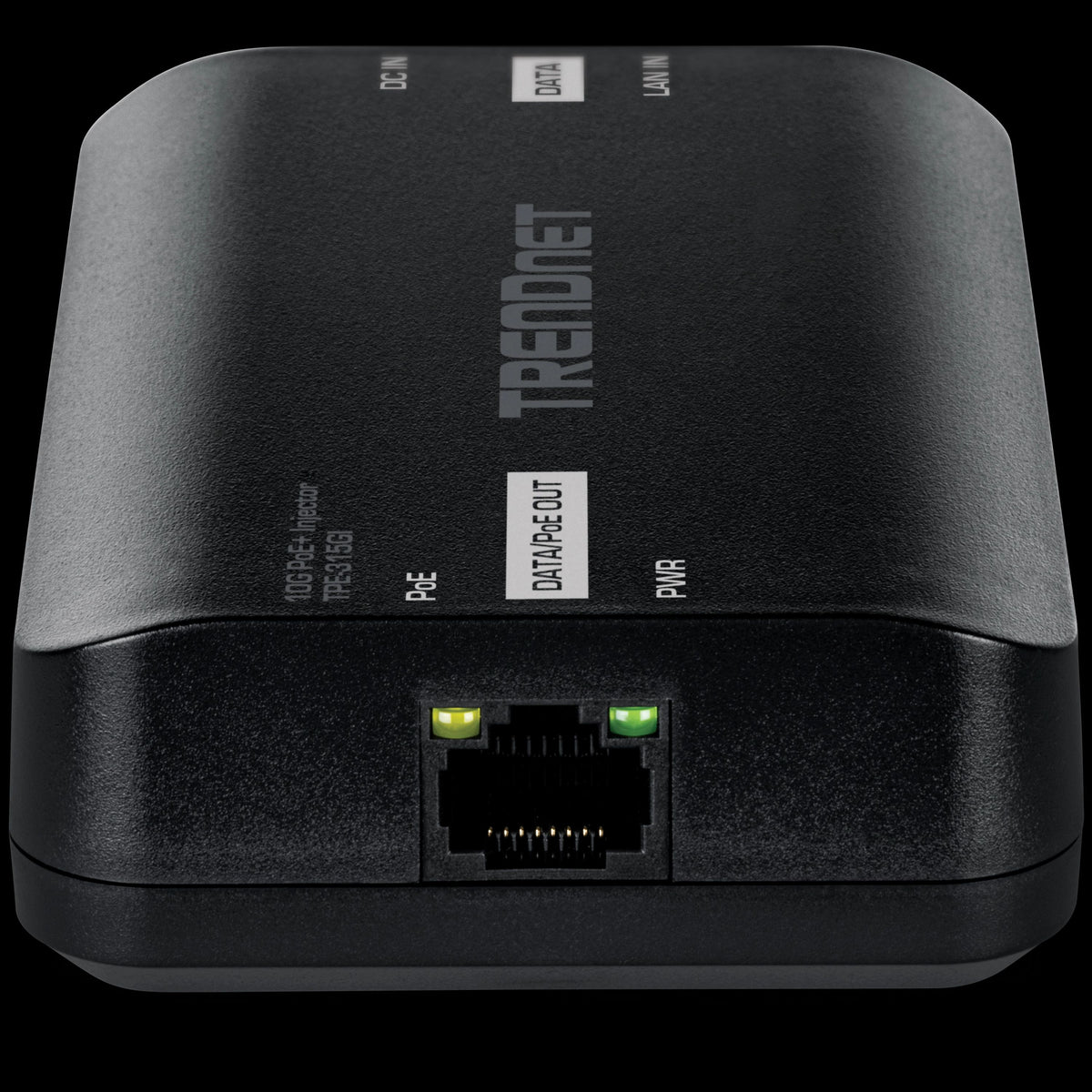

| Product Type |
PoE+ Injector |
| Status Indicators |
Network connectivity; PoE |
| TAA Compliant |
Yes |
| Total Number of Network Ports |
2 |
| Weight |
0.10kg |
| Width |
70.0mm |
| Maximum Operating Temperature |
50°C |
| CE Marking |
Yes |
| Certifications & Standards |
CE; FCC; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3an; IEEE 802.3at; IEEE 802.3bz; IEEE 802.3u |
| Dimensions |
109.7mm x 70mm x 28.6mm |
| Maximum Input Current |
1A |
| Maximum Transfer Distance |
100m |
| Minimum Operating Temperature |
0°C |
| Number of Ethernet Ports |
2 |
| Operating Relative Humidity (H-H) |
90% (Non-condensing) |
| Operating Temperature (T-T) |
0-50°C |
| Power over Ethernet (PoE) |
Yes |
| Power Supply |
DC |
| Relative Humidity |
90% (Non-condensing) |
| RoHS Compliant |
Compliant |
| WEEE Compliant |
Out of Scope |
