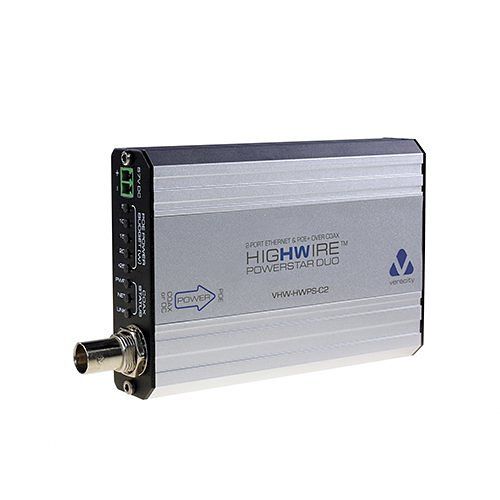

HIGHWIRE Powerstar Duo makes the most of your legacy cabling and multiplies its capability by connecting two IP cameras or other network devices
HIGHWIRE Powerstar Duo's unique ultra low-power design and efficient power delivery enables long range Ethernet over coax. It works even over the lowest grade cable, such as the high-resistance, copper-clad steel (CCS) types found in many legacy installations. This means that legacy coax upgrades can be planned with confidence, while a quick check of the Safeview™ power level display reaffirms that the device connections will continue to be reliable, whatever the cable used. For predictable network operation with no restrictions, HIGHWIRE technology delivers a full 200Mbit/s of bandwidth at 300m (1000 ft) of RG-59 or 500m (1600 ft) of RG-11 coax. For full information on POE-over-Coax™ distances achievable, please refer to the Range Table in the HIGHWIRE Powerstar datasheet. For POE power budget and power supply options, see the POE Power Budget Table opposite.
Main Features
Works with any IP camera or device
Instantly check connection and power level with SafeView
Completely automatic connection, no configuration required
