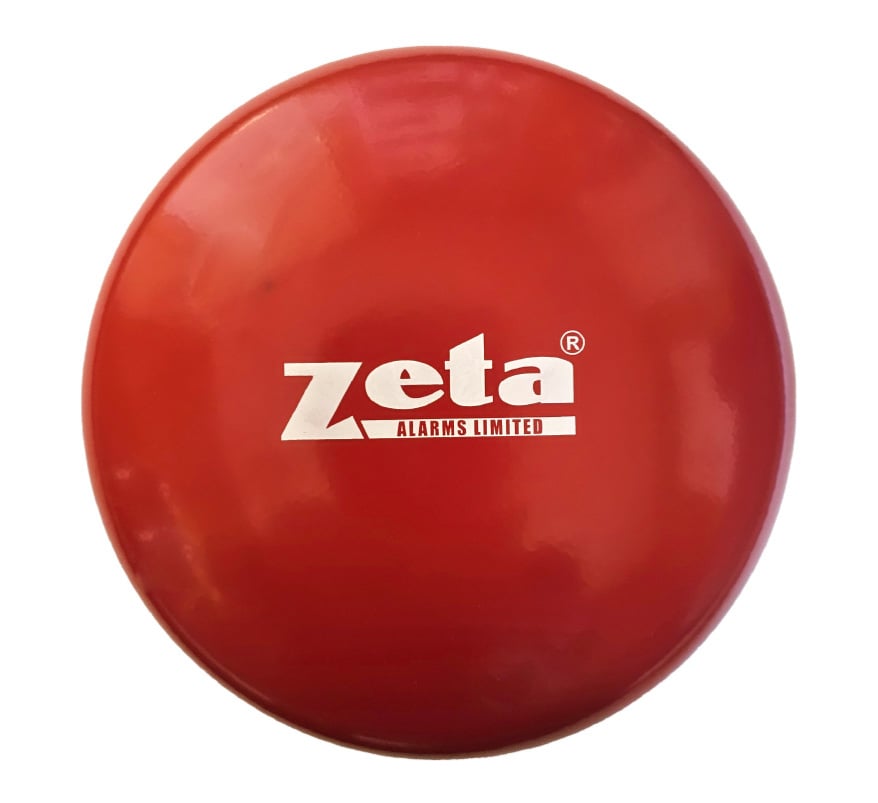

The Zeta ZT-BELL/6/D is a 24V conventional fire alarm bell with a 6" red aluminium gong and a deep base, for indoor use on conventional fire alarm sounder circuits. The deep base has four glanded cable entries for surface mounting.
Key features
- Aluminium gong, permanently fitted
- High output with moderate current consumption; designed to replace the need for an 8" bell
- Termination box allows access to the back box without special tools
- Anti-tamper screw to prevent unauthorised opening
- LPCB certified (330y/01)
- Made in the United Kingdom
- Deep base with 4 glanded cable entries
Technical specifications
- Rated voltage: 20.4 to 27.6V DC
- Rated current: 12mA @ 24V
- Starting voltage: 11V
- Sound output: 96dB(A) @ 1m (max)
- Gong: red, aluminium
- Terminals: 0.5 to 2.5mm² cables
- Operating temperature: -25°C to +70°C
- IP rating: IP33C
- Weight: 497g
