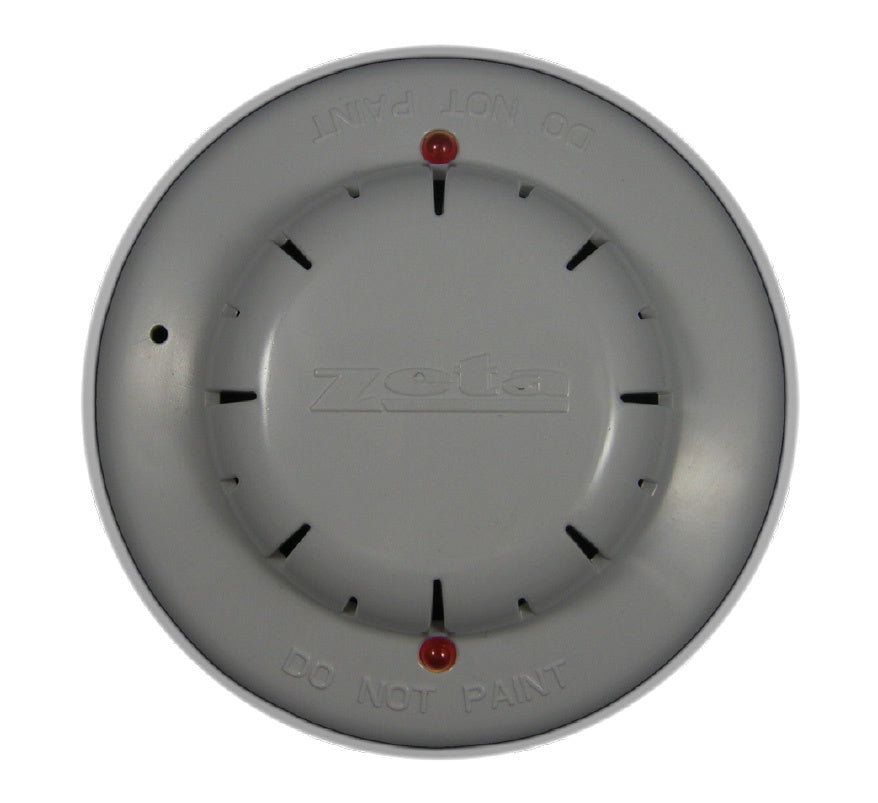

The Zeta CO800G is an analogue addressable carbon monoxide detector supplied with a mounting base, rated IP54. It is designed specifically for use with the Zeta Simplicity CO addressable carbon monoxide monitoring and ventilation panel. It uses an electro-chemical sensor with a detection range of 0 to 600ppm, and its address is set with a binary DIP switch on the rear of the detector.
Key features
- Electro-chemical CO sensor, 0-600ppm range
- For use with Zeta Simplicity CO panels
- Address set via binary DIP switch
- IP54 rated with mounting base
- Optimum mounting height between 1.5m and 2m from the floor
- Can be tested safely using a CoCheck test canister and dispenser
Technical specifications
- Part number: 47-016
- Operating voltage: 17-28V DC
- Standby current: 500µA @ 24V DC
- Operating temperature: -20°C to +60°C
- Maximum humidity: 95% RH non-condensing
- Ingress protection: IP54
- Coverage: 300m²
- Sensor lifetime: 5 years maximum
