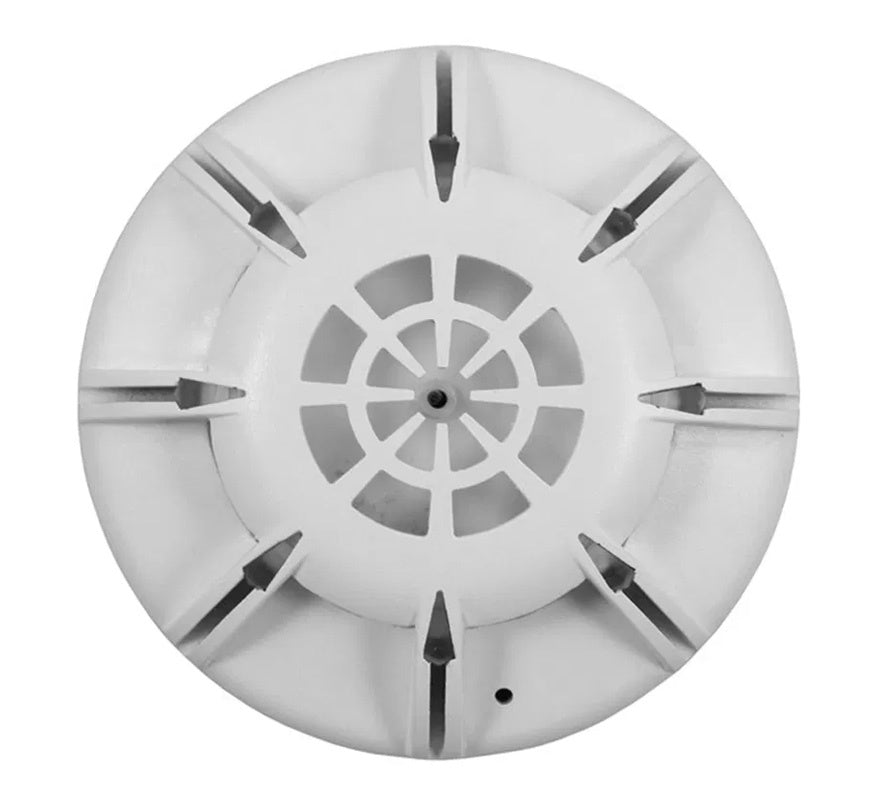

Zeta Fyreye MKII Addressable Fixed 57°C Heat Detector (MKII-AHF)
SKU: MKII-AHFBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Fixed heat trigger at 57°C, Class A2S
- Designed to EN54 part 5; LPCB approved
- Lockable to base to stop unauthorised removal
- 8 LEDs for improved 360° visibility
- Remote LED output
- Compatible with all Fyreye MKII bases
Frequently bought together
Zeta
Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Low Voltage Rated) (ZAIO-MI)
Sale price£48.60
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Fyreye MKII Addressable Input/Output Module with Isolator (Mains Voltage Rated) (ZAIO/230)
Sale price£55.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Fyreye MKII Addressable Isolator Base and Cover (MKII-ISO)
Sale price£15.75
Out of stock. Lead time 2 to 6 weeks, estimate only
Product details
The Zeta Fyreye MKII-AHF is an addressable fixed temperature heat detector (Class A2S) for Zeta Fyreye MKII protocol addressable fire alarm systems. It uses a single thermistor arrangement that raises an alarm at 57°C.
Key features
- Fixed heat trigger at 57°C, Class A2S
- Designed to EN54 part 5; LPCB approved
- Lockable to base to stop unauthorised removal
- 8 LEDs for improved 360° visibility
- Remote LED output
- Compatible with all Fyreye MKII bases
- Addressed with DIP switches or the MKII handheld programmer
Technical specifications
- Part number: 80-214 (black version MKII-AHF/B: 80-214/B)
- Operating voltage: 17 to 28V DC
- Quiescent current: 500µA
- Alarm current: 5mA @ 24V DC
- Maximum humidity: 95% RH non-condensing
- Coverage: 50m²
- IP rating: IP43
- Start-up time: 10 seconds
- Size with base: 100 x 49mm
- Remote output: 5mA at 24V DC
- Operating temperature: -10°C to +50°C
