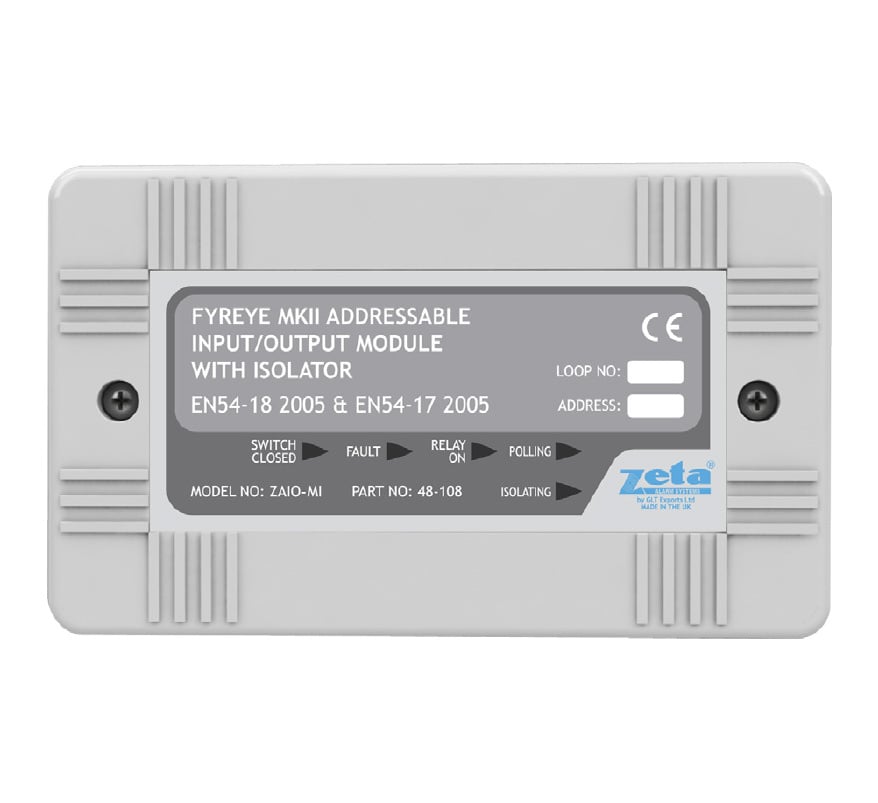

The Zeta ZAIO-MI is a loop-powered Fyreye MKII addressable input/output module with a built-in short circuit isolator, for Zeta MKII protocol addressable fire panels. It monitors a voltage-free input and at the same time switches a local SELV relay output, for example to control lifts during an alarm, start a fire pump or stop ventilation fans. It is housed in a 2 gang size enclosure supplied with a back box for surface mounting indoors.
Key features
- Combined monitored input and relay output
- Integral short circuit line isolator
- Loop powered, up to 60 devices per loop
- Hard addressed with the 8 way DIP switch or soft addressed with the MKII handheld programmer
- Front LEDs for switch closed, relay on, fault, polling and isolating
- Designed to EN54-18 and EN54-17
Technical specifications
- Part number: 48-108
- Operating voltage: 17-28V DC
- Quiescent current: 1.0mA @ 24V
- Relay rating: SELV @ 1A
- Isolating current: 7.3mA
- Input end of line: 20k; alarm trigger resistor: 1k
- Operating temperature: -10°C to +55°C
- Maximum humidity: 95% RH non-condensing
- IP rating: IP21C
- Size: 150 x 90 x 45mm; weight 220g
