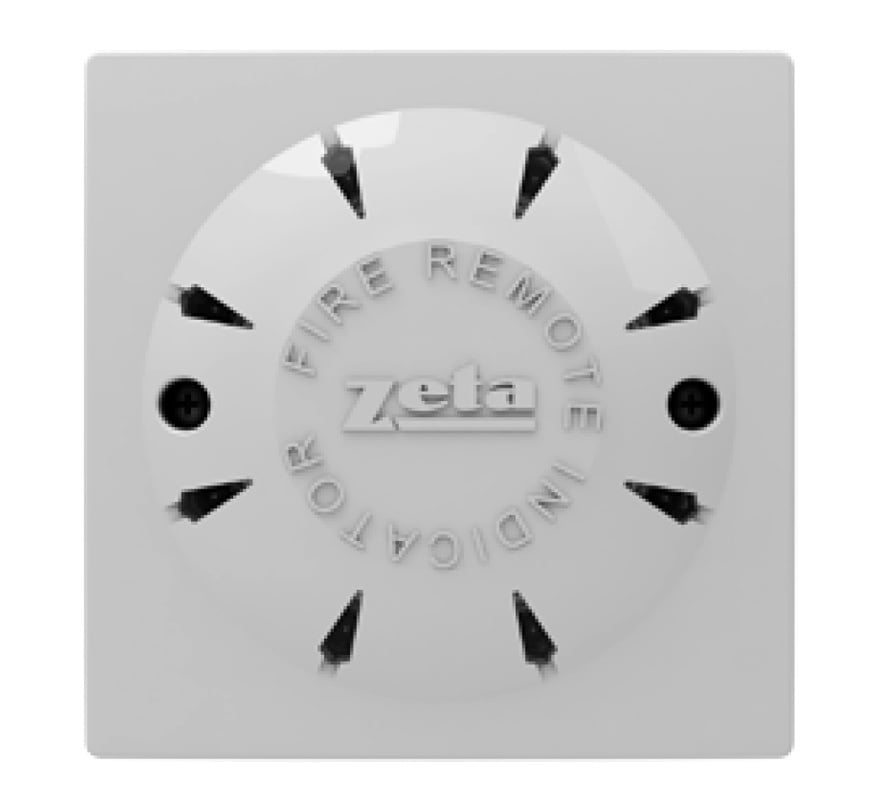

The Zeta Fyreye MKII-ARL/W is a wall mounted addressable remote LED indicator for Zeta Fyreye MKII protocol addressable fire alarm systems. Because it is addressable and connects directly to the loop, it can repeat the alarm state of one device or of up to 12 devices.
Key features
- 8 LEDs that mimic the detector LED in alarm
- Connects directly to the detection loop
- Each indicator can be programmed for one device or up to 12 devices
- Hard addressed via 8 way DIP switch or soft addressed with the MKII handheld programmer
- Wall mounted
Technical specifications
- Part number: 48-034
- System voltage: 17 to 28V DC
- Quiescent current: 450µA
- Alarm current: 2.10mA
- IP rating: IP43
- Dimensions: 85.5 x 85.5 x 60mm (W x H x D)
