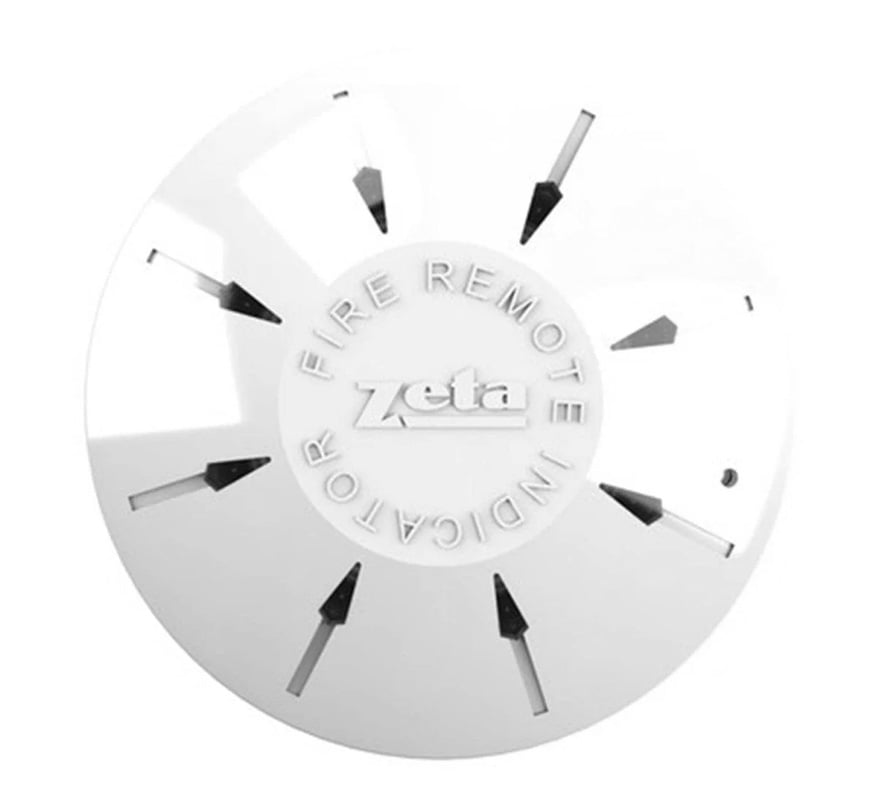

The Zeta Fyreye MKII-ARL/C is a ceiling mounted addressable remote LED indicator for Zeta Fyreye MKII protocol addressable fire alarm systems. It requires a base (MKII-CB). Because it is addressable and connects directly to the loop, it can repeat the alarm state of one device or of up to 12 devices.
Key features
- 8 LEDs that mimic the detector LED in alarm
- Connects directly to the detection loop
- Each indicator can be programmed for one device or up to 12 devices
- Hard addressed via 8 way DIP switch or soft addressed with the MKII handheld programmer
- Ceiling mounted; requires a base
Technical specifications
- Part number: 48-033
- System voltage: 17 to 28V DC
- Quiescent current: 450µA
- Alarm current: 2.10mA
- IP rating: IP43
- Dimensions: 100mm diameter x 40mm deep
