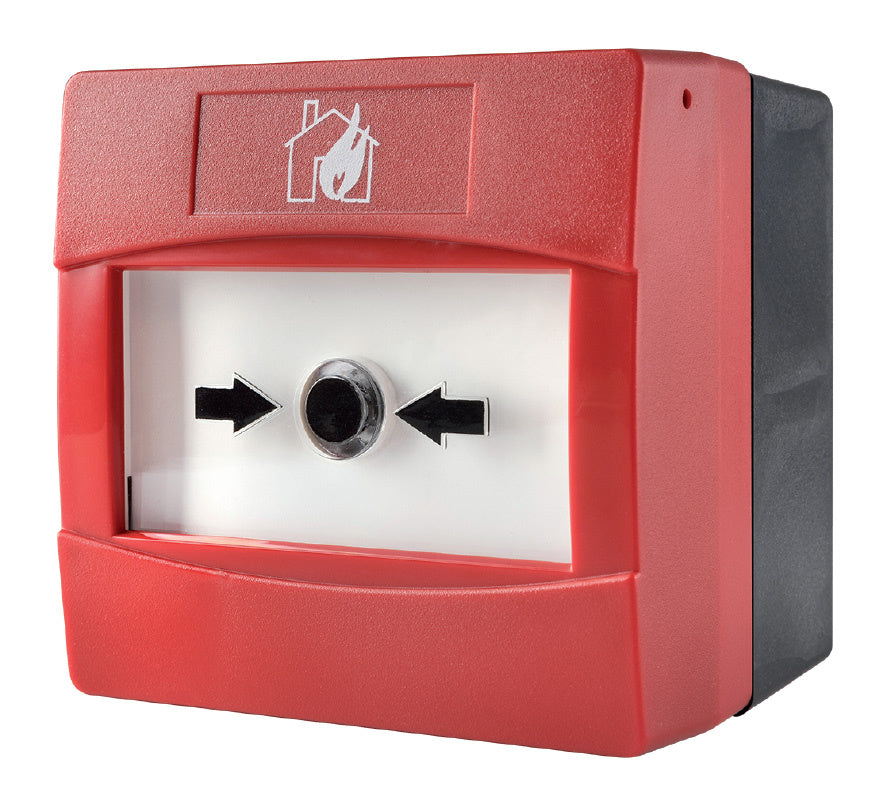

The Zeta ZT-CP4/WP is a red, IP67 weatherproof version of Zeta's resettable CP4 conventional manual call point, approved to EN54-11. When the resettable element is pressed, a spring mechanism mimics the feel of breaking glass and the element returns, while a reflective polyester flag appears at the bottom of the operating face to give a highly visible alarm indication.
Key features
- EN54-11 approved; LPCB approved (959a-(cl-2)); CPR 2831-CPR-F4661
- IP67 weatherproof housing
- Resettable element that mimics the feel of breaking glass
- Reflective alarm flag for very high visibility of the alarm condition
- Patented spring-free mechanism operates the flag and switch for long, trouble-free life
- High impact resistant ABS glass fibre material
Technical specifications
- Minimum voltage: 5.0V with LED/R1, 6.0V with LED/R2
- Current (operated): 19mA @ 12V and 45mA @ 24V with R1; 13mA @ 12V and 31mA @ 24V with R2
- Maximum voltage: 30V
- Current (non-operated): 0mA
- Cable termination: 0.5 to 2.5mm²
- Operating temperature: -30°C to +70°C
- Humidity: 0 to 95%
- Material: ABS/polycarbonate/PA6 + glass fibre
- IP rating: IP67
