Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
SKU: ZRAPB/RBrand: Zeta
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (Red) (ZRAPB/R)
£62.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complies with EN54 part 3 Type B and EN54 part 23
- Beacon coverage: W-3.0-8.7
- 16 tone patterns (approved tones: Tone 0 and Tone 8)
- IP65 rating (certified to IP33C)
- Surface mounting only; UL V0 flame retardant ABS housing
- 3 x 20mm cable entries (2 top, 1 bottom)
Frequently bought together
Zeta
Zeta Raptor MKII Addressable Weatherproof Sounder VAD Beacon (White) (ZRAPB/W)
Sale price£62.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Reset Key for CP4/ID2 Manual Call Points (Pack of 10) (CP4-KEY)
Sale price£12.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Simplicity CO 2 Zone Addressable Carbon Monoxide Panel (32 Devices - Metal Enclosure) (S32/CO/M)
Sale price£615.85
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Simplicity CO 2 Zone Addressable Carbon Monoxide Panel (32 Devices) (S32/CO)
Sale price£502.05
Out of stock. Lead time 2 to 6 weeks, estimate only
Zeta
Zeta Simplicity CO 4 Zone Addressable Carbon Monoxide Panel (64 Devices - Metal Enclosure) (S64/CO/M)
Sale price£664.05
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

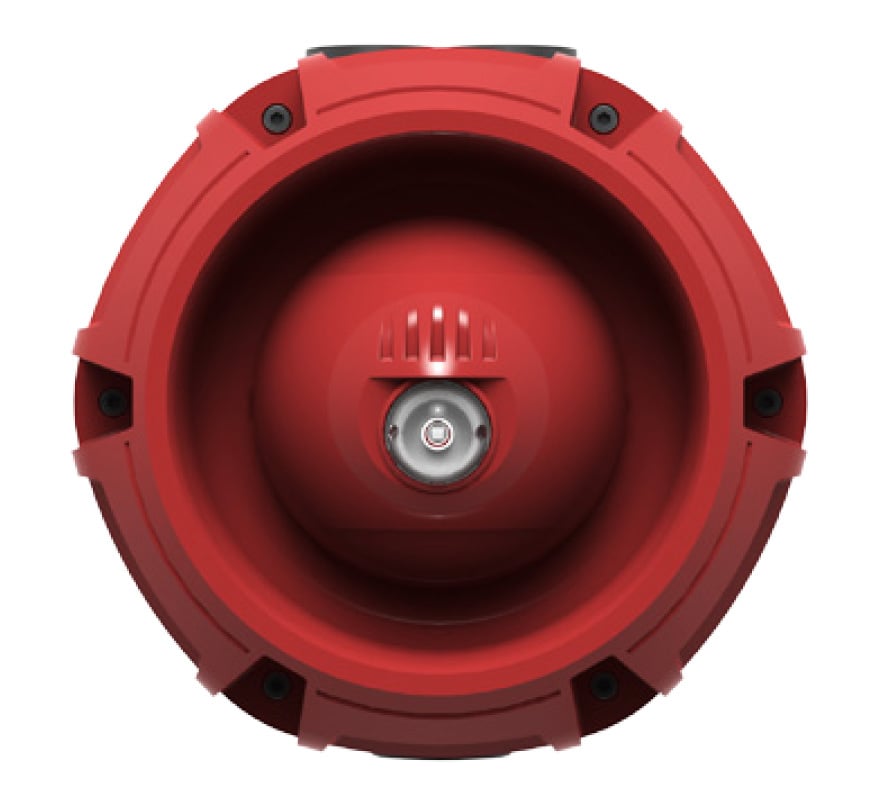

The Zeta Raptor ZRAPB/R is a red weatherproof addressable horn sounder with an integrated visual alarm device (VAD) beacon and white flash, for Zeta Fyreye MKII protocol addressable fire alarm systems. The beacon has a coverage pattern of W-3.0-8.7, flashing at 0.33Hz to 1.5Hz, and the sounder has 16 tones selectable at the control panel. It is designed for an "electronics free" first fix.
Key features
- Complies with EN54 part 3 Type B and EN54 part 23
- Beacon coverage: W-3.0-8.7
- 16 tone patterns (approved tones: Tone 0 and Tone 8)
- IP65 rating (certified to IP33C)
- Surface mounting only; UL V0 flame retardant ABS housing
- 3 x 20mm cable entries (2 top, 1 bottom)
Technical specifications
- Part number: 42-637
- Body colour: Red; flash colour: white
- Voltage: 17-28V DC
- Quiescent current: 1.5mA
- Alarm current: 18-43mA
- Flash frequency: 0.33Hz to 1.5Hz
- Sound output: 96.9dB ±3dB @ 1m (Tone 0, reverberant conditions)
- Operating temperature: -25°C to +70°C
- Size: 150 x 146 x 107.5mm
- Weight: 550g
